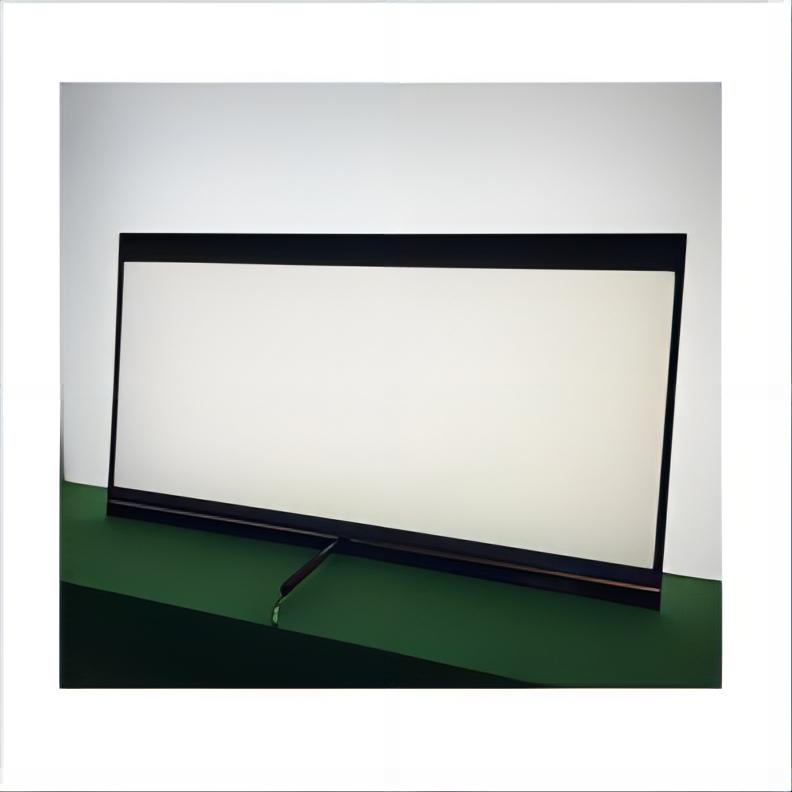

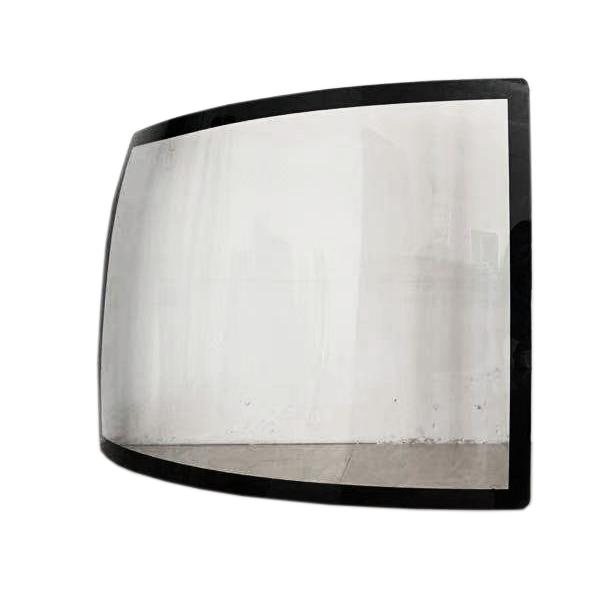

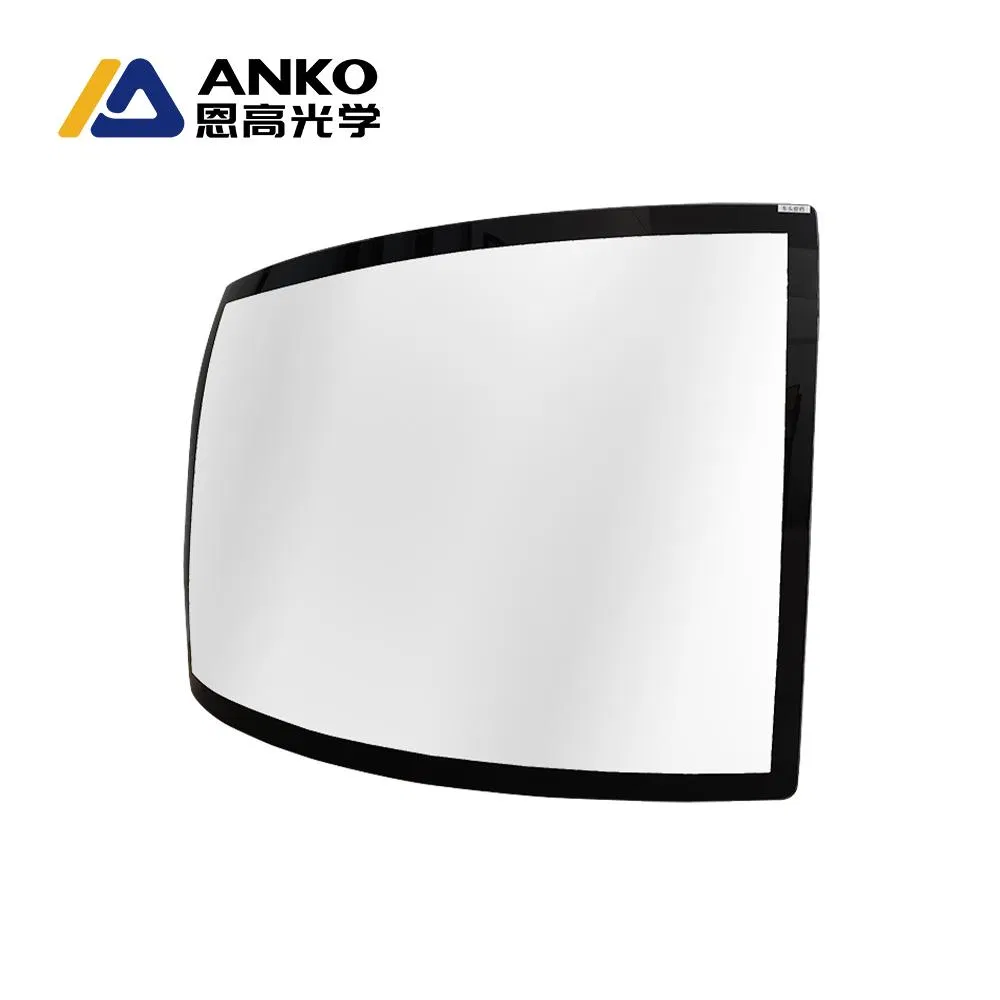

Pdlc Film with PC Polycarbonate Glazing Smart Glass

1 / 5

Pdlc Film with PC Polycarbonate Glazing Smart Glass

Customization:	Available
After-sales Service:	Online Service
Type:	Sunroof

Send Inquiry

Product Description

Basic Information

Model NO.

Dimming glass

Function

Frost Prevention, Anti Fog, Anti Icing, Anti-UV & Glare

Glass Composition

Polycarbonate

Certification

ECE, DOT, ISO

Glass Type

Safety Glass

Mgnt Certification

ISO/TS16949

Main Market

North America

Density

1.2g/cm3

UV Coating

One Side or Both Sides

Hard Coating

One Side or Both Sides

Color

Transparent, Grey, Black and So on

Size

Customized

Product Description

⚖️

1. Save up to 45% weight

Extended driving range, safety and energy efficiency. Internal combustion vehicles will be abandoned in the coming decades. Alternative forms of energy such as electricity will increasingly be used to power vehicles. For this reason, there is a desire to make vehicles even lighter, and high-performance plastics offer excellent glazing solutions for this purpose.

🛡️

2. Outstanding impact strength

Polycarbonate is the best solution for safety and durability. The hardness and resistance of polycarbonate safety glazing protects against stone chips, projectile impacts or acts of vandalism. At equal thickness, it is 250 times stronger than standard glass.

Application Areas

Polycarbonate protective glazing suited to motorsports, eVTOL, RV window, agricultural, heavy equipments and vehicles.

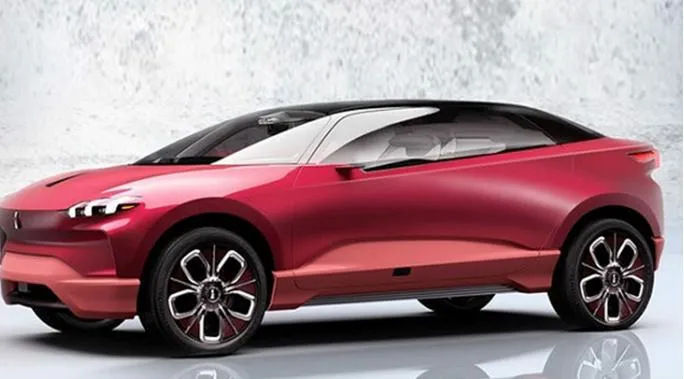

Front, Side, and Rear Vehicle Windows
Sunroof & Hatch Lid Windows
Protective Face Shields
Formed Architectural Glazing
Advertising lightbox & Signboards
Agriculture greenhouses & sheds
Ceiling material for canopies

PROJECT SHOWCASE

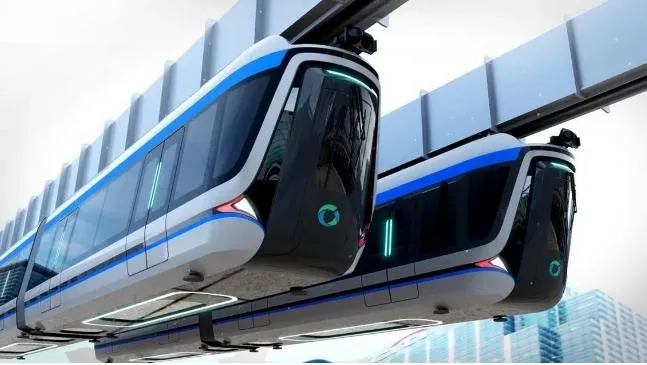

270° Transparent Rail Train

Size: L:30m * W:5m * H:5m

Full body PC material coverage
Spherical front shape
Super large-size hyperboloid transparent window
Weather-resistant hardened layer

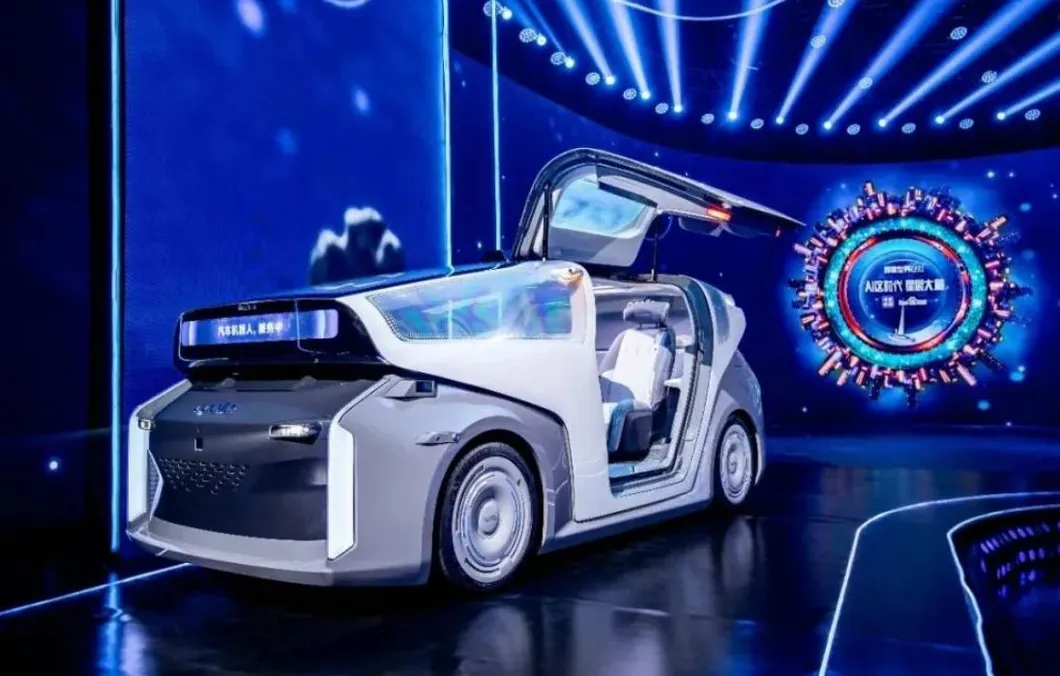

Autodriving Robot - Integrated Cover

The world's first integrated PC cover for both window and body.

Streamlined body shape fit
Color and pattern customization
Color-changing window function for privacy
Does not block Internet signal transmission

City Air Train

Full body PC transparent products
Max double curved glass: 1.7m * 1.2m
Curvature height difference: 450mm
Weatherproof hard coating

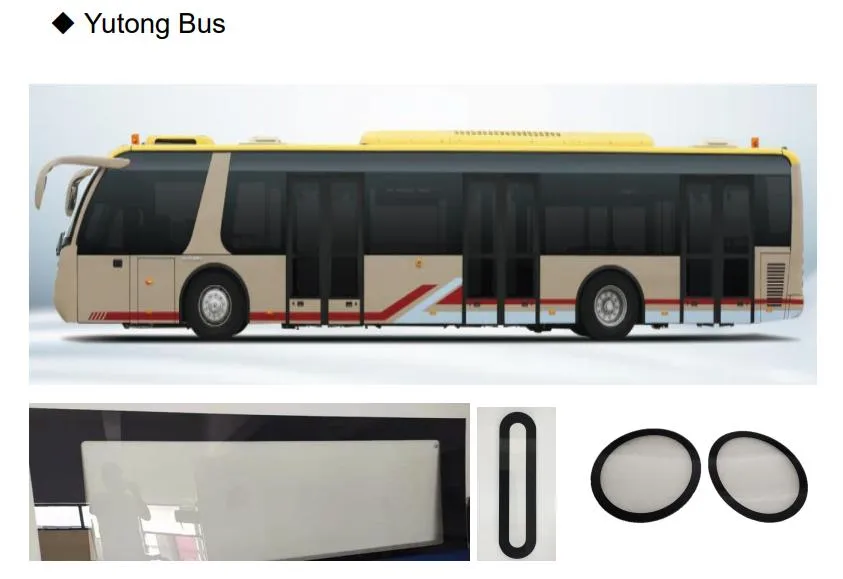

Bus Solutions

Full glazing: Front windshield, doors, windows, and skylights
Significant weight reduction for extended mileage
Reduced fuel and energy consumption

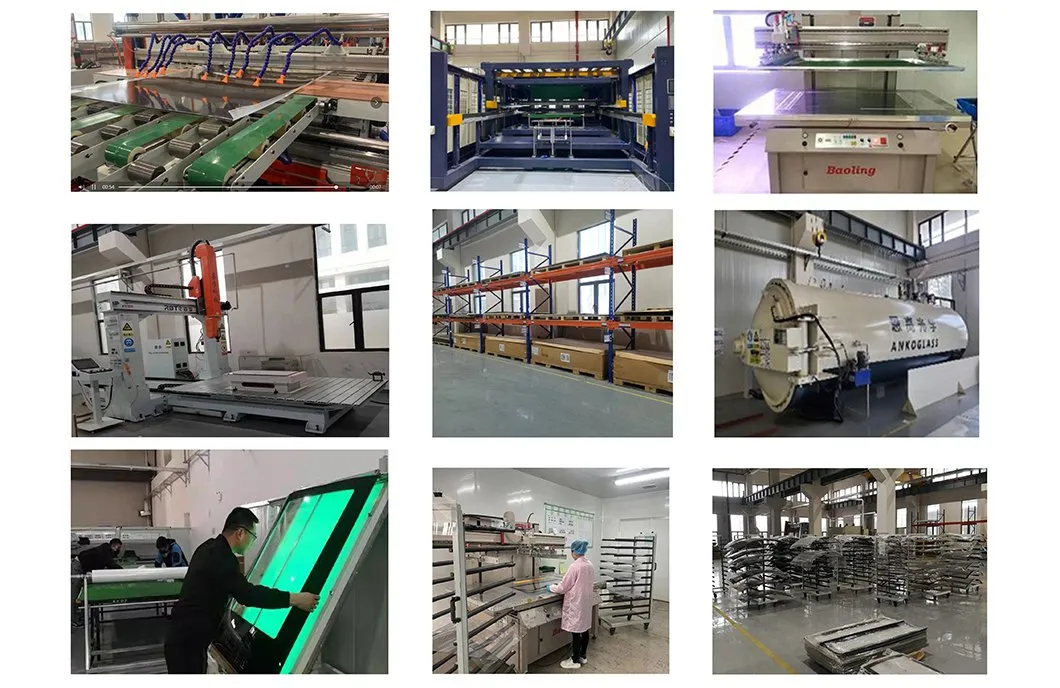

Manufacturing Capabilities

We provide professional customized polycarbonate sheet processing services, including machining, carving, laser cutting, saw cutting, bending, welding, polishing, milling, drilling, trimming, thermoforming, and silk screen printing.

First in China to pass ECE R43 automotive plastic glass certification
Contributor to National safety standards (GB-9656)
21+ Technical Patents
ISO9001, IATF16949, and DOT certified

Technical Specifications

Category	Property	Value	Unit	Test Method
Physical	Density	1.2	g/cm³	ISO 1183
Physical	Haze (T=3mm)	<0.8	%	ISO 14782
Physical	Light Transmission	89	%	ISO 13468-2
Mechanical	Flexural Strength	98	Mpa	ISO 178
Mechanical	Tensile Modulus	2400	Mpa	ISO 527
Weathering	Anti-UV @380nm	<0.1%	-	-
Safety	Flammability	HB	-	UL94

Frequently Asked Questions

Why choose Polycarbonate over traditional glass for vehicles?

Polycarbonate offers up to 45% weight reduction, which significantly improves fuel efficiency and driving range. It is also 250 times stronger than standard glass, providing superior impact resistance.

What certifications do your polycarbonate products hold?

Our products are fully certified according to ECE R43 (European automotive plastic glass safety), DOT, and ISO/TS16949 standards, ensuring global compliance for automotive use.

Can the windows be customized for specific shapes?

Yes, we specialize in high-precision thermoforming and can produce complex shapes, including spherical locomotive heads and hyperboloid transparent windows up to 450mm curvature height difference.

Does the material offer protection against UV and weather?

Absolutely. Our polycarbonate glazing includes a weather-resistant hardened layer and provides 99% UV blocking, protecting both the passengers and the vehicle interior from sun damage.

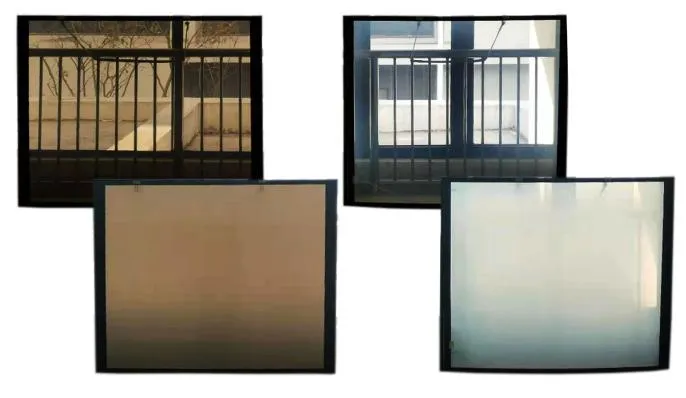

Is it possible to have smart dimming functions?

Yes, we offer PC Dimming Windows with 80% light transmittance and millisecond response times, allowing for electronic privacy control and heat isolation.

What processing services do you offer?

We provide a full range of processing services including laser cutting, carving, bending, welding, silk screen printing, and complex thermoforming to meet specific design requirements.
