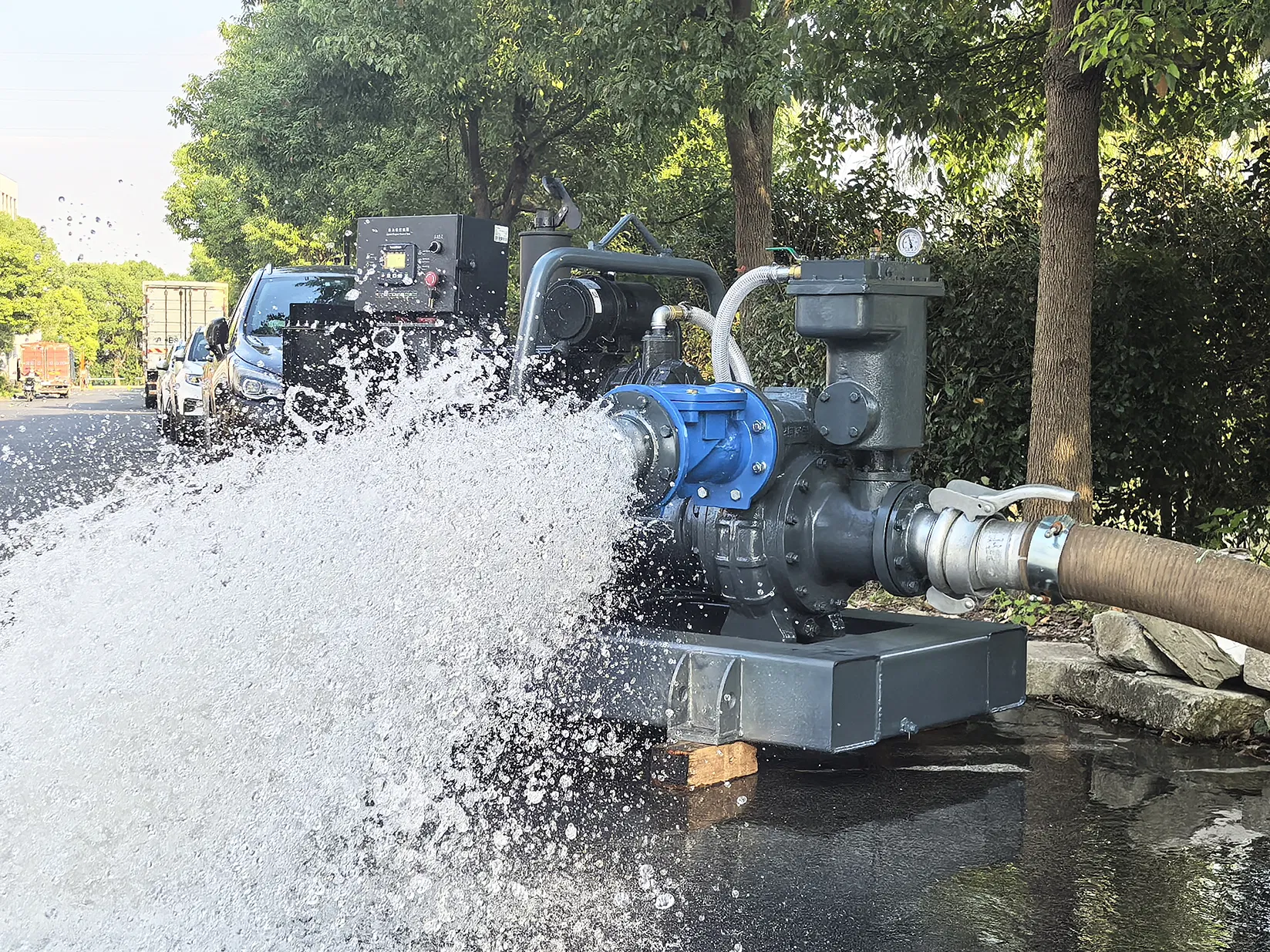

Equipped with a fully enclosed sound-attenuated canopy featuring high-density acoustic foam and scientific airflow design. Reduces operating noise to 68dBA at 7 meters.
Features a large 6-inch inlet/outlet design with specialized open impeller. Easily passes solids up to 76mm (3 inches) in diameter and long fibrous debris without clogging.

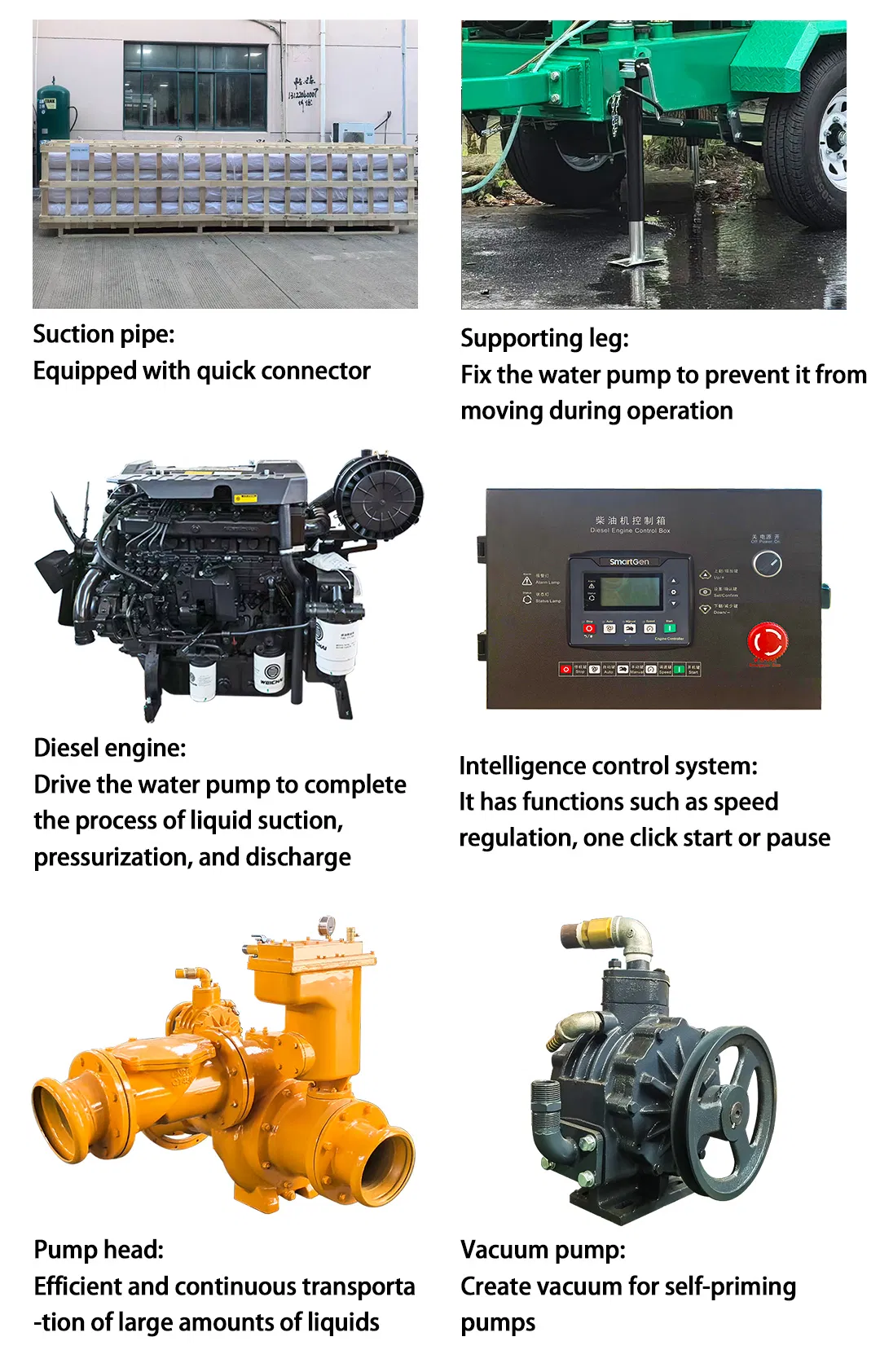

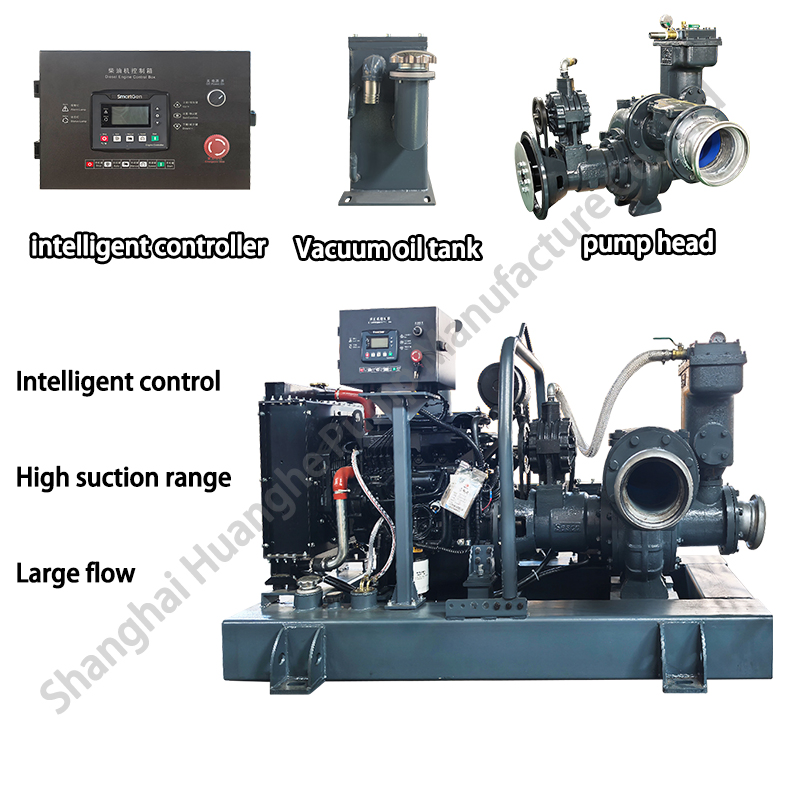

Driven by high-performance 4-stroke diesel engines (Cummins, Deutz, or premium brands). Features high torque, low fuel consumption, and supports 8-10 hours of continuous running.
High-strength iron body with hardened impeller for wear resistance. Unique self-priming design requires no foot valve. Quick-access cover allows easy debris removal.
Digital gauges monitor oil pressure, temperature, and RPM in real-time. Features automatic shutdown protection to prevent engine damage.
| Machine Performance | |
|---|---|
| Type | Trailer mounted, stationery, closed, open type |
| Max Flow | 500 m³/h |
| Max Head | 44m |
| Suction Height | 9m |
| Diesel Engine Parameters | |
| Recommended Brands | Cummins, Weichai, Yuchai |
| Power | >36kw |
| Speed | 1500~2000rpm |
| Pump Parameters | |
| Inlet / Outlet | 6 inch |
| Max Particle Size | 76mm |
| Material | Cast Iron / Stainless Steel |
Notes: We provide a wide range of parameters. Please contact us for more specific requirements.

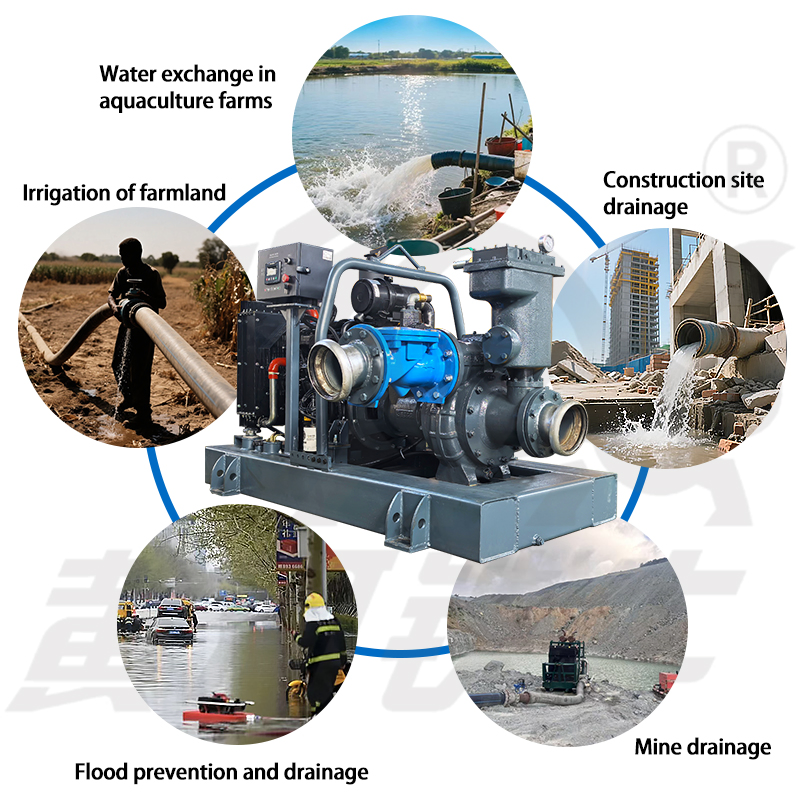

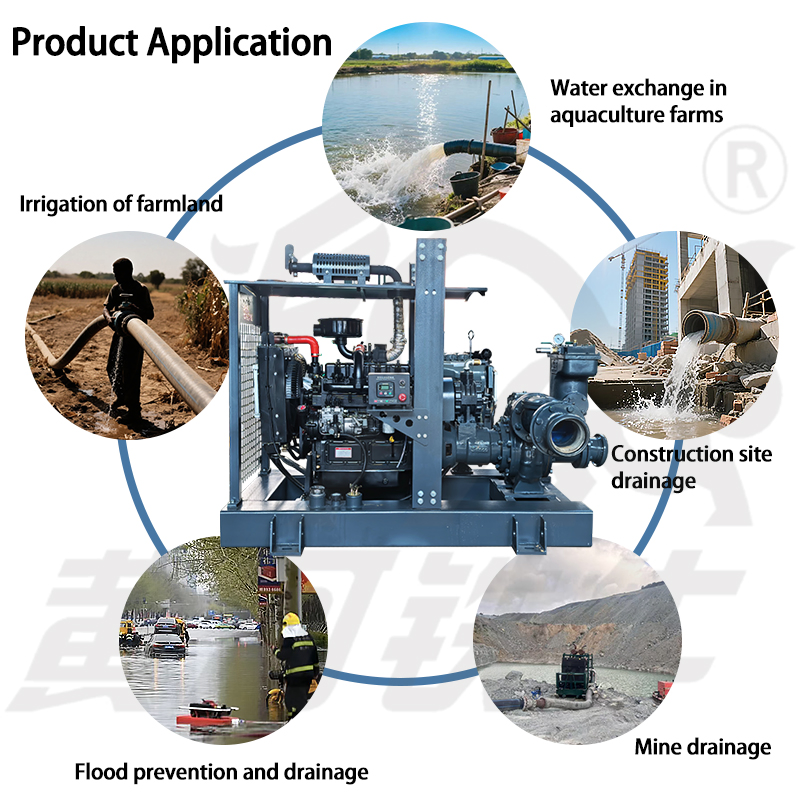

Our product range includes flood control mobile pumps, marine seawater centrifugal pumps, farmland irrigation pumps, and mine flushing pumps.
