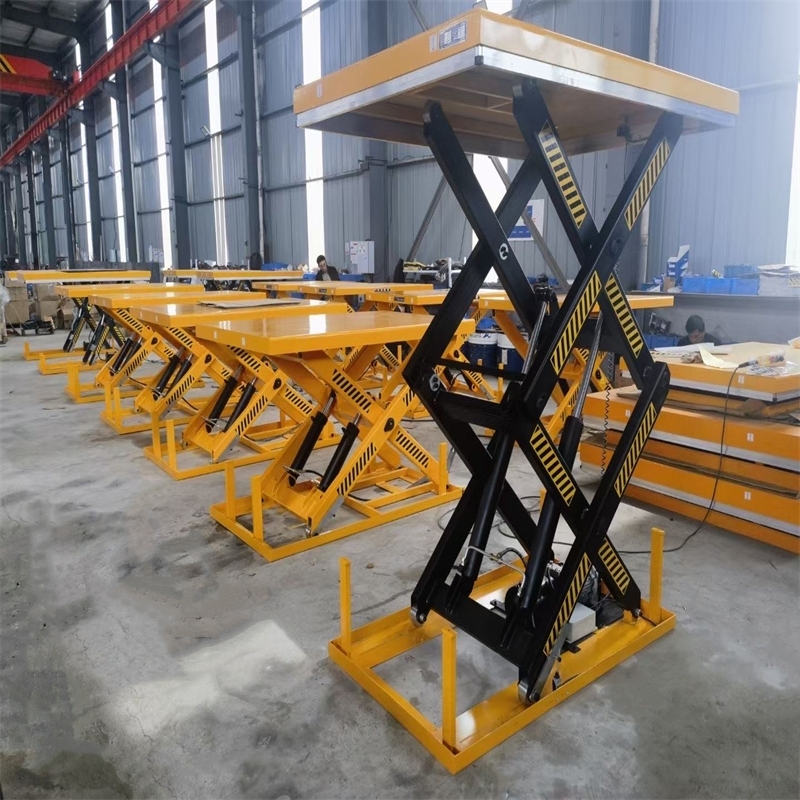

1000kg 2000kg 4000kg Chinese Factory Stationary Lift Table Electric Scissor Lift Fixed Single Scissor Lifting Platform Electric Hydraulc Lift Table Hw1006
1000kg 2000kg 4000kg Chinese Factory Stationary Lift Table Electric Scissor Lift Fixed Single Scissor Lifting Platform Electric Hydraulc Lift Table Hw1006
1000kg 2000kg 4000kg Chinese Factory Stationary Lift Table Electric Scissor Lift Fixed Single Scissor Lifting Platform Electric Hydraulc Lift Table Hw1006
1000kg 2000kg 4000kg Chinese Factory Stationary Lift Table Electric Scissor Lift Fixed Single Scissor Lifting Platform Electric Hydraulc Lift Table Hw1006
1000kg 2000kg 4000kg Chinese Factory Stationary Lift Table Electric Scissor Lift Fixed Single Scissor Lifting Platform Electric Hydraulc Lift Table Hw1006
1 / 5
1000kg 2000kg 4000kg Chinese Factory Stationary Lift Table Electric Scissor Lift Fixed Single Scissor Lifting Platform Electric Hydraulc Lift Table Hw1006
1000kg 2000kg 4000kg Chinese Factory Stationary Lift Table Electric Scissor Lift Fixed Single Scissor Lifting Platform Electric Hydraulc Lift Table Hw1006
1000kg 2000kg 4000kg Chinese Factory Stationary Lift Table Electric Scissor Lift Fixed Single Scissor Lifting Platform Electric Hydraulc Lift Table Hw1006
1000kg 2000kg 4000kg Chinese Factory Stationary Lift Table Electric Scissor Lift Fixed Single Scissor Lifting Platform Electric Hydraulc Lift Table Hw1006
1000kg 2000kg 4000kg Chinese Factory Stationary Lift Table Electric Scissor Lift Fixed Single Scissor Lifting Platform Electric Hydraulc Lift Table Hw1006

1000kg 2000kg 4000kg Chinese Factory Stationary Lift Table Electric Scissor Lift Fixed Single Scissor Lifting Platform Electric Hydraulc Lift Table Hw1006

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
HW1001, HW2001, HW4001 series
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Scissor Lift
Carrying Capacity
1000kg - 4000kg
Driven Type
AC (380V/50Hz)
Certification
CE, ISO 9001
Min. Lifting Height
205mm
Max. Lifting Height
1300mm
HS Code
84279000
Production Capacity
600 PCS/Month

Stationary Electric Scissor Lift Table

Stationary Lift Table Header

Our 1000kg to 4000kg stationary lift tables are designed for heavy-duty industrial applications, providing a stable and efficient single scissor lifting platform for warehouses and workshops.

Key Features

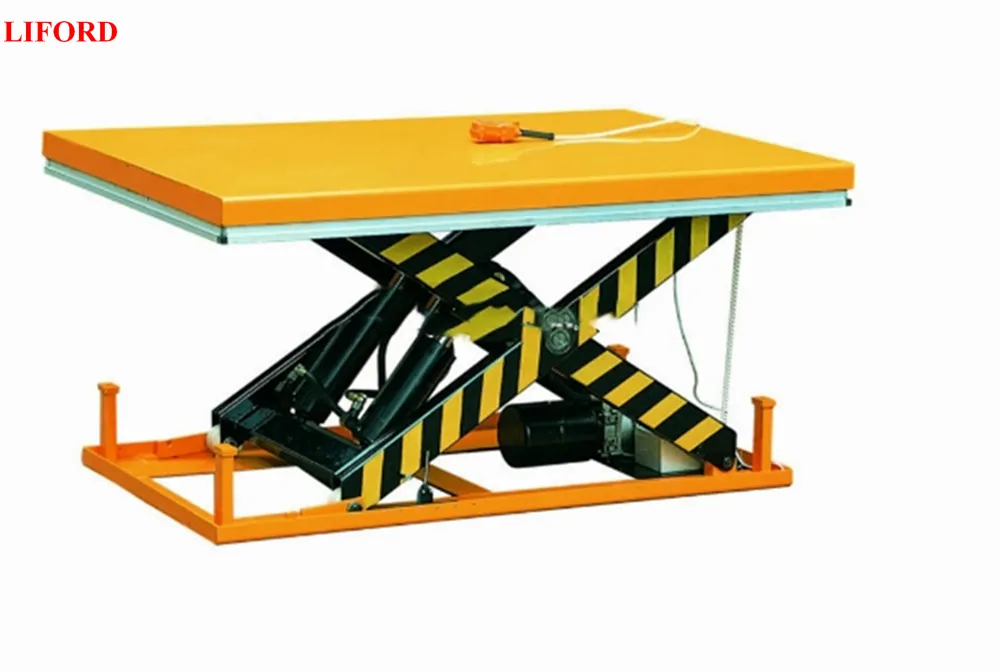

Product View 1
Product View 2
🔘
Heavy Duty Design: 1000-4000kg capacity with a strong structure for steady performance.
🔘
High-Quality Pump Station: Ensures smooth and consistent lifting operations.
🔘
Safety First: Equipped with anti-pinch functionality and overload protection.
🔘
Flow Control: External power pack includes a relief valve and a compensated flow valve for speed control.
🔘
Perimeter Safety: Upper platform fitted with safety perimeter to stop descent upon contact with obstructions.

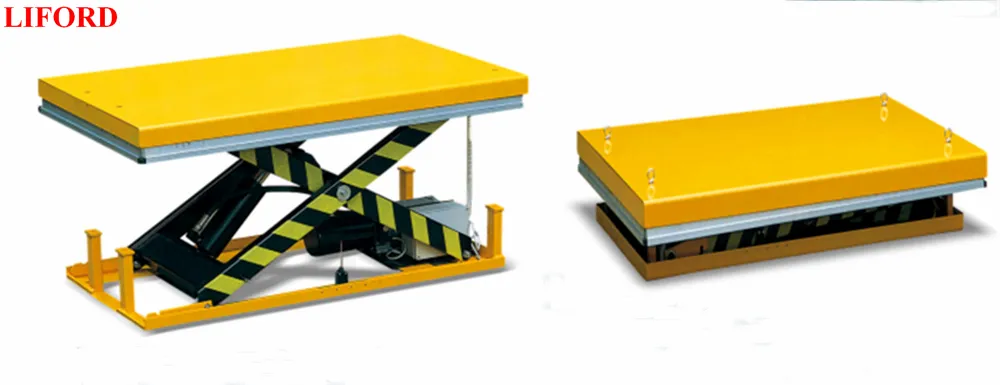

Component Detail 1
Component Detail 2
Component Detail 3

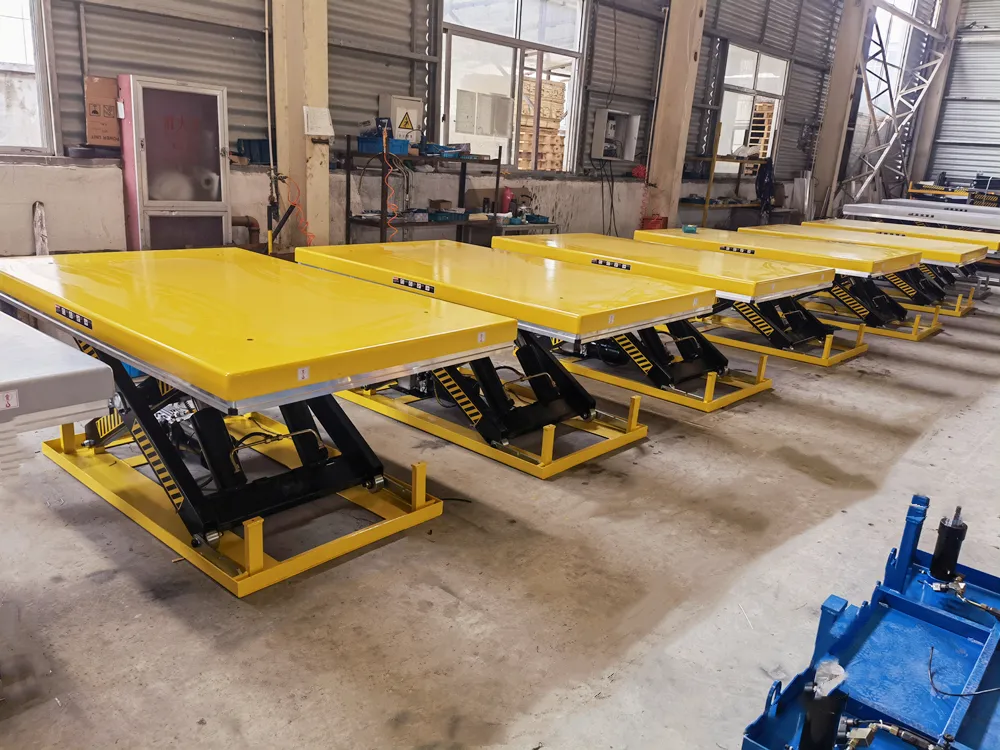

Usage Scenario 1

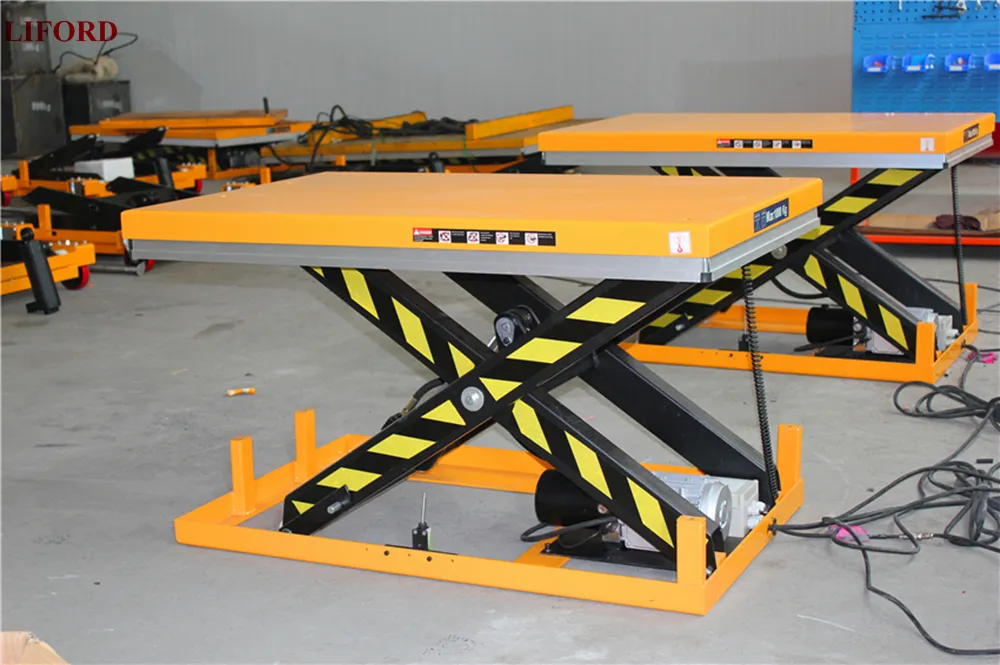

Usage Scenario 2

Technical Data

Model Capacity (kg) Platform Height Min/Max (mm) Platform Size (mm) Lift Time (s) Net Weight (kg)
HW10011000205/9901300*82020~25160
HW10061000240/13002000*100030~35223
HW20012000230/10001300*85020~25235
HW20042000250/13001700*100025~35300
HW40014000250/14001700*120030~40375
HW40084000300/14002200*180035~45655

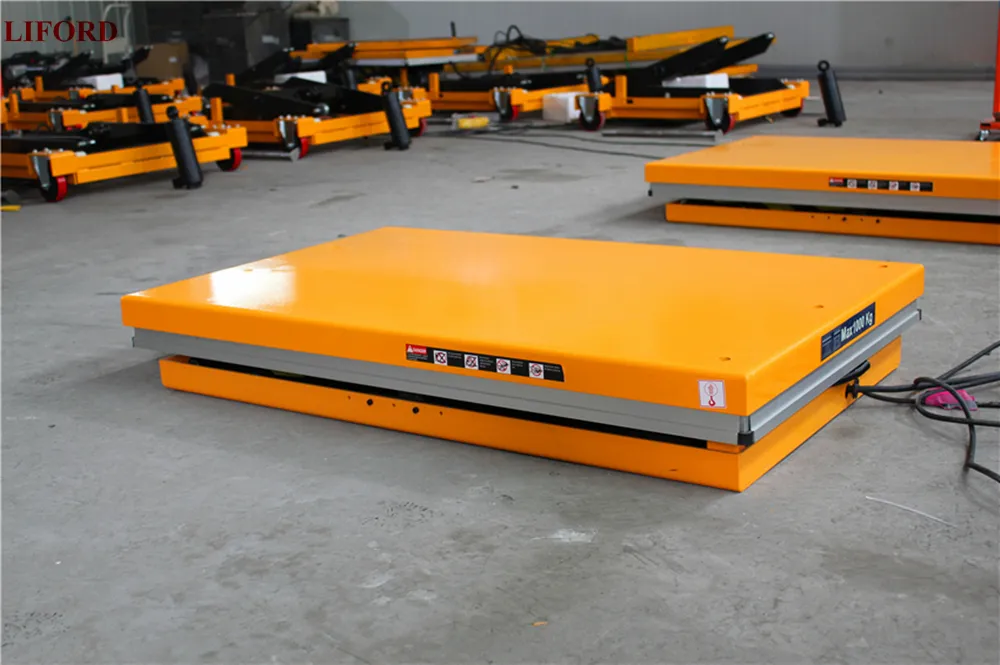

Technical Drawing 1

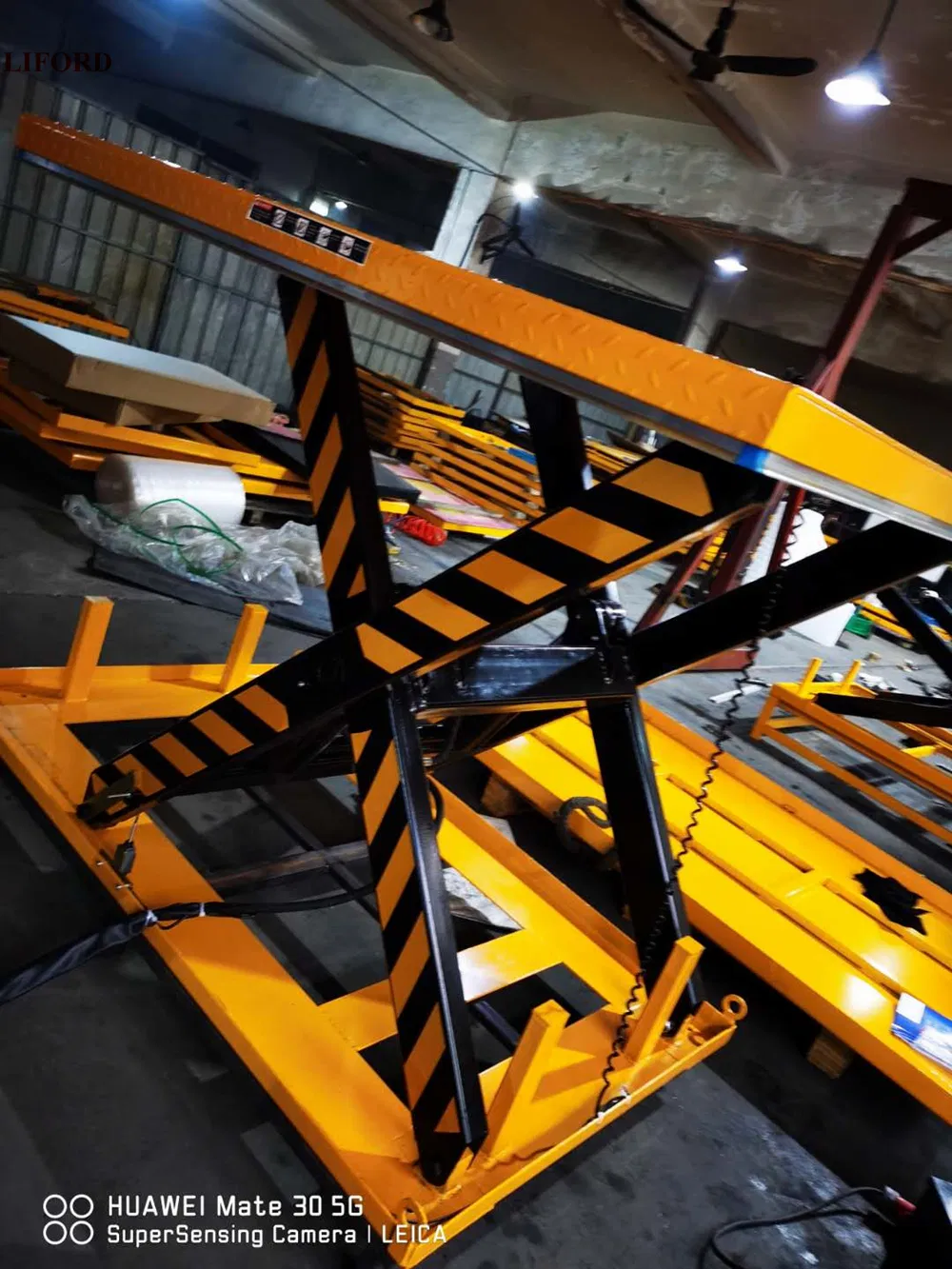

Technical Drawing 2

Why Choose Our Lifting Solutions?

Factory Quality
Factory Production
✔️
10+ Years Experience: Professional expertise in material handling equipment.
✔️
Fast Delivery: Efficient production cycles to ensure your project stays on schedule.
✔️
Custom OEM/ODM: Design and production of non-standard parts based on specific needs.
✔️
100% Inspection: All products undergo rigorous testing before shipment.
✔️
Robust Packaging: Strong pallets and cartons used for both air and sea delivery.

Packaging & Delivery

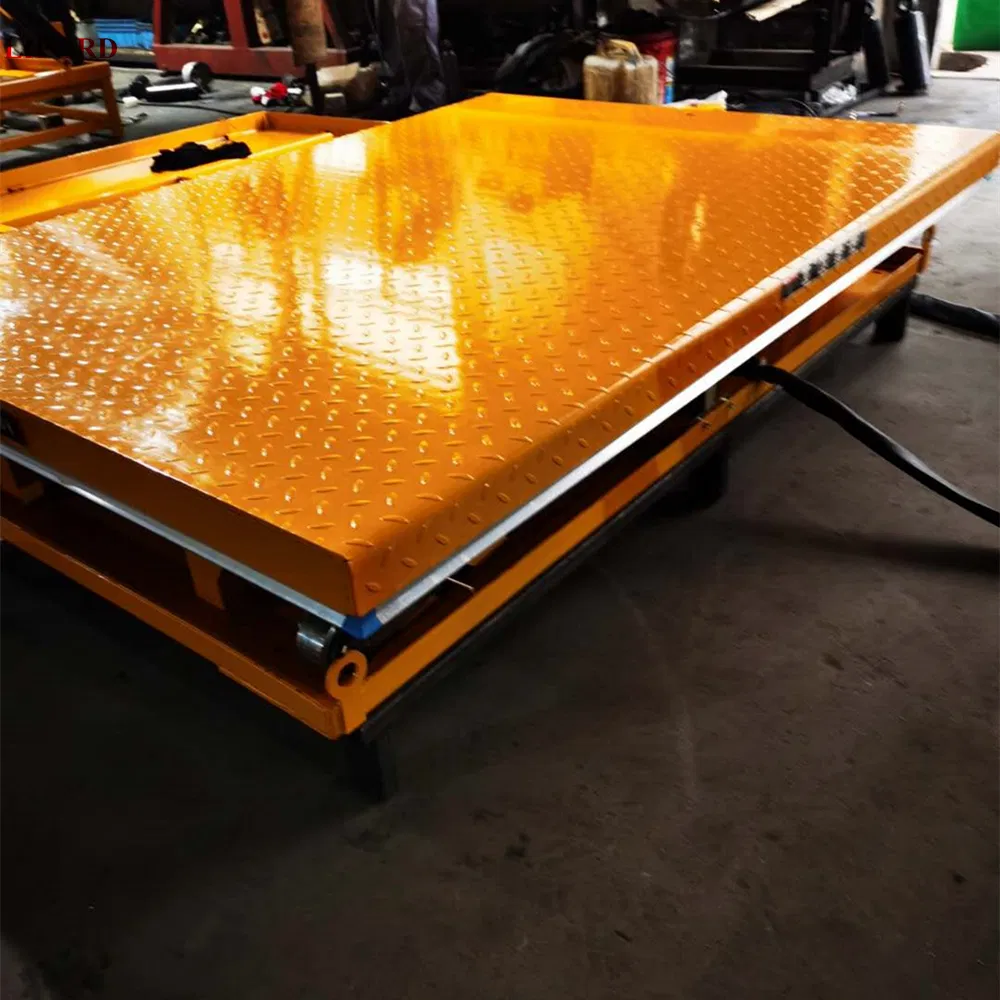

Packing 1
Packing 2
Packing 3

Frequently Asked Questions

What is the load capacity range for these lift tables?
Our stationary lift tables support a wide range of capacities from 1000kg up to 4000kg, depending on the specific model selected.
What safety features are included in the design?
Safety is a priority. Features include anti-pinch functionality, overload protection, a safety perimeter on the upper platform, and a compensated flow valve for controlled lowering speeds.
Can the platform size be customized?
Yes, we offer OEM and ODM services. We can design and produce non-standard platform sizes and specifications tailored to your specific industrial requirements.
What power supply is required for operation?
The standard power requirement for the stationary electric scissor lift tables is AC 380V / 50Hz.
How are the products protected during international shipping?
For sea delivery, products are packed in strong cartons and secured on heavy-duty pallets. For air delivery, we use reinforced cartons with packing belts to ensure perfect arrival condition.
Are these lift tables certified for global use?
Yes, all our stationary lift tables carry CE and ISO 9001 certifications, ensuring they meet international quality and safety standards.
