ℹ️ Basic Info.
Emission Standard
Euro 4-6
Transport Package
Shipping
📋 Technical Parameters
| DMT5038XYCL 2-AS Bulletproof Cash In Transit Car Technical Parameters |
| Model | DMT5038XYCL 2-AS |
| Chassis Model | BJ5039XXY- M2 |
| Internal Enterprise Number | BBB1 (low ceiling), BBB2 (high ceiling) |
| Driving Forms | 4×2 |
| Vehicle Exterior (L x W x H) | 4860/4940/5000/5080 × 1695 × 2270 (high top) / 2010 (low roof) mm |
| Transport Cabin (L x W x H) | 1360 × 1500 × 1300 (low roof) / 1550 (high roof) mm |
| Bales Volume | 2.6 m³ (low) / 3.1 m³ (high) |
| Vehicle Trim Mass | 2100 Kg |
| Maximum Total Mass | 2790 kg |
| Rated Load Mass | 690 kg |
| Occupants | 2+3 persons |
| Engine Type | 4K22D4M inline 4-cylinder, liquid-cooled, electronically injected gasoline engine |
| Displacement | 2.378 L |
| Rated Power | 118 Kw / 5500 r/min |
| Maximum Torque | 230 Nm / 4000-4400 r/min |
| Wheelbase | 2570 mm |
| Top Speed | 150 Km/h |
| Tyre Size | 195/70R15LT / 195R15C |
⚙️ Configuration Table
| Configuration Item |
Status |
Details |
| Radial ply tyre | Standard | - |
| Power-assisted steering | Standard | - |
| Air conditioning & Warm air system | Standard | Front and rear |
| ABS+EBD | Standard | - |
| Remote central control door lock | Standard | - |
| On-board HD DVR (720P) | Standard | 6 cameras: front, rear, cockpit, cash cabin, sides |
| Two-way voice intercom | Standard | Includes emergency alarm |
| 4G Image Transmission & GPS | Standard | Networked with monitoring center |
| Front wheel emergency explosion-proof | Standard | - |
| Manual Sunroof | Standard | With lock mechanism |
| Partition wall sliding door | Standard | Mechanical pin included |

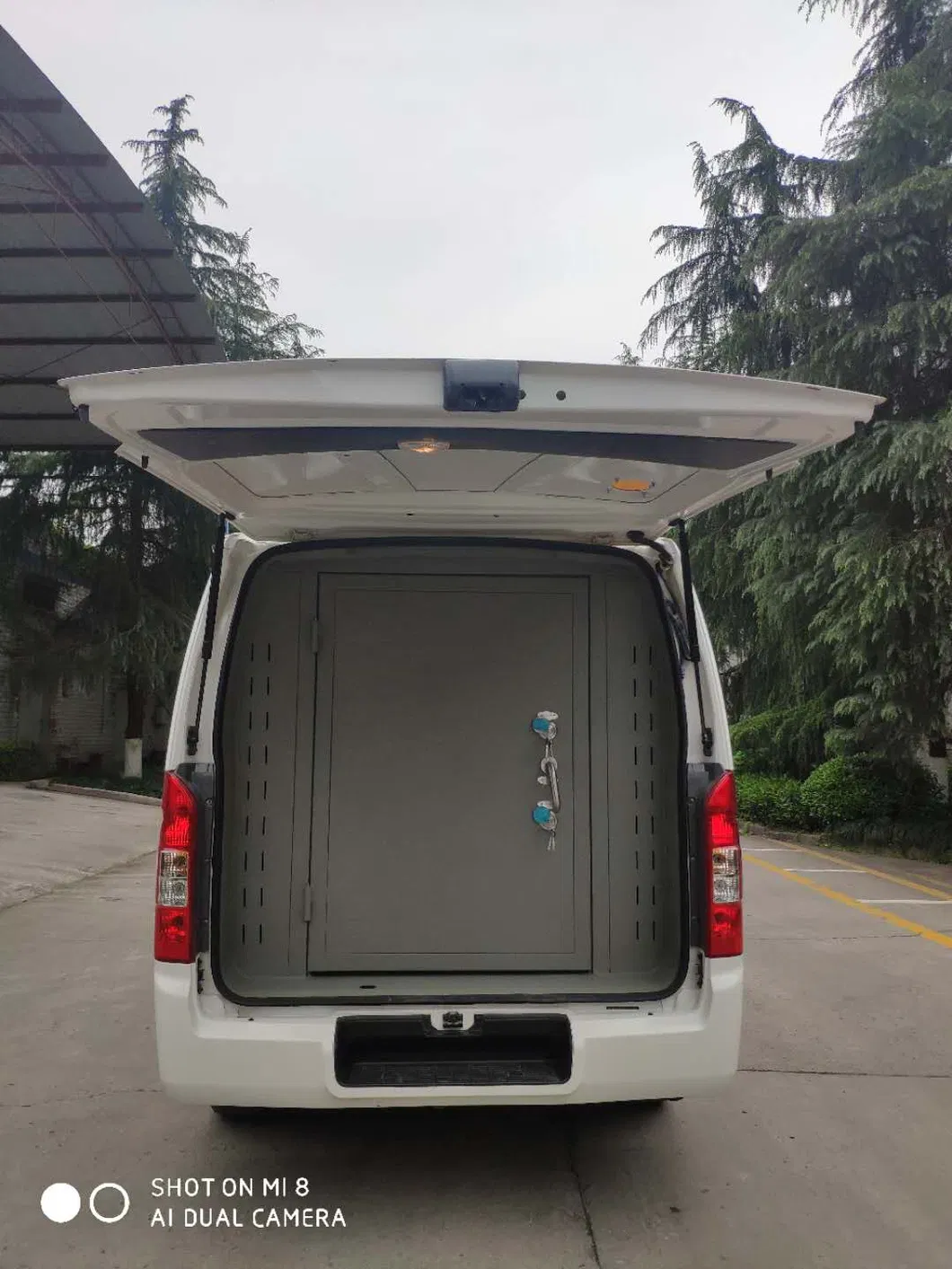

| Triple Directional Lock | Standard | Rear door sky and ground lock structure |
| Parking Distance Control (PDC) | Optional | ★ |
| 1080P Digital HD Monitoring | Optional | ★ |
| Power Sunroof | Optional | ★ |
| 100W Megaphone | Optional | ★ |
| Dermal Seat & Seating Covers | Optional | ★ |
Note: Items marked with ★ are optional configurations.

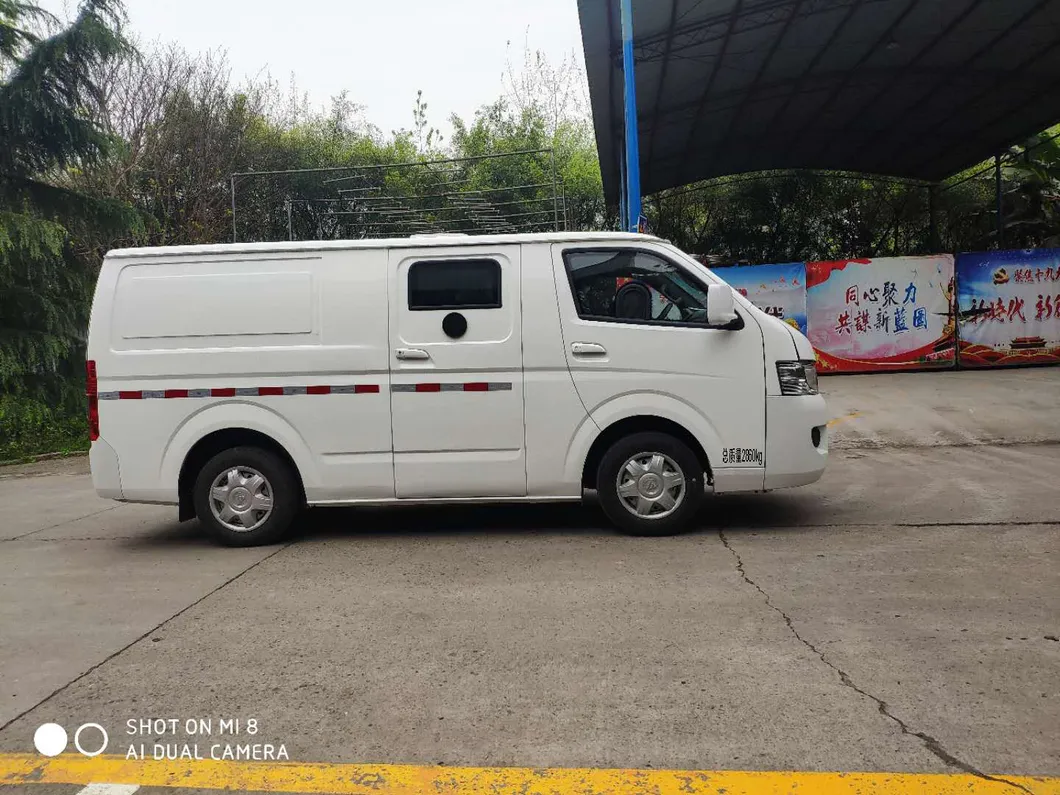

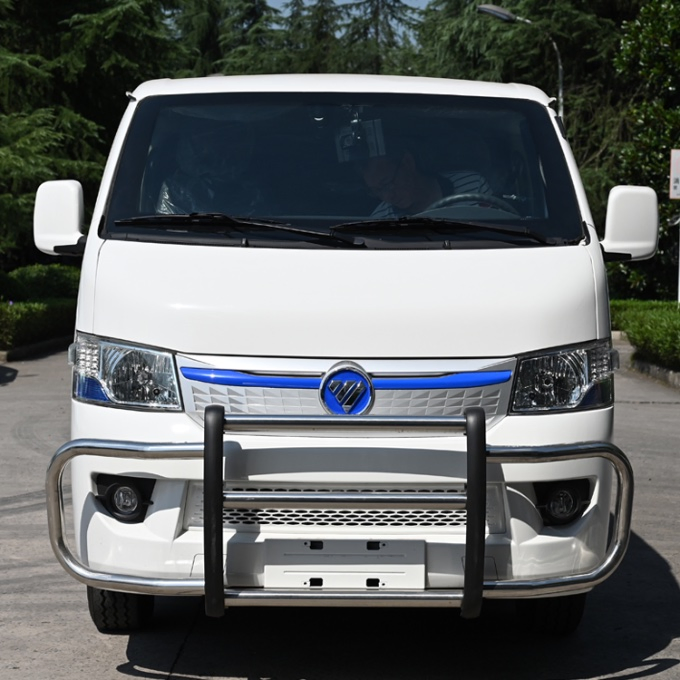

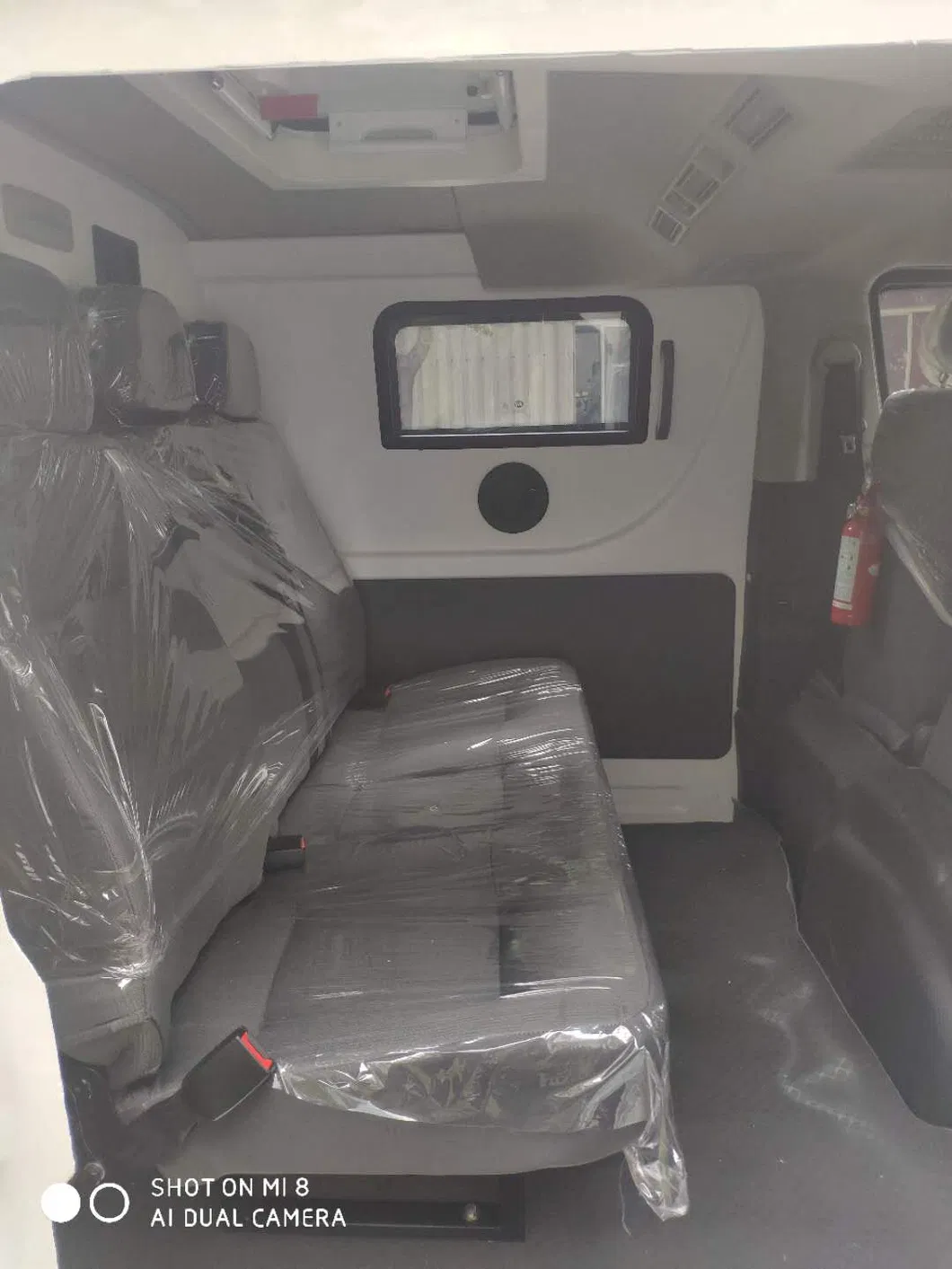

🖼️ Product Visuals
❓ Frequently Asked Questions
Q1: What is the ballistic protection level of this vehicle?

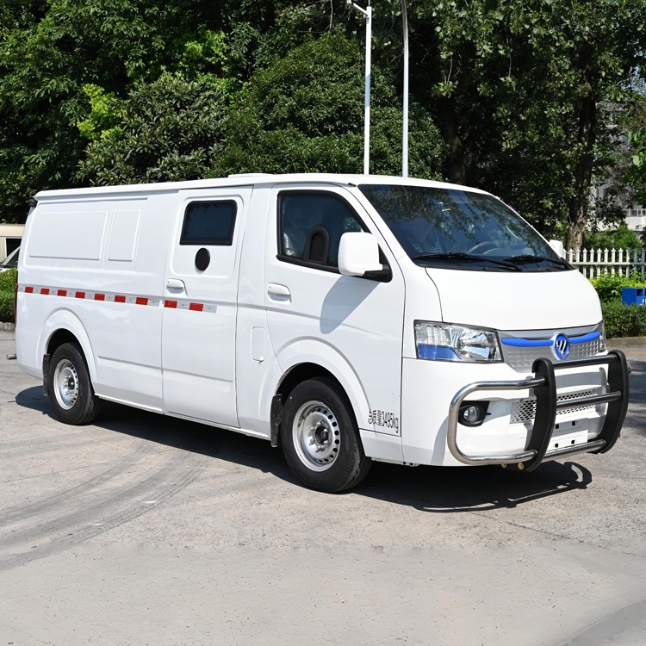

The DMT-VAN cash-in-transit vehicle is designed with a B4 protection level, providing reliable security for valuable cargo.
Q2: How many people can the vehicle accommodate?
The driving room and escort compartment can carry a total of 5 occupants (2 in front + 3 in the transport cabin).
Q3: Does the vehicle include a monitoring system?
Yes, it comes standard with an on-board HD DVR system featuring six cameras that monitor the front, rear, cockpit, cash cabin, and both sides of the vehicle.
Q4: What are the main safety features of the chassis?
The vehicle is equipped with ABS+EBD, power-assisted steering, and an emergency explosion-proof device for the front wheels.
Q5: Is the vehicle suitable for long-distance transport?
With a top speed of 150 Km/h, a powerful 2.378L gasoline engine, and a 2.6-3.1 m³ cabin volume, it is highly efficient for various transit distances.
Q6: Are there any communication tools built into the vehicle?
The vehicle includes a two-way voice intercom, 4G image transmission, and GPS satellite positioning for real-time networking with monitoring centers.
