Special PVB acoustic film by brands like Kuraray and Trosifol is used. This monolayer film product combines outstanding sound protection properties with all the advantages of conventional Acoustic PVB film. Even in monolithic laminated safety glass, it reveals exceptional sound protection performance.
The highly sound insulating PVB inter-layers are laminated between glass panels using heat and pressure, creating a unit with a lower overall Rw value. This reduces the 'critical frequency' effect, ensuring no dip in performance for specific sound frequencies and increasing overall sound insulation.
This PVB is designed with acoustic dampening properties, working against frequencies between 1500 and 5000 Hz.

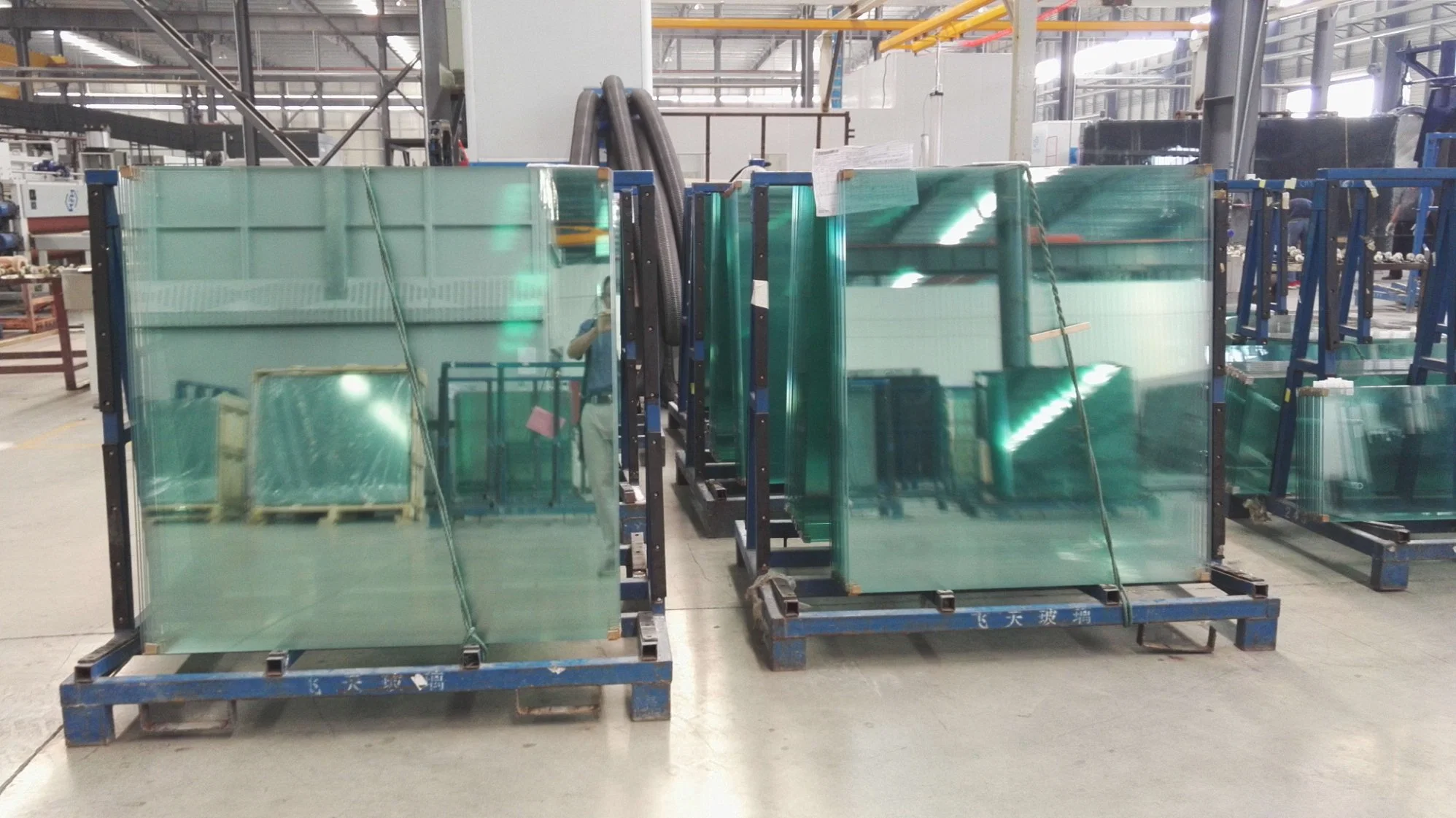

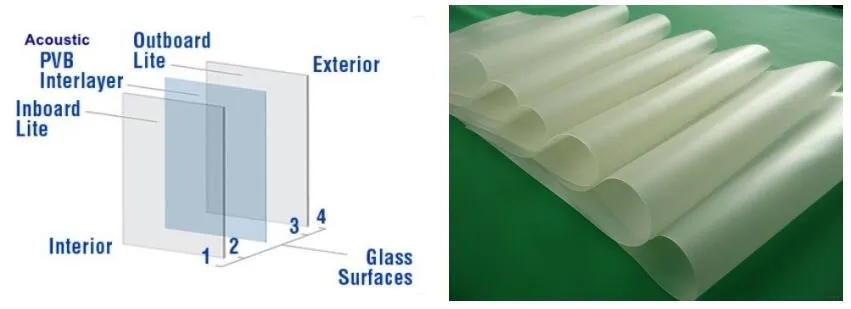

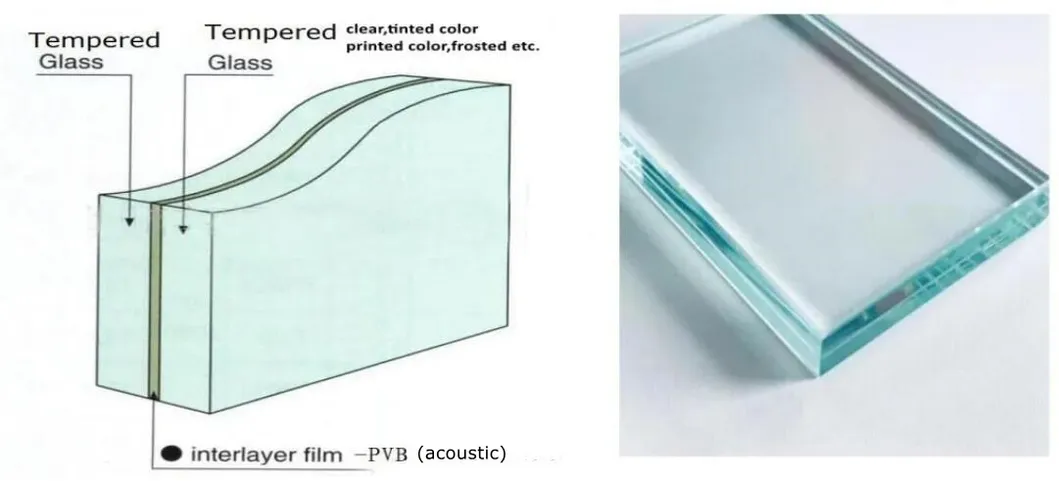

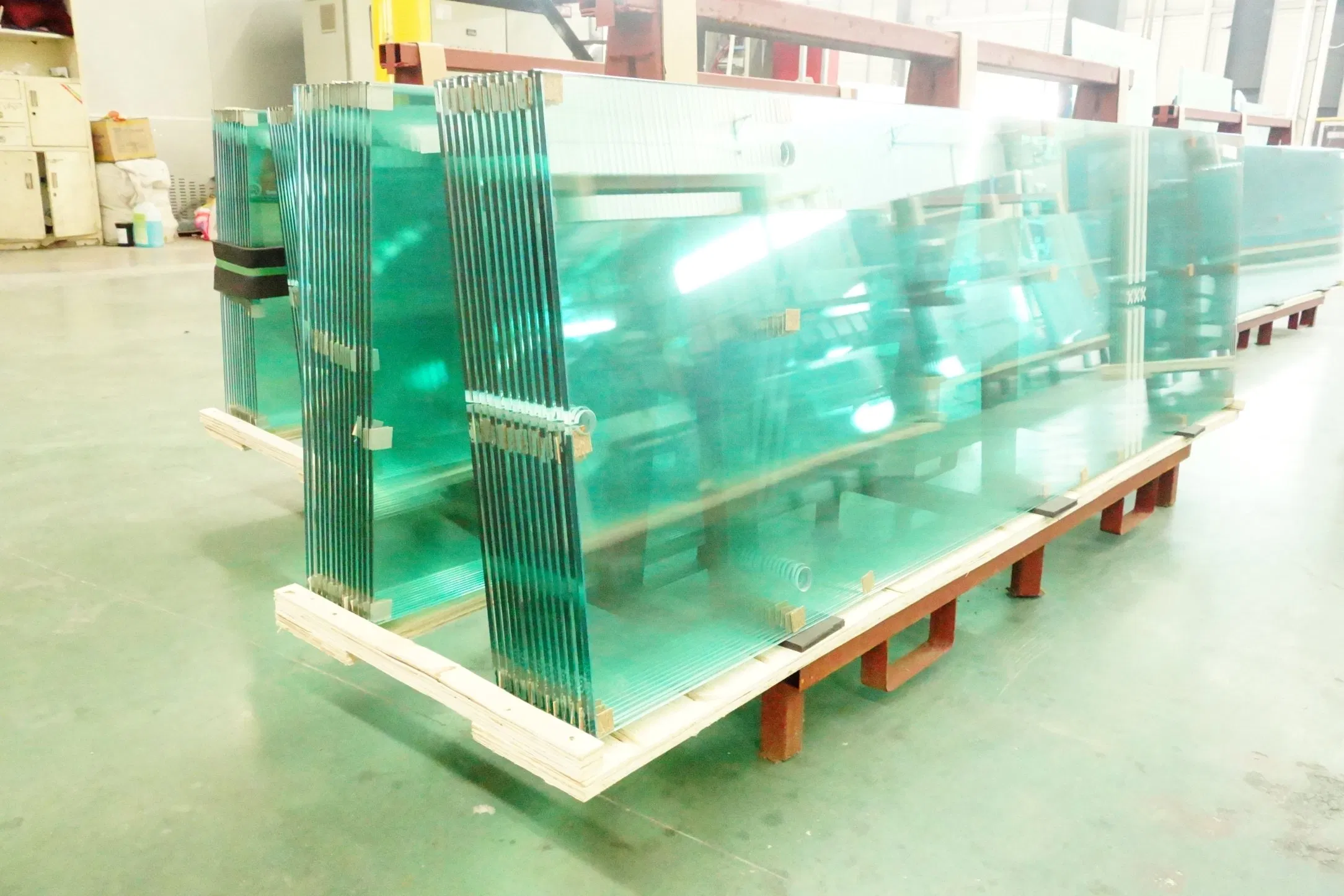

Made by laminating acoustic PVB films between two or more layers of glass. It is a type of safety glass that holds together when shattered; the fragments adhere to the film, preventing injury.
| Glass thickness | 3+3, 4+4, 5+5, 6+6, 8+8, 10+10, 12+12, 5+5+12, 6+6+12 etc. |
| Acoustic PVB | 0.76mm, 1.14mm, 1.52mm, etc. Brand: Kuraray, Trosifol, Dupont, Solutia, Sekisui |

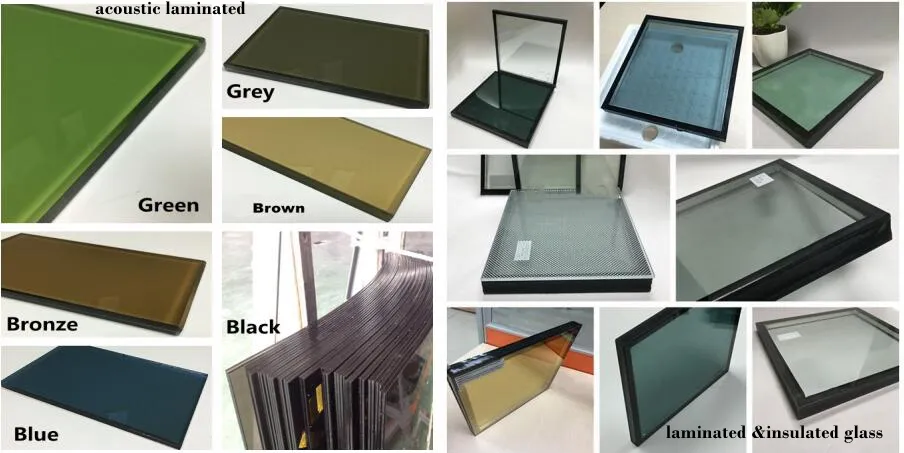

| Glass color | Clear, bronze, grey, green, blue, customized color and patterns |
| Glass type | Raw float, tempered, reflective, Low-E, Nano, color tinted, pattern glass etc. |

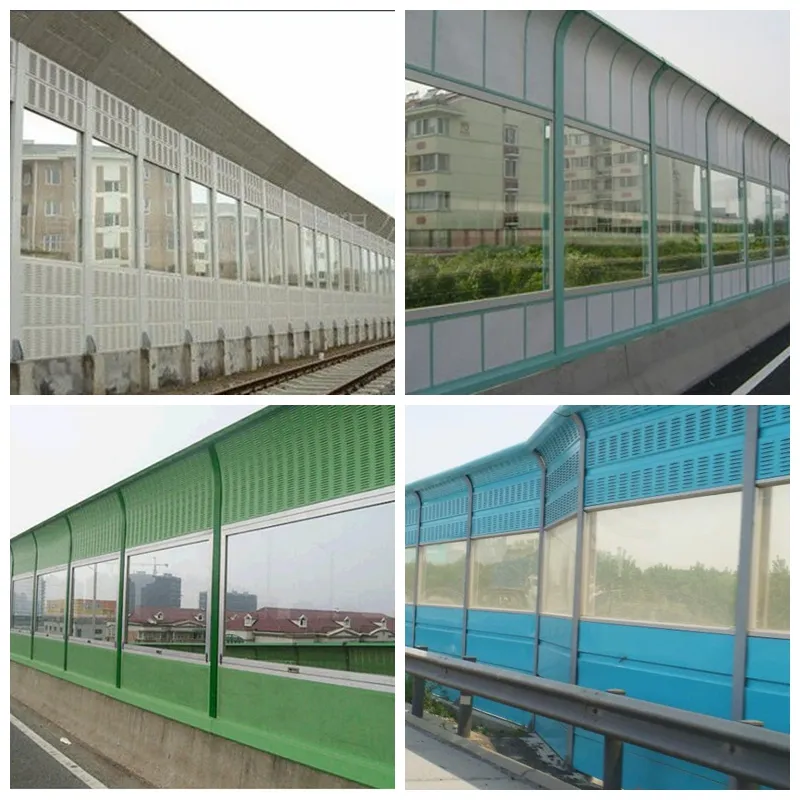

| Applications | Windows, doors, curtain wall, balcony, railing, partition, roof, etc. |

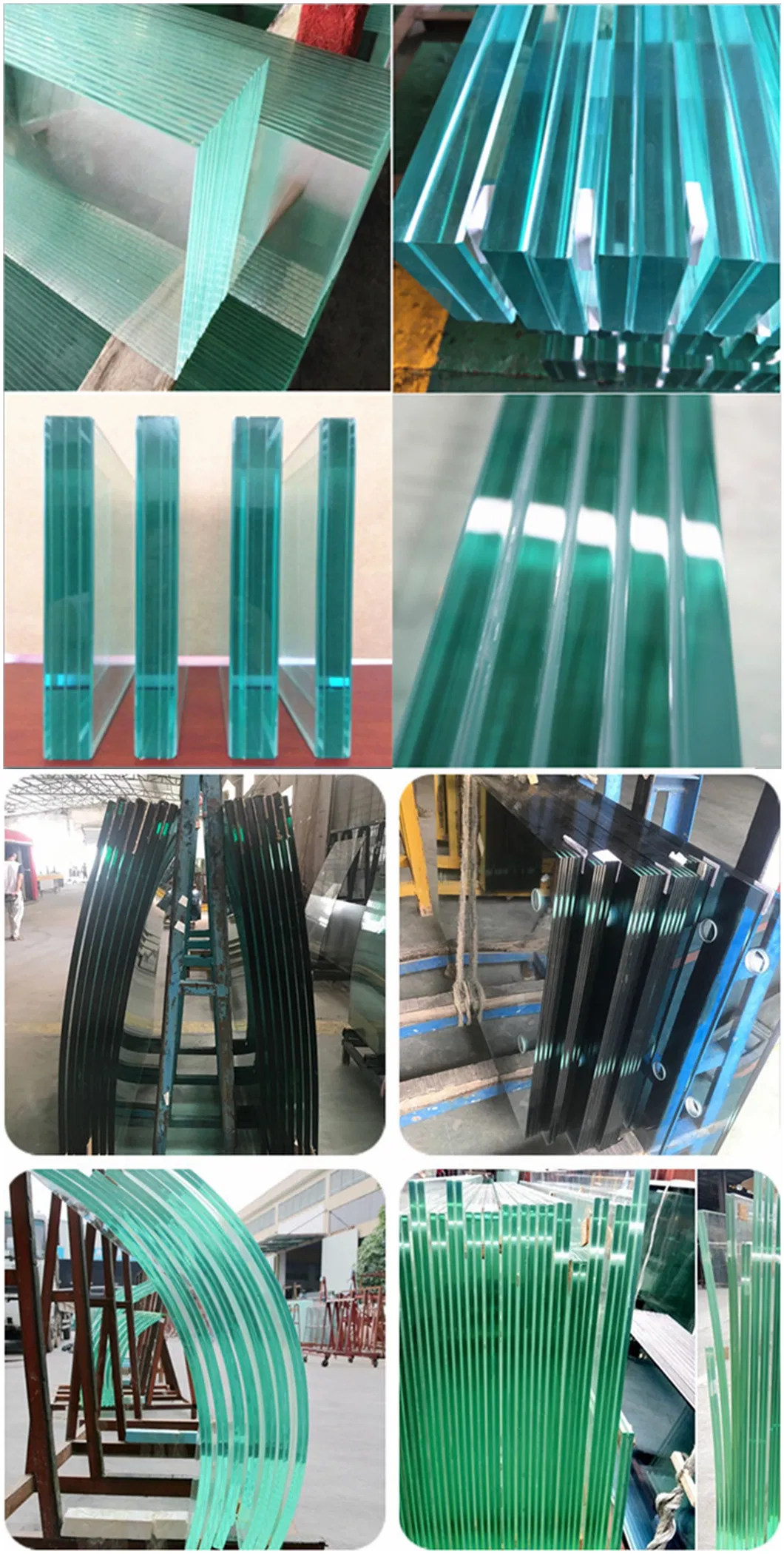

| Form type | Flat or bent/curved available |

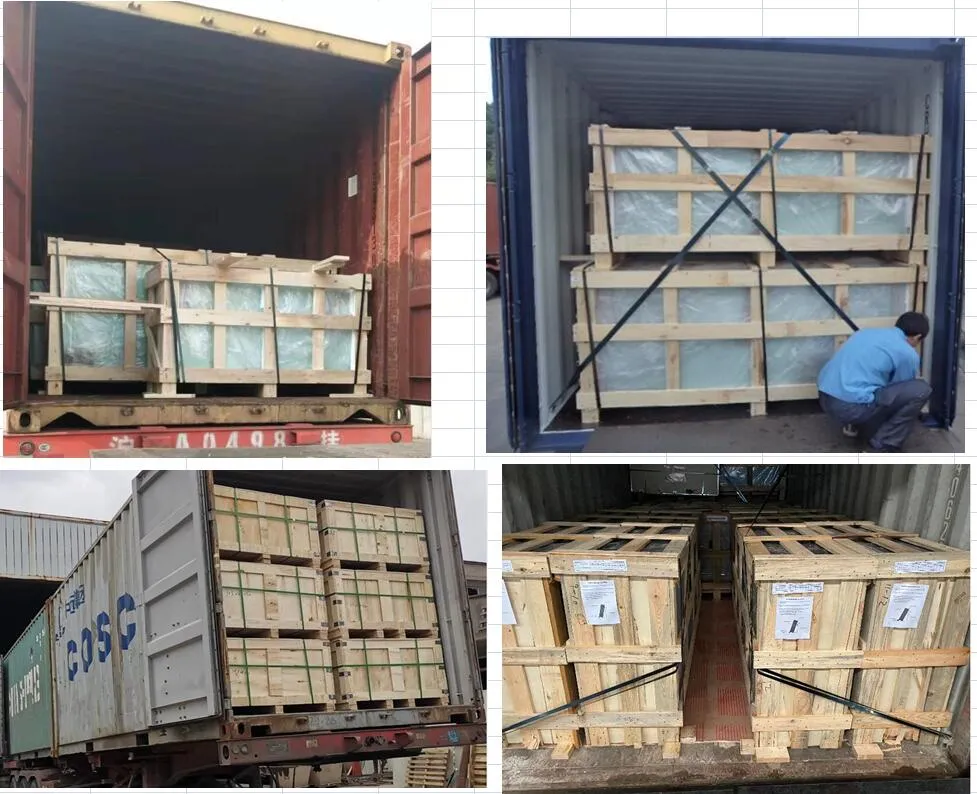

| Packing | Wooden case or customized package |
| Delivery time | 7-15 days |

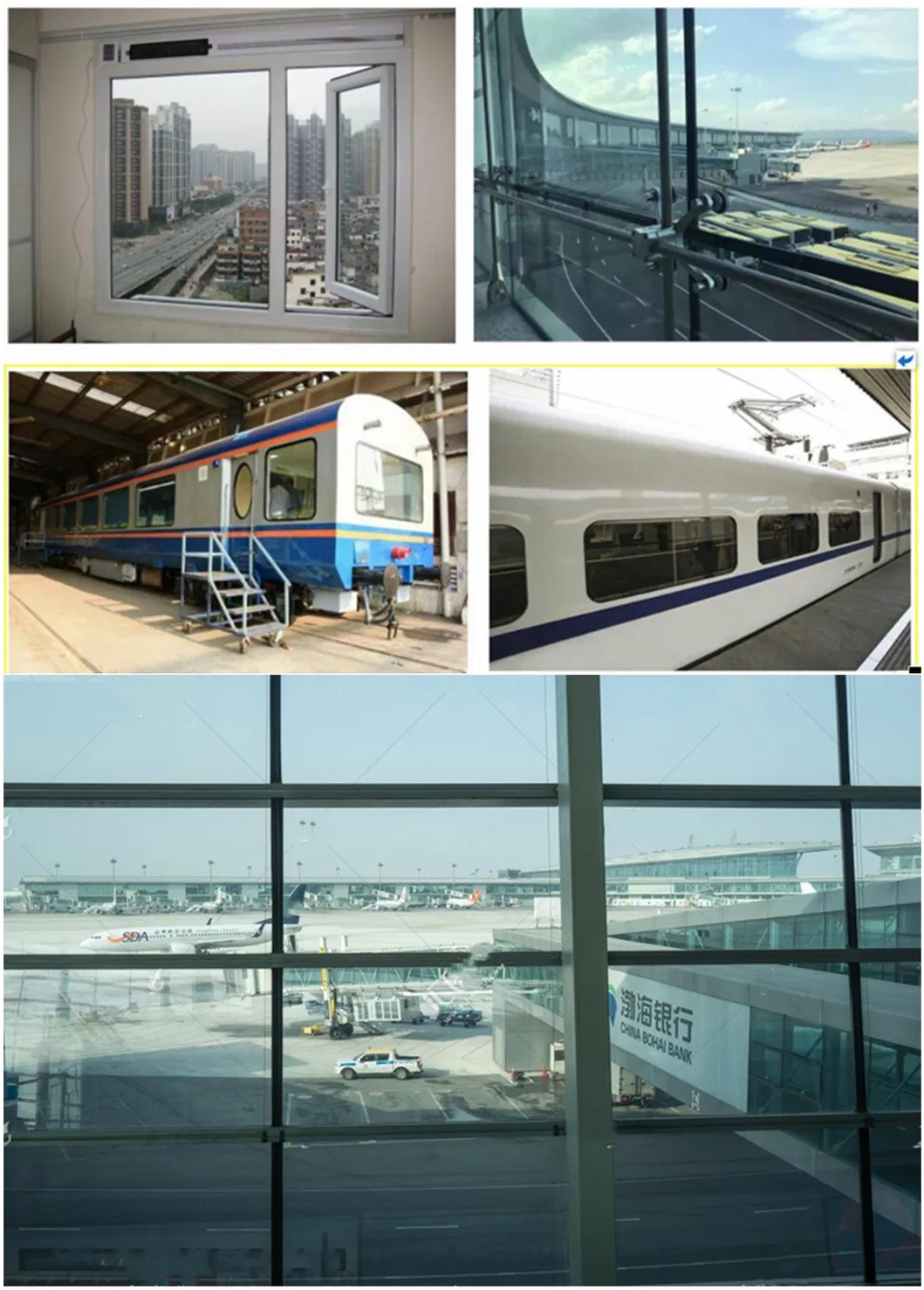

Doors, windows, curtain walls, and skylights for schools, homes, offices, healthcare, libraries, hotels, meeting rooms, and transport stations.
Glass Types: Toughened glass, laminated glass, insulated glass, acid etched glass, heat soak tested glass, silk-screen printed glass. Applications include swimming pool fences, shower screens, balustrades, and more.
Quality Standards: Products are certified by AS/NZS 2208: 1996, ISO9002, SGCC: ANSI Z97.1, EN12150, and CCC(3C).

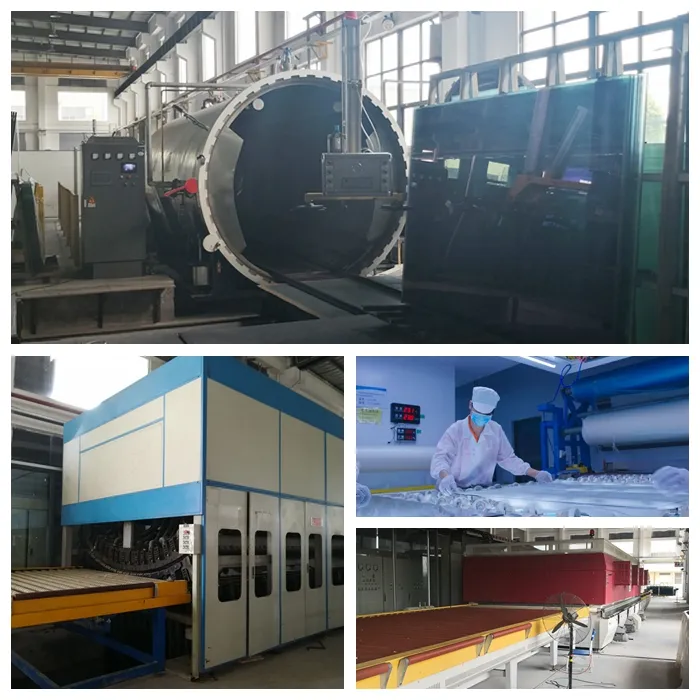

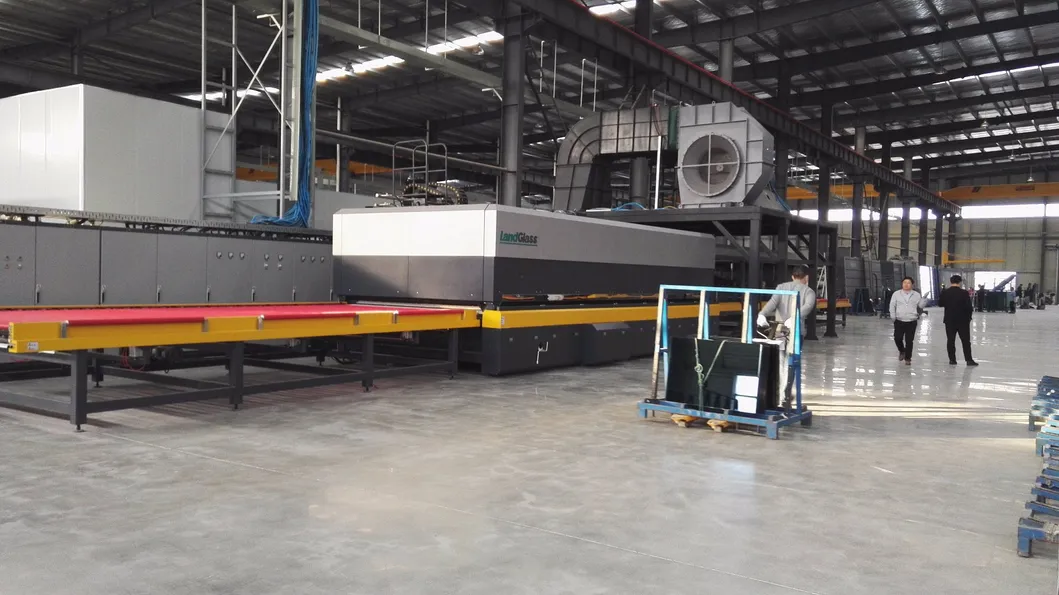

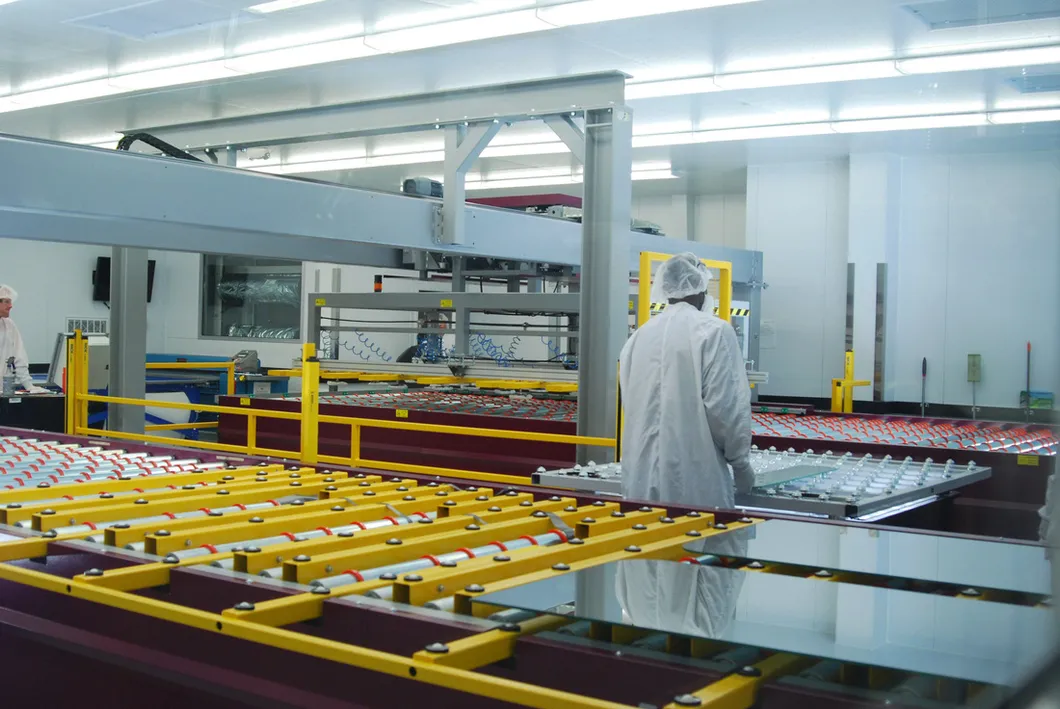

Advanced Machinery: Equipments imported from USA, Italy (Bottero), Finland (Tamglass), and South Korea (Ekang).
