Switchable Privacy Self-Adhesive Electrochromic Pdlc Smart Glass Film for Glass Window Tint Glass with Remote Control

Basic Information

Model NO.

0.36mm

Thickness

0.38mm

Color

Gray, Milky White, Red, Green, Blue, Yellow Ect

Sample Size

A4

Delivery Time

15 to 20 Days After Deposite

Packing

Rolls or PCS

Transport Package

Carton Box

Specification

Mix size: 1.5m*30m

Origin

China

HS Code

39199010

Production Capacity

5000000sqm/Day

PDLC Smart Glass Film Overview

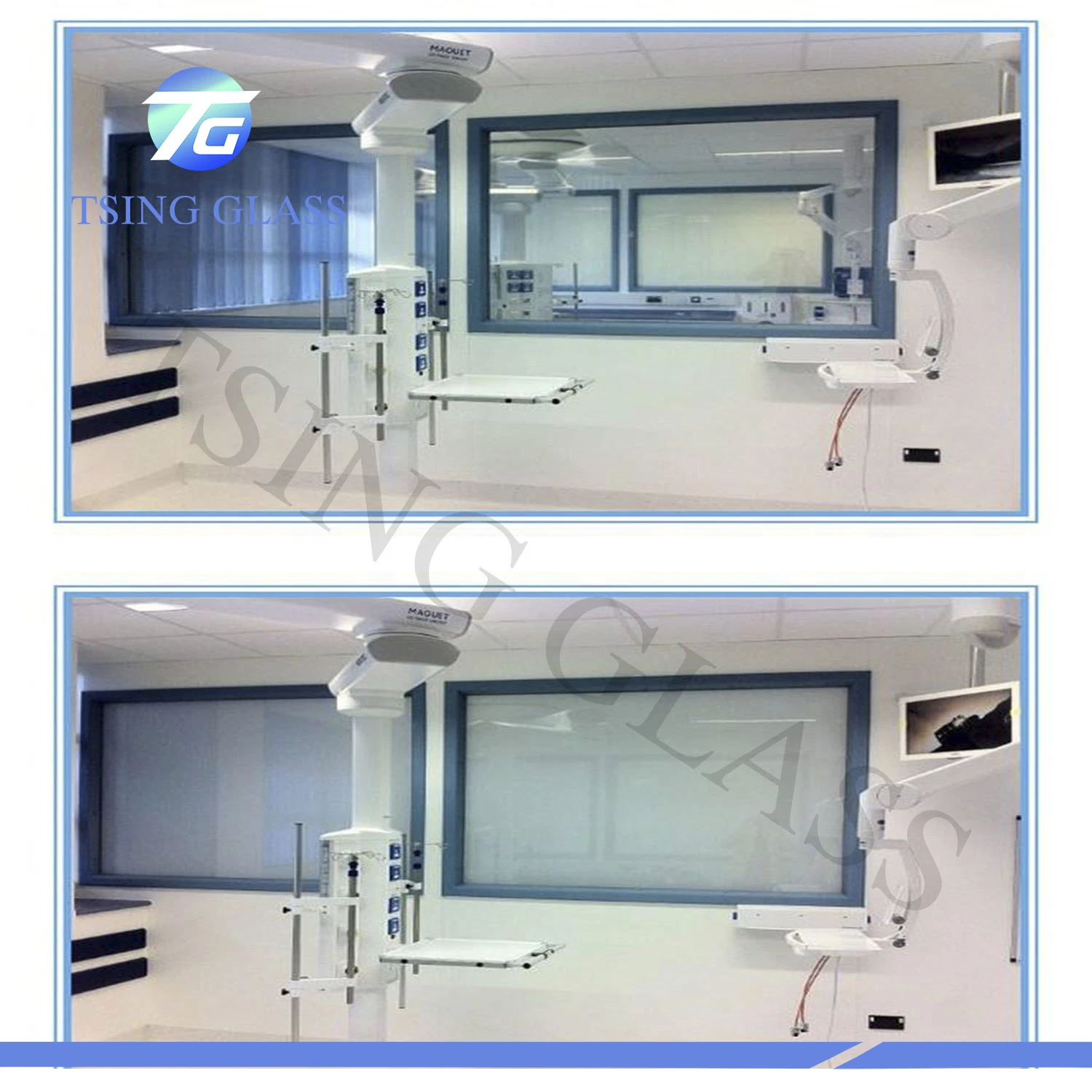

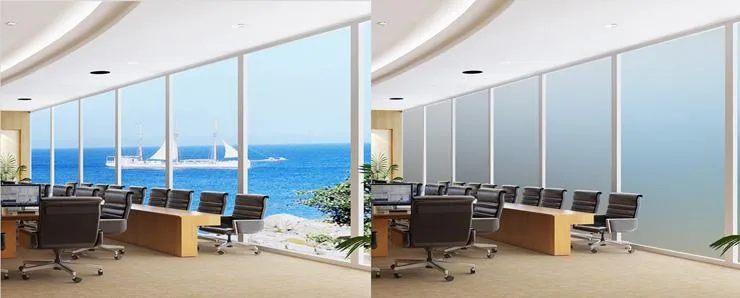

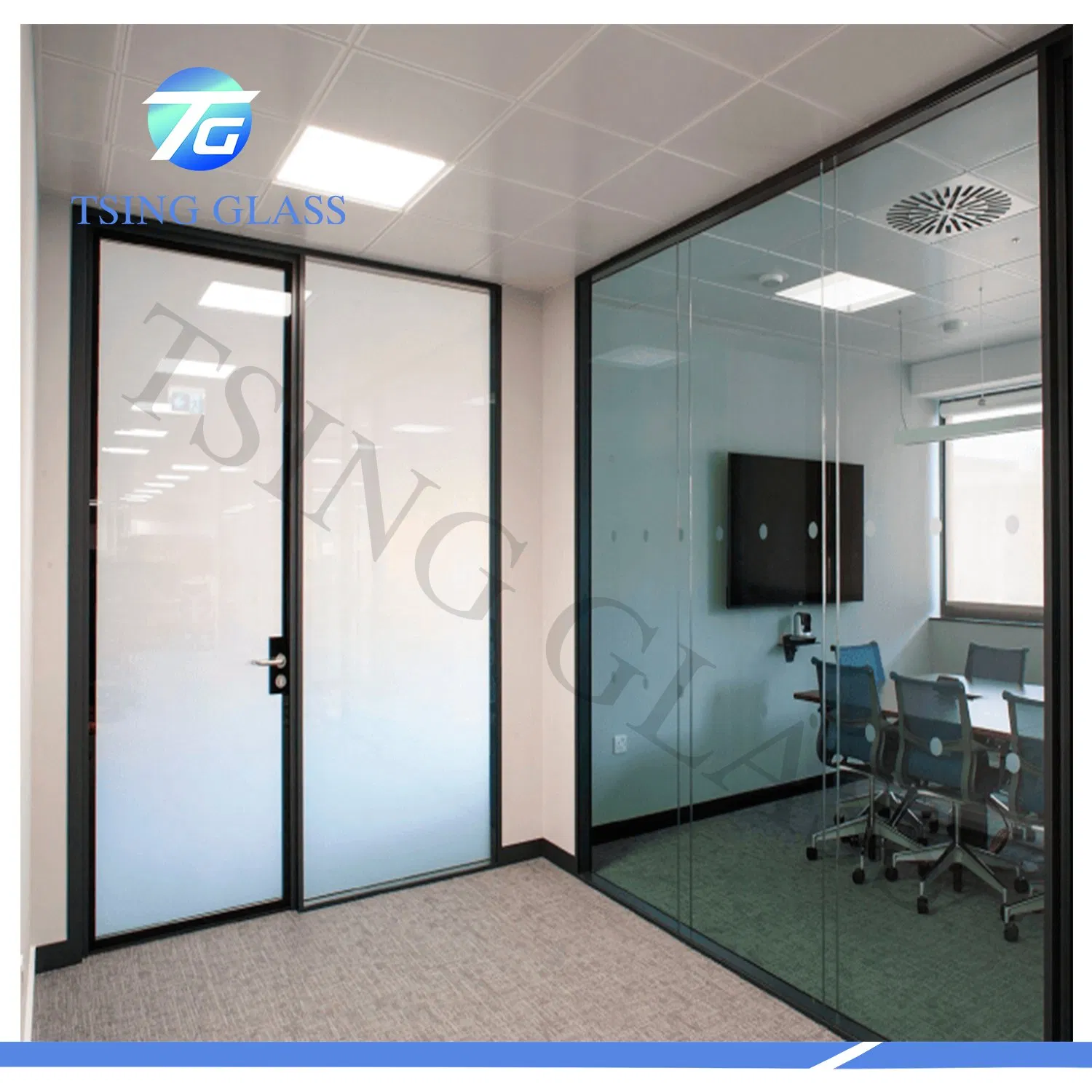

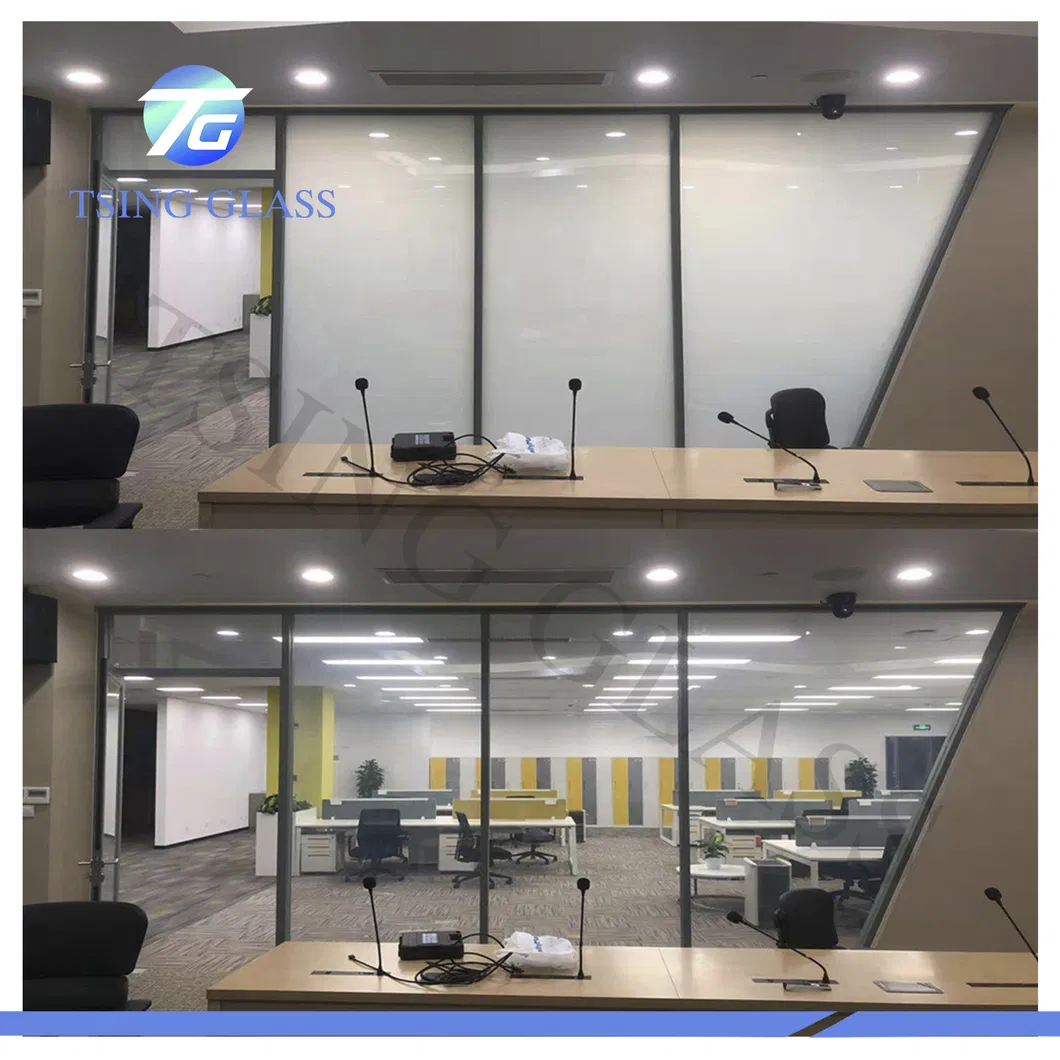

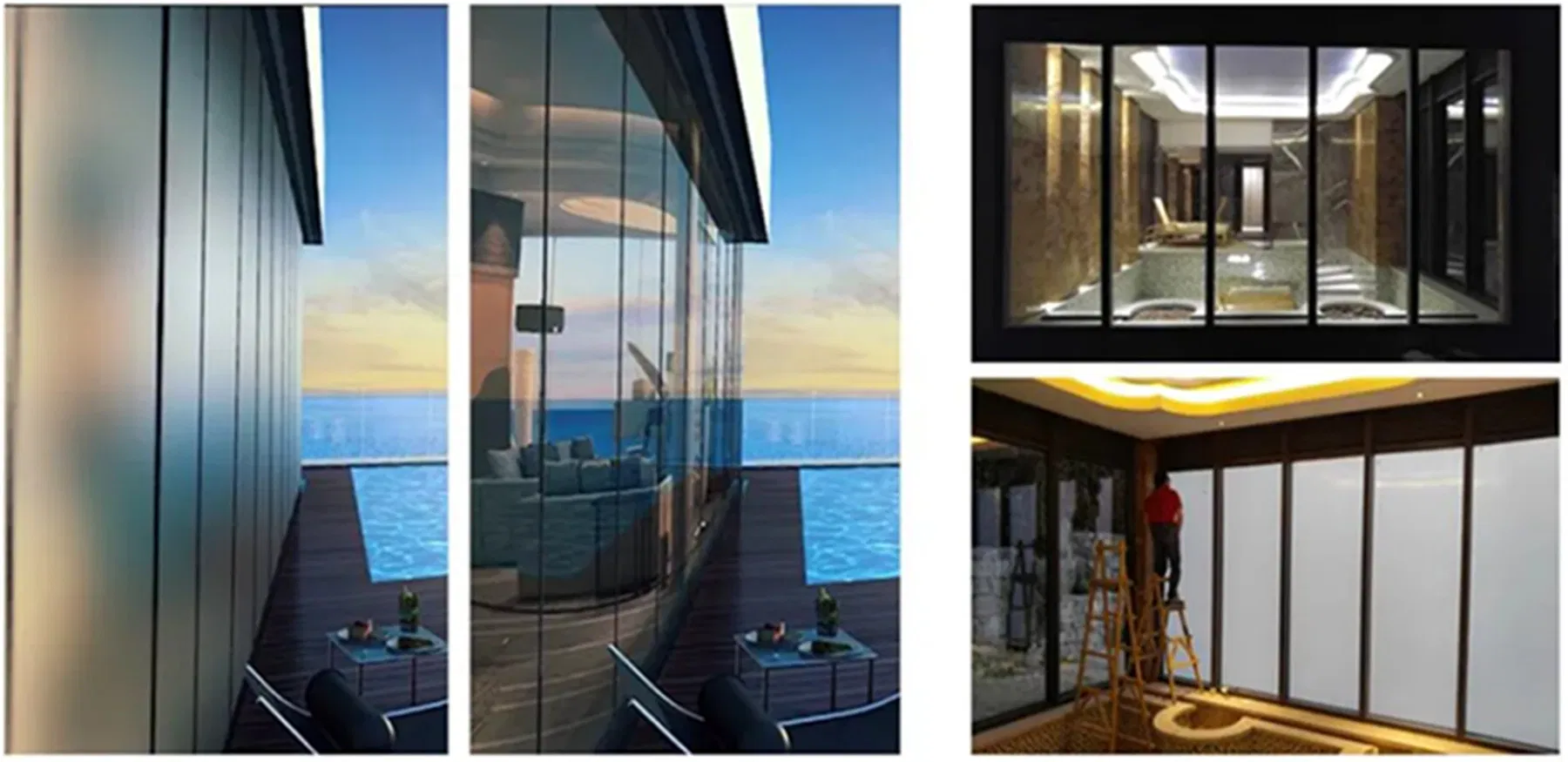

Self-adhesive Smart Film applies to any existing or new smooth glass surface. A simple ON - OFF mode switches the PDLC film from being clear (transparent) to frosted (opaque). In its frosted state the film acts as an electronic blind providing privacy and security for any glass, window or partition. Pasting this dimming film on the window glass can actually hide privacy, heat insulation and other functions, and truly replace traditional curtains.

PDLC refers to mixing low-molecular liquid crystals with prepolymers and polymerizing under certain conditions to form micron-sized liquid crystal droplets uniformly dispersed in a polymer network. Custom shapes and sizes are available and multiple pieces can be joined together to create large switchable surfaces.

Structure of PDLC Smart LCD Dimming Film

Key Features & Characteristics

⚡Self-adhesive (Peel and stick)
⚡Applied onto regular glass without replacing existing glass
⚡UV / solar protection
⚡Removable functionality
⚡Power efficiency: 5 watts per square meter
⚡Standard widths: 1.0m / 1.2m / 1.5m / 1.8m

Technical Specifications

Category	Parameter	Value
General	Thickness	390±10 um / 0.55mm
General	Voltage	60V / 65V AC
General	Power	<10W/M2
Optics	Visible Transmittance (ON)	>75%
Optics	Visible Transmittance (OFF)	<1%
Optics	Haze (ON)	<7%
Optics	Haze (OFF)	>90%
Optics	Viewing Angle (ON)	~140 degree
Optics	UV Shielding	>99%
Optics	Infrared Shielding (OFF)	>90%
Response	Off to On	<200ms
Response	On to Off	>10ms
Durability	Operation Temp	-30˚C to 80˚C
Durability	Life Expectancy	>10 years

Working Principle

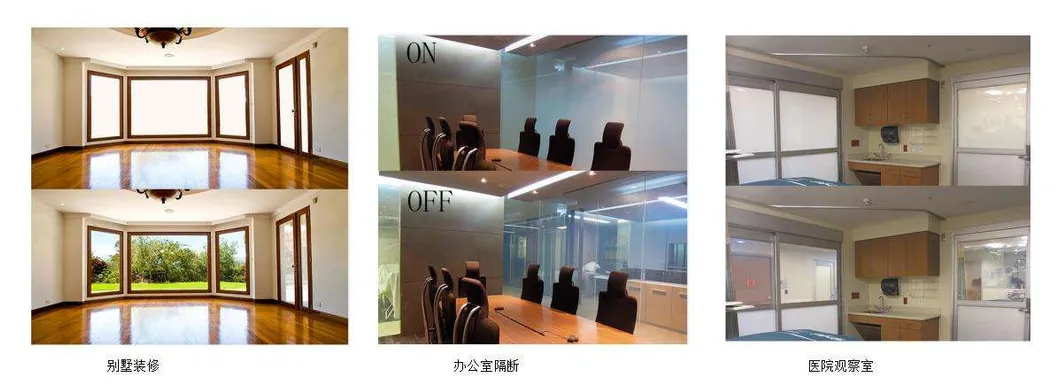

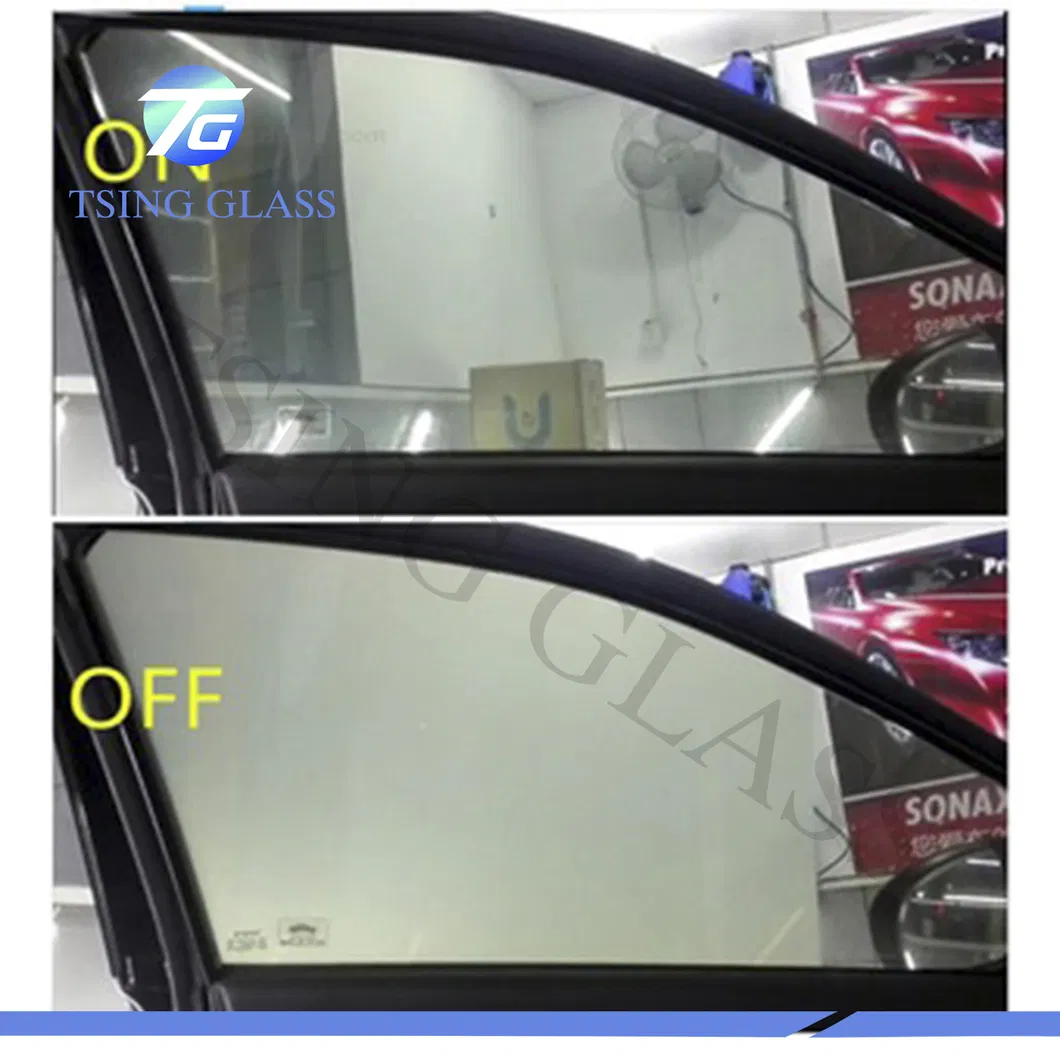

When the dimming film is powered off, the polymer liquid crystal material is disorderly arranged so that light cannot penetrate, creating a milky opaque state. When energized, the material arranges in an orderly manner under the electric field, allowing light to pass through for a transparent state.

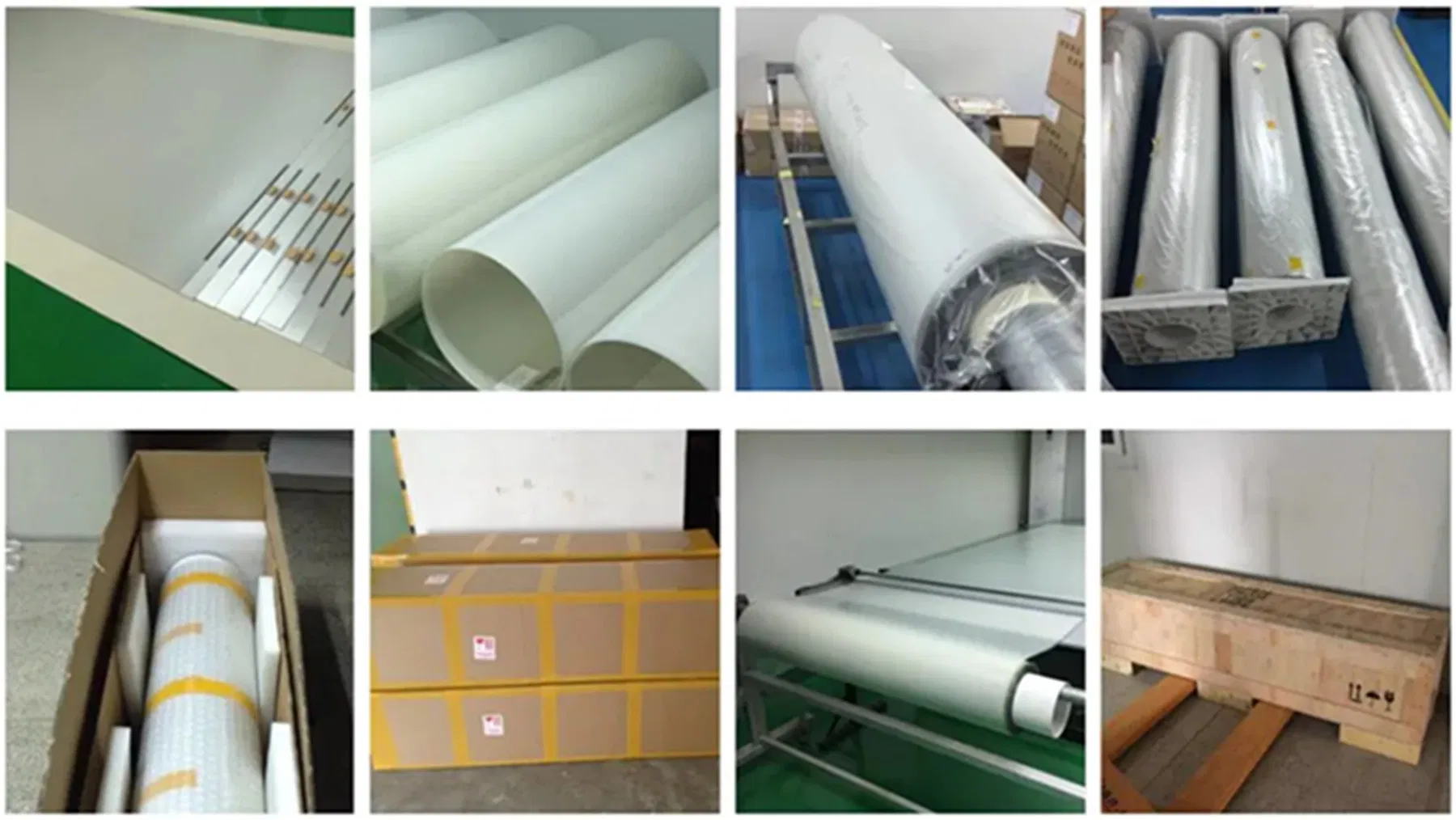

Packing & Loading

We provide professional assortment of processed glass products. Our high-quality packing ensures the glass for building facades and home decoration arrives in perfect condition.

Frequently Asked Questions

How many colors of film do you have?

We offer white, yellow, green, blue, and other customized colors.

What is the available size range?

For roll film, widths are 1.0m, 1.2m, 1.5m, and 1.8m with any length. For cut-to-fit sheets, the limit size is 1.8m * 3.5m.

Can the production be customized?

Yes, we can produce the film according to your specific requirements and dimensions.

How do you ensure the goods arrive safely?

We use high-quality fiber containers and reinforced carton boxes to protect the goods during transit.

What are your transportation recommendations?

We suggest door-to-door delivery via reliable couriers such as FedEx, DHL, TNT, or UPS.

Do you provide samples for testing?

Yes, we can provide samples for quality inspection and testing purposes.
