AGS Glass
1 / 5
Providing a wide range of level measuring instruments, including various level gauges and Bi-color Sight glass level gauges.
Key Features:
Available Materials:
Carbon steel; SS304; AISI316 for corrosive fluids; Other materials available on order.
Choices & Configurations:

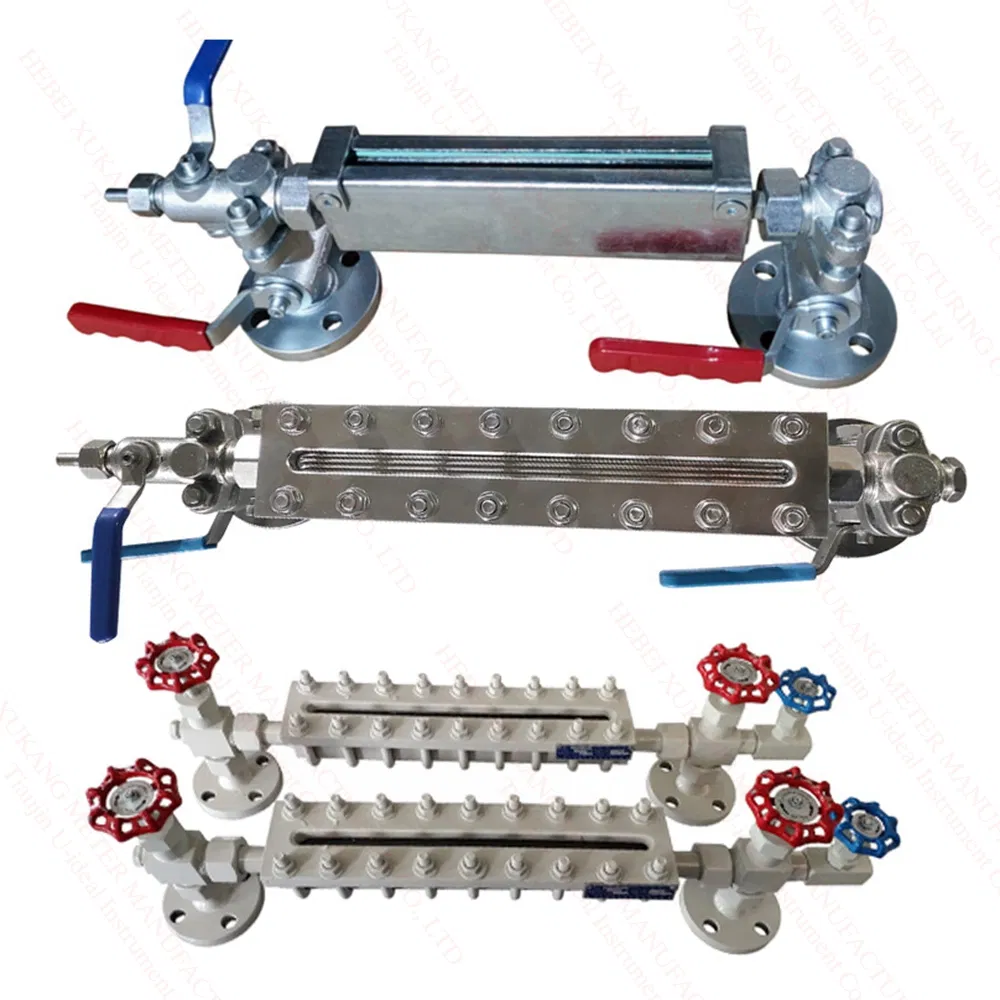

High temperature, High pressure, Defrost level Gauge, Reflex Level Indicator, Transparent, Boiler flat type, Single color or bi-color, Sight glass Back light type, and electric thermal type glass level gauge.

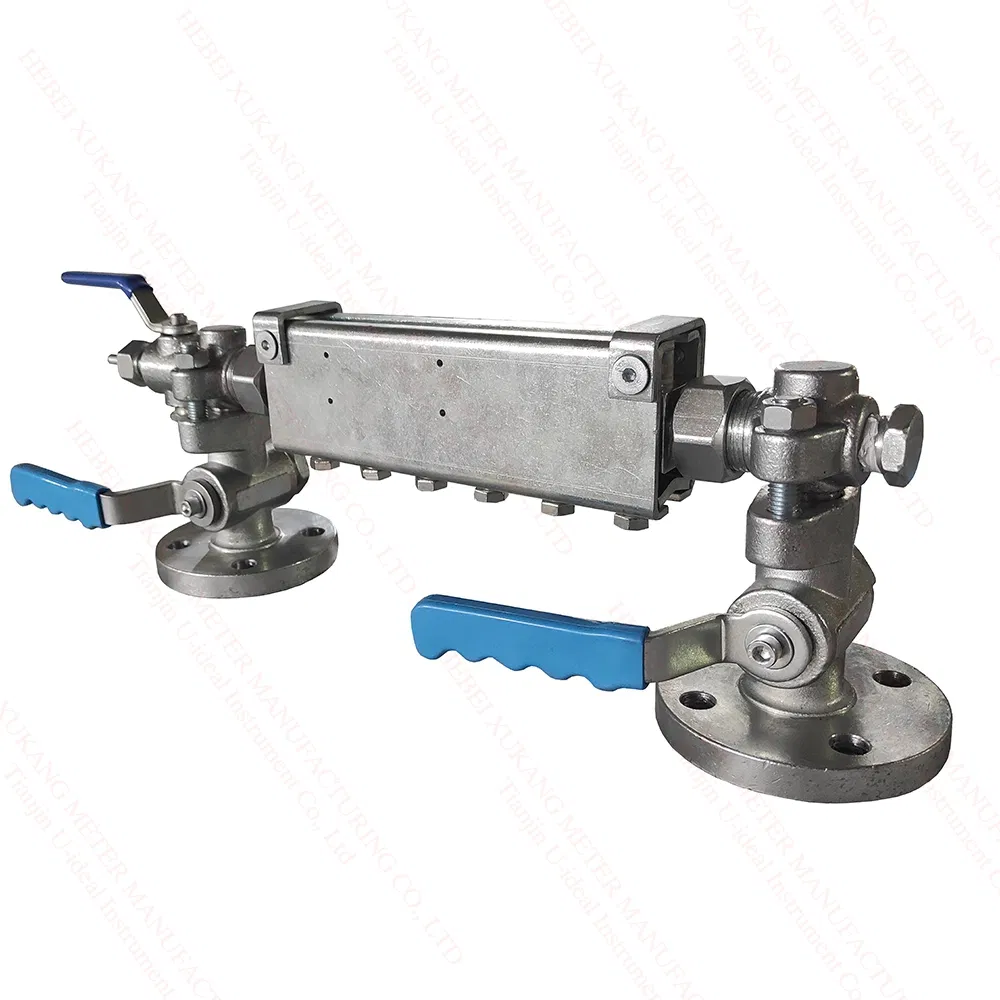

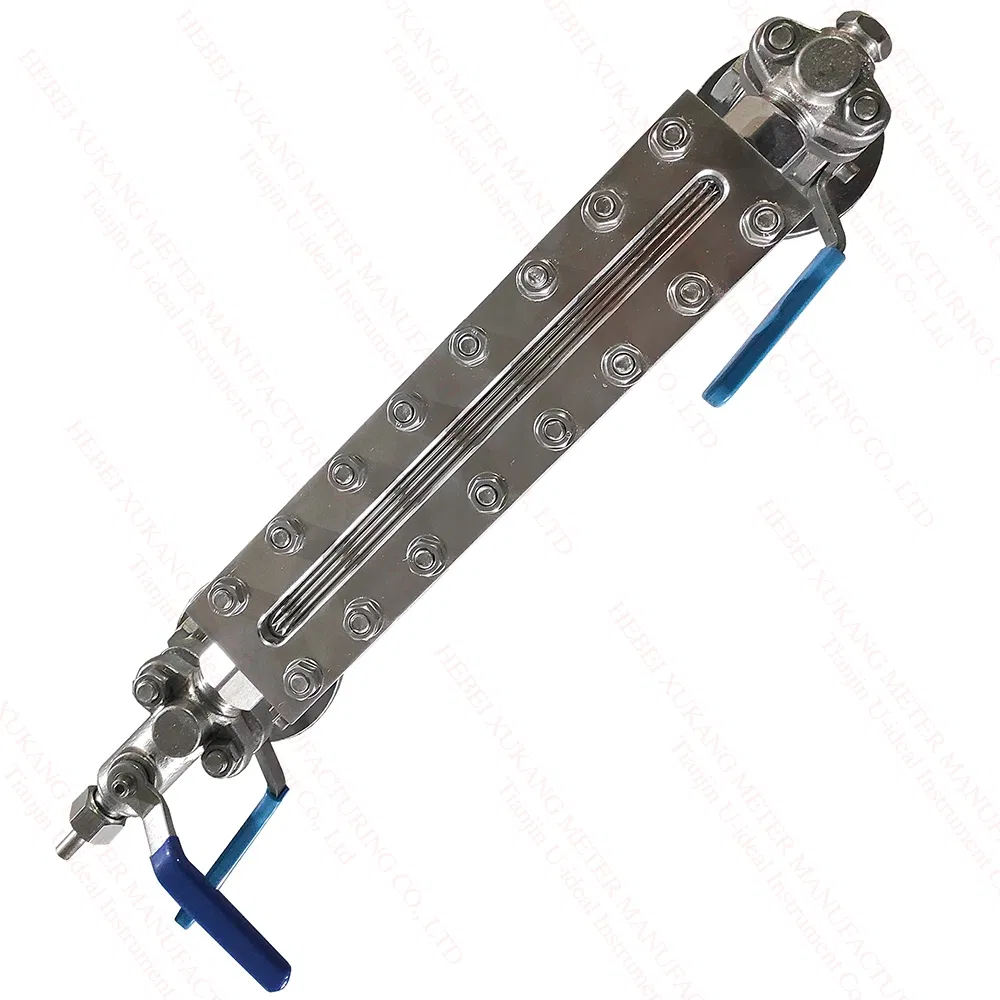

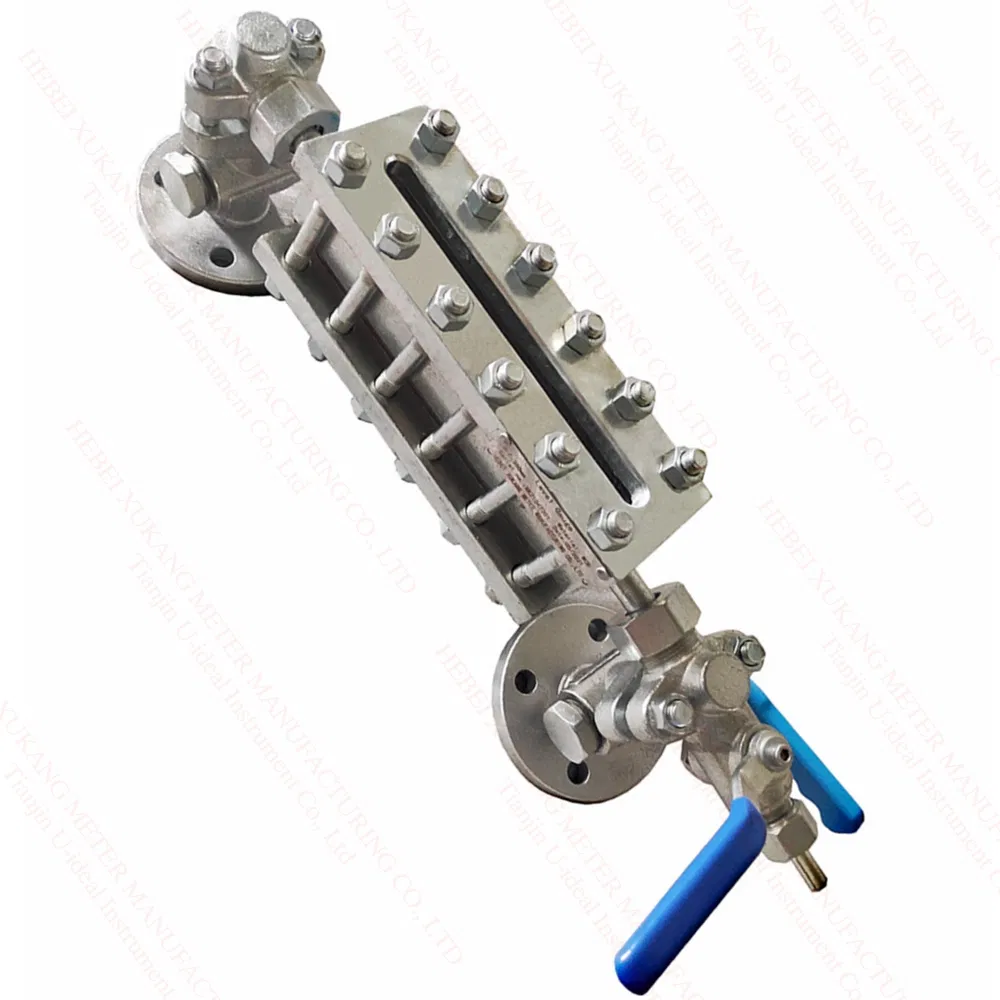

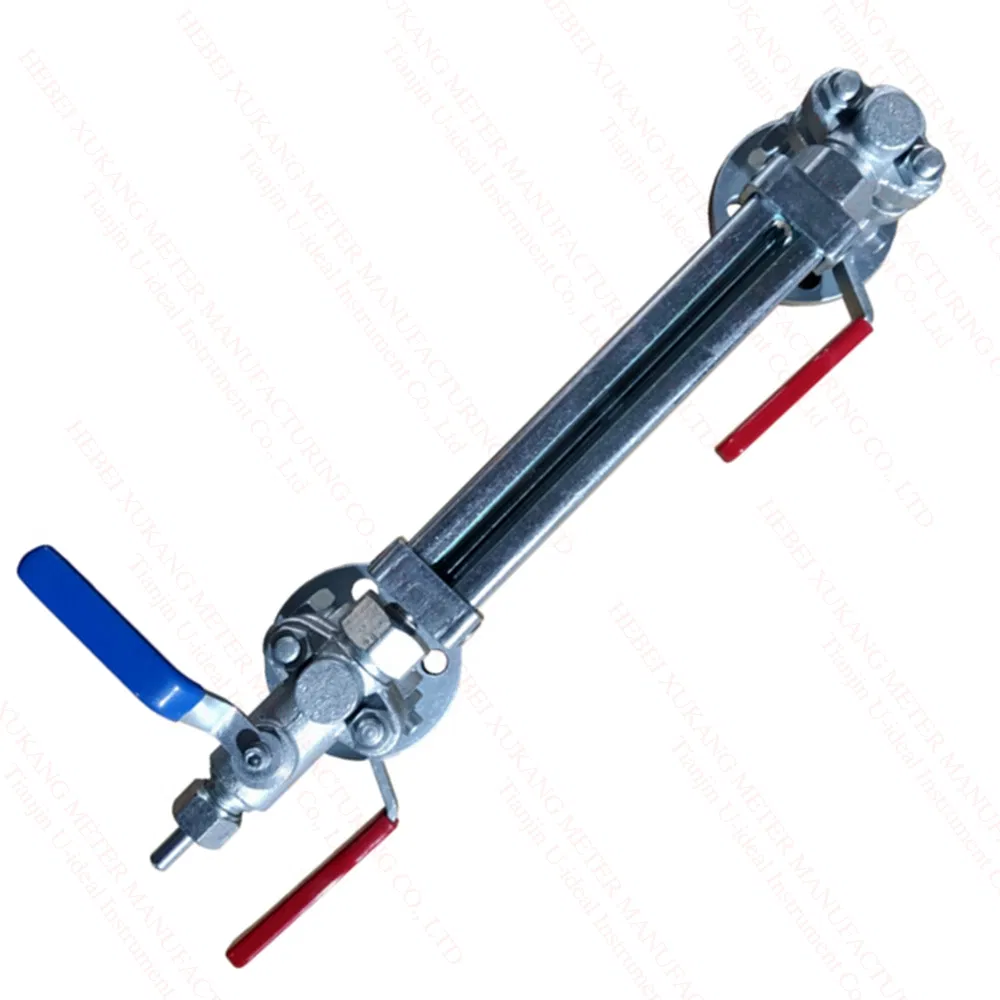

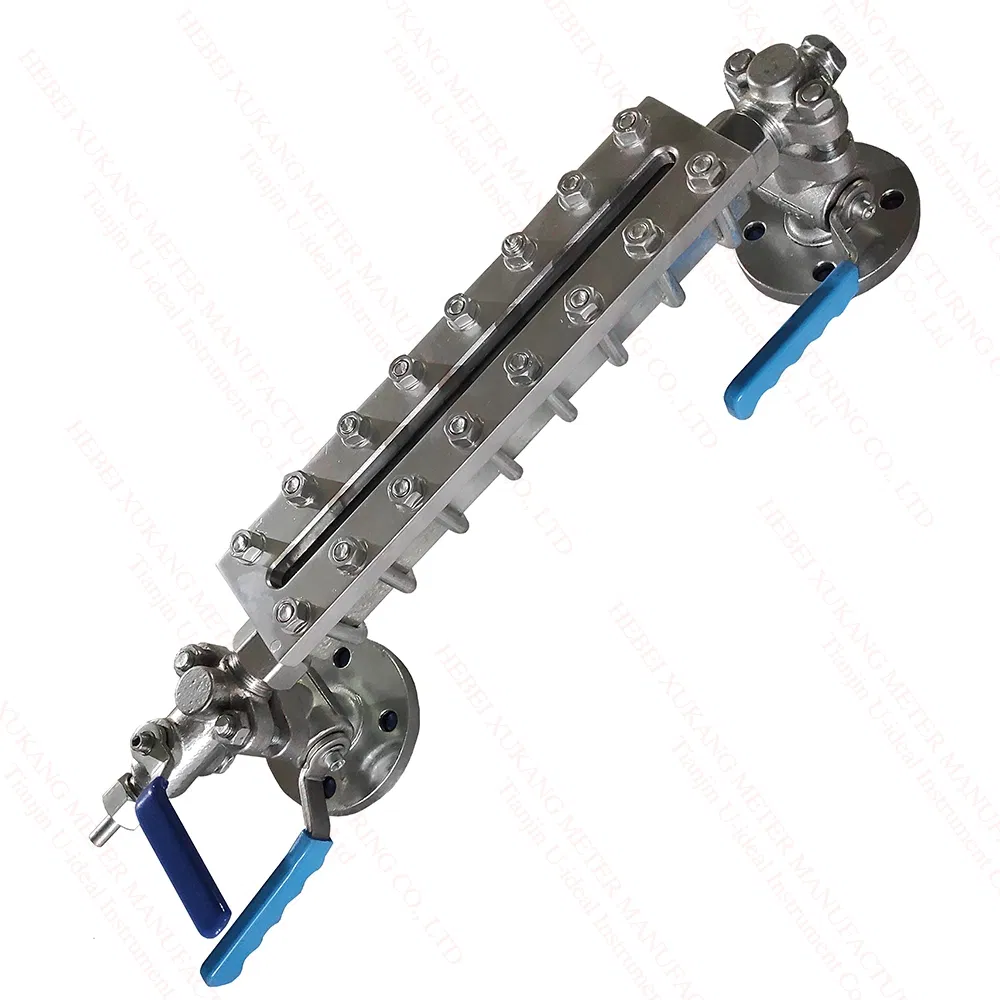

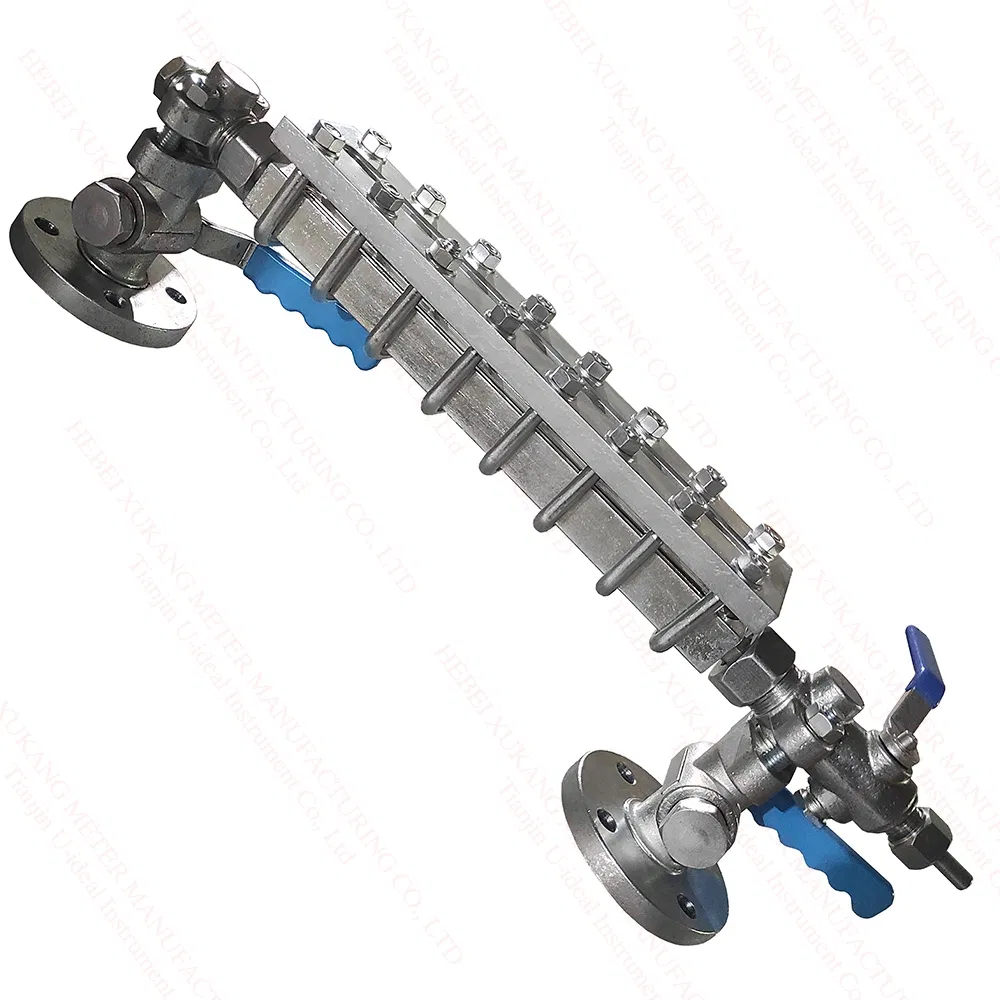

TBS glass plate liquid level gauges are professional level measuring instruments. The main components consist of upper and lower needle switches and indicating equipment. Fluid flows via the switch into the indicating equipment, allowing the liquid level to be clearly viewed through the effective light transmission range.
High-quality borosilicate glass is used for the sight glass plates. Connections are generally made with valve heads featuring single or double isolation. Drain valves enable the indicator to be emptied and are fitted to the lower flange face.
Technical Specifications by Model:
| Valve Type | 90° quick open/close gauge valve |
| Valve Body | Cast steel |
| Valve Rod Material | 2Cr13 / SS316L |
| Sealing Material | Graphite |
| Working Temperature | ≤450ºC |
| Working Pressure | 40 Bar (groove glass) |
| Connection Mode | Flange: DN15, DN20, DN25, 3/4'', 1'', 1-1/4'' |
| Connection Standard | ANSI, DIN, GB, JIS |
| Application Models | TBS-F / TBS-A / RFL-40C |
