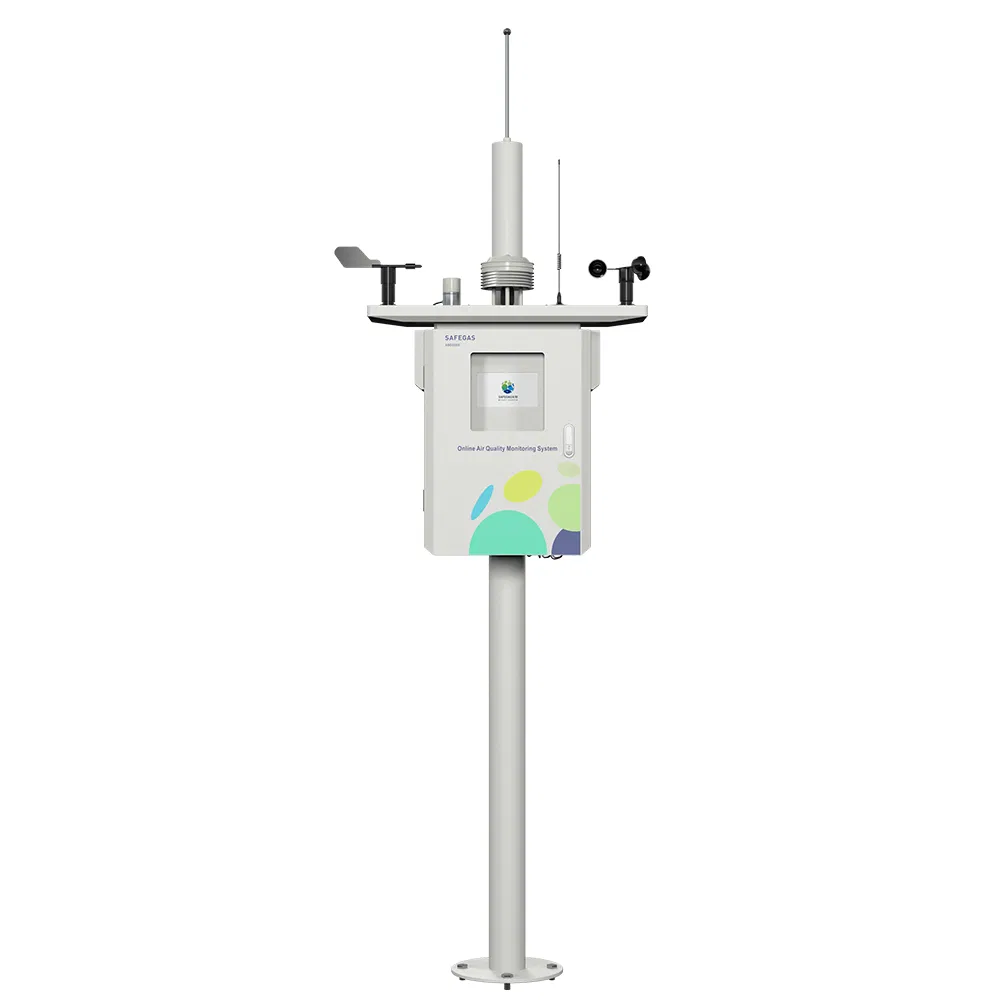

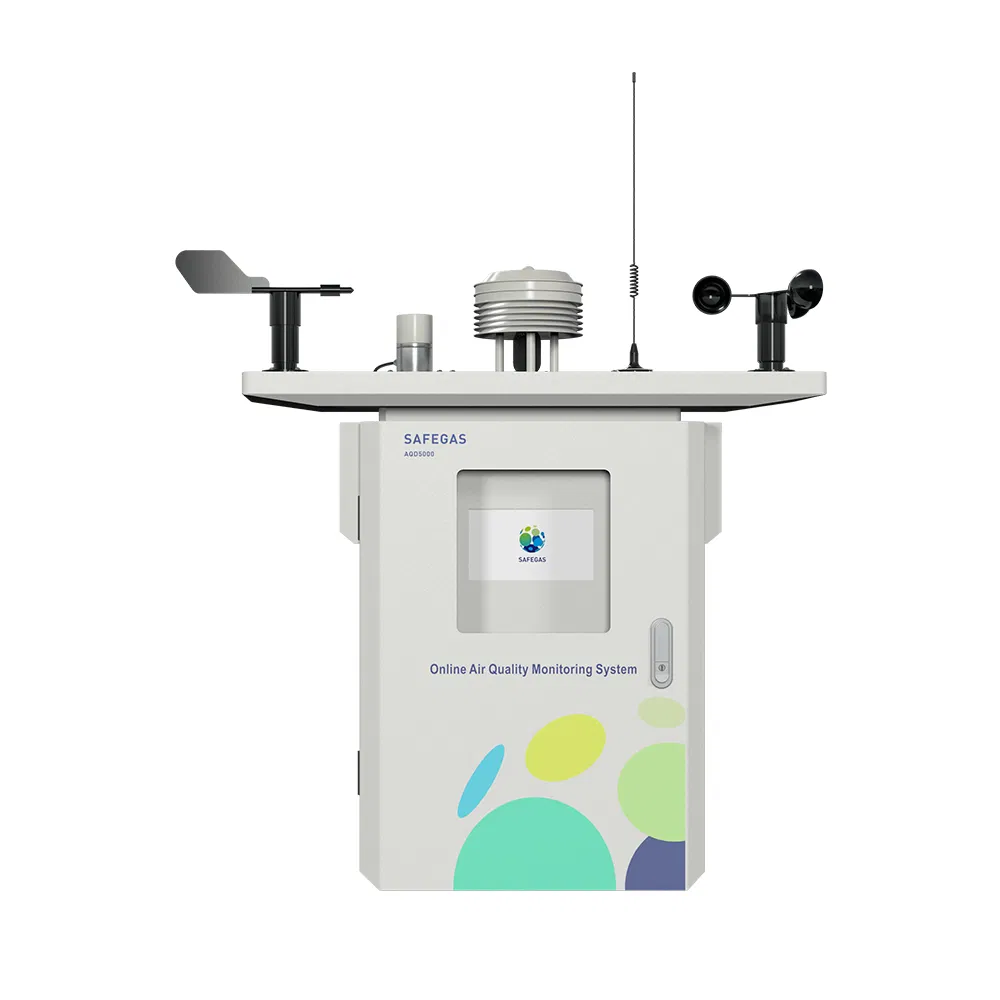

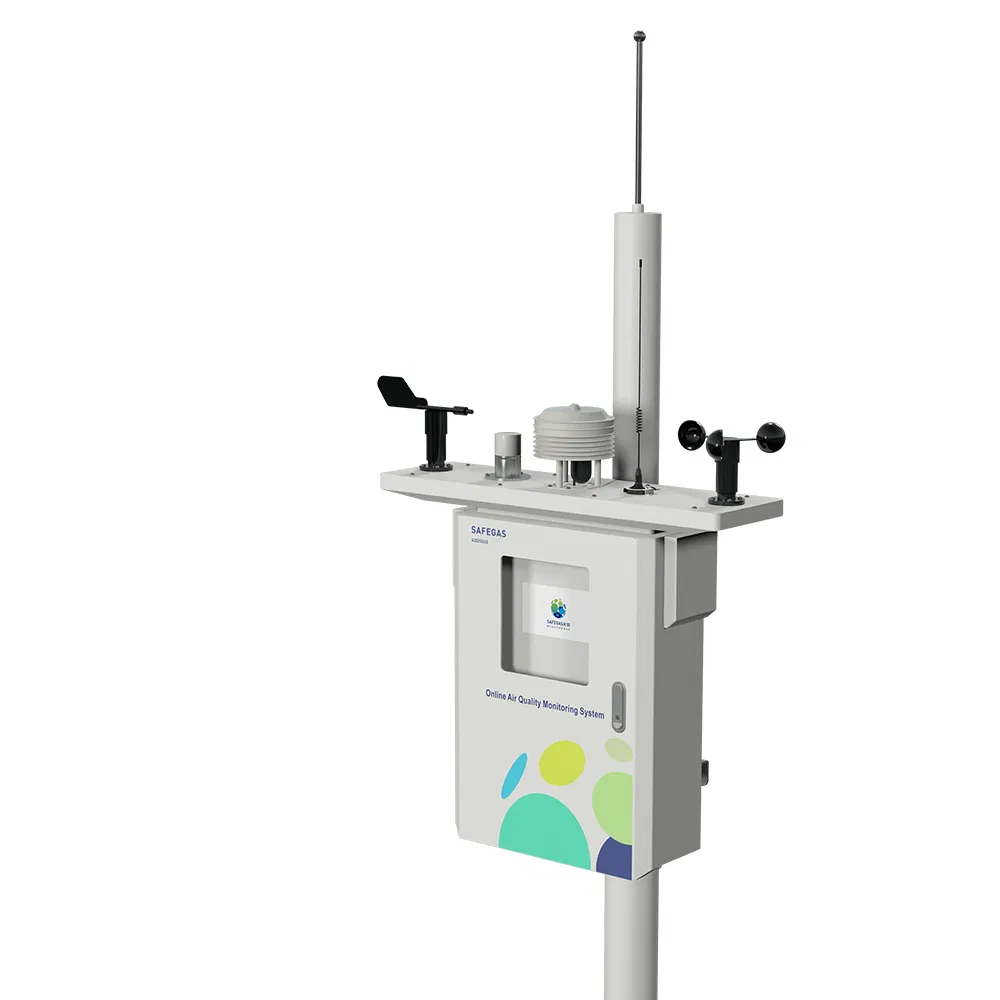

ADQ5000 is a new type of low-cost intelligent monitoring equipment, and it is an ideal equipment for environmental monitoring departments to monitor air quality.
AQD5000 air quality monitoring system is widely used in urban air quality monitoring and industrial air emission pollution monitoring. It can simultaneously measure various environmental pollution gases, particulate matter and meteorological parameters in the air. The system supports RS485 signal transmission, with data storage and export functions. Through the wireless acquisition terminal, the measurement data can be transmitted to the cloud platform in real time, and can be remotely controlled through the cloud platform.
4. It can work 7×24 hours without interruption, with real-time data upload and fault self-diagnosis.
5. Standard output RS485 signal and relay signal.
6. High precision sensors, approved by third-party testing organizations with 15 years of industry expertise.
| Category | Details |
|---|---|
| Gas parameters | CO2 (0-2000, 5000, 10000, 50000ppm), Resolution: 1PPM, Accuracy: ±3% |
| Particle parameters | PM2.5, PM10, PM0.3, PM1.0, TSP; Range: 0-1000ug/m3 or 0-5000ug/m3 |
| Output signal | RS485, relay, 4G DTU (optional), LORA (optional) |
| Sampling method | Pump suction (0.5L/min gas; 1.8L/min particles) |
| Display | 7-inch color touch screen |
| Power Supply | 220VAC, 0.1A |
| Operating Temp/Hum | -10ºC ~ 55ºC; 0-95%RH (non-condensing) |

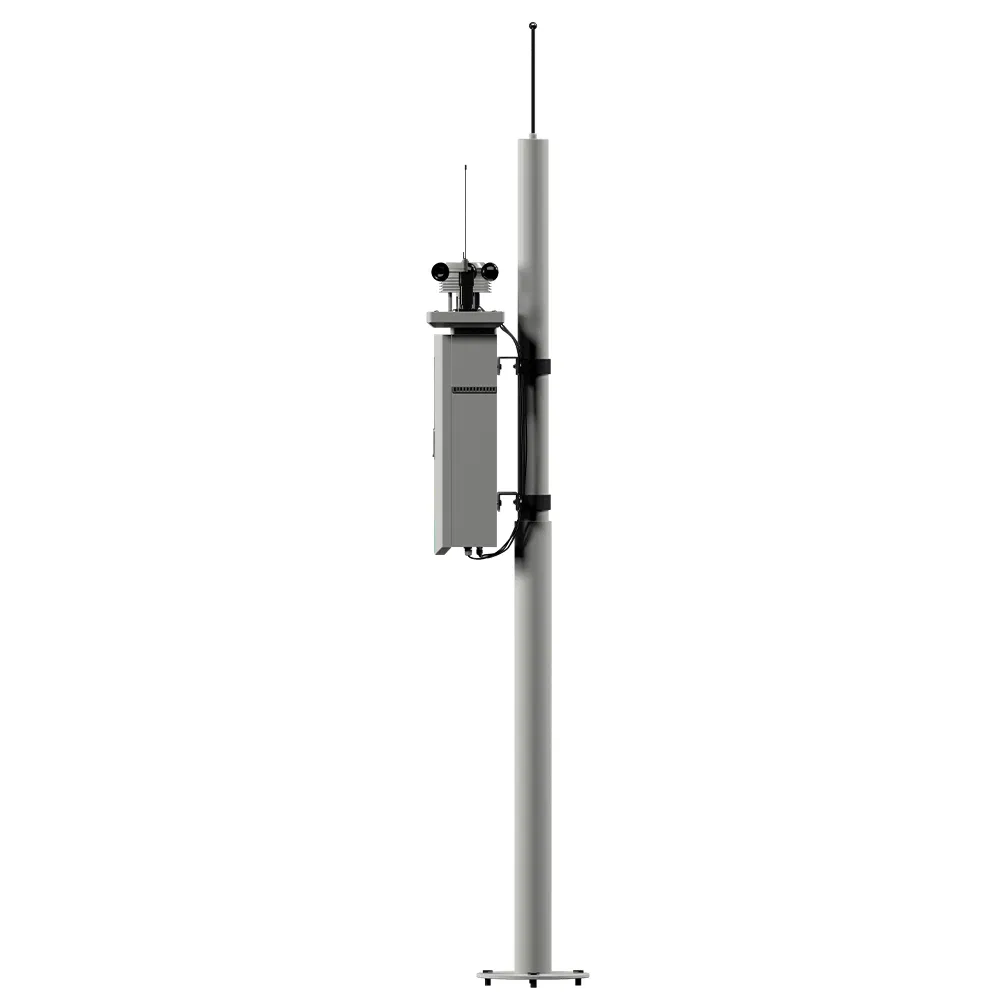

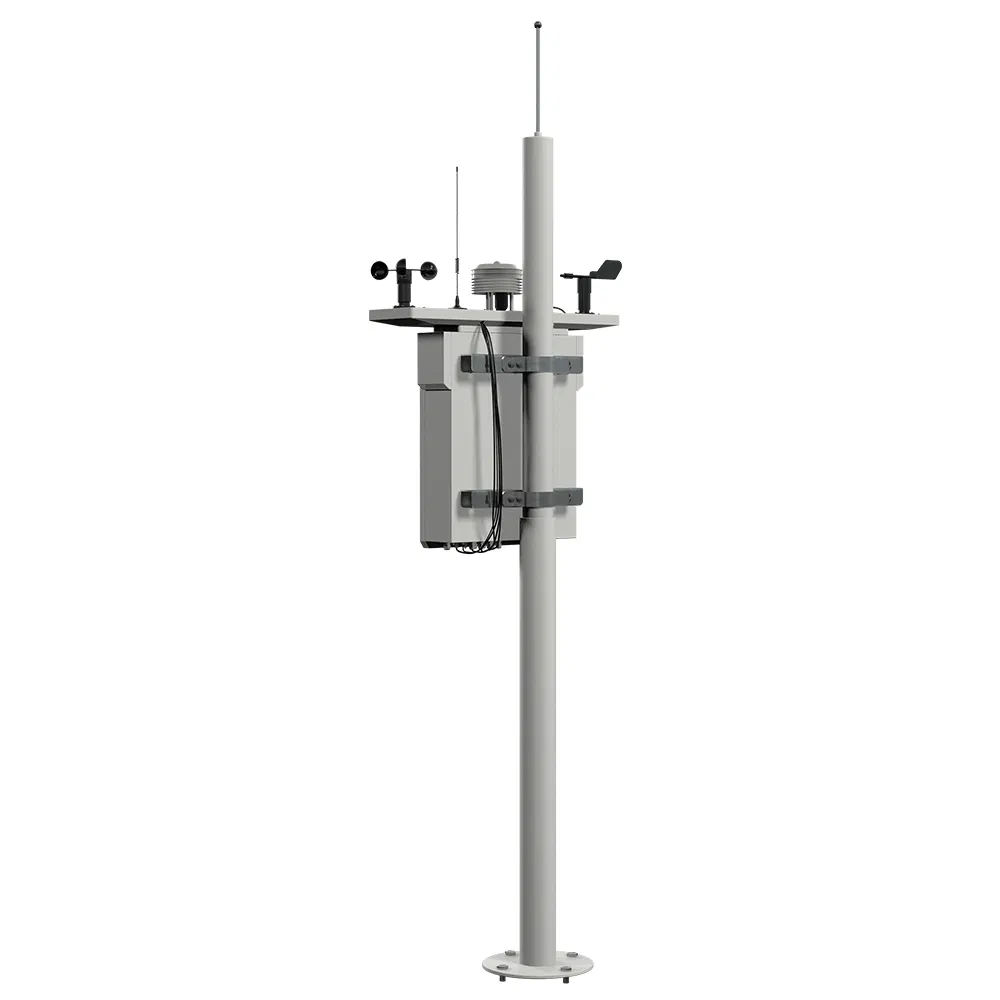

| Installation | Ceiling, wall-mounted |
| Product size | 480×580×163mm |

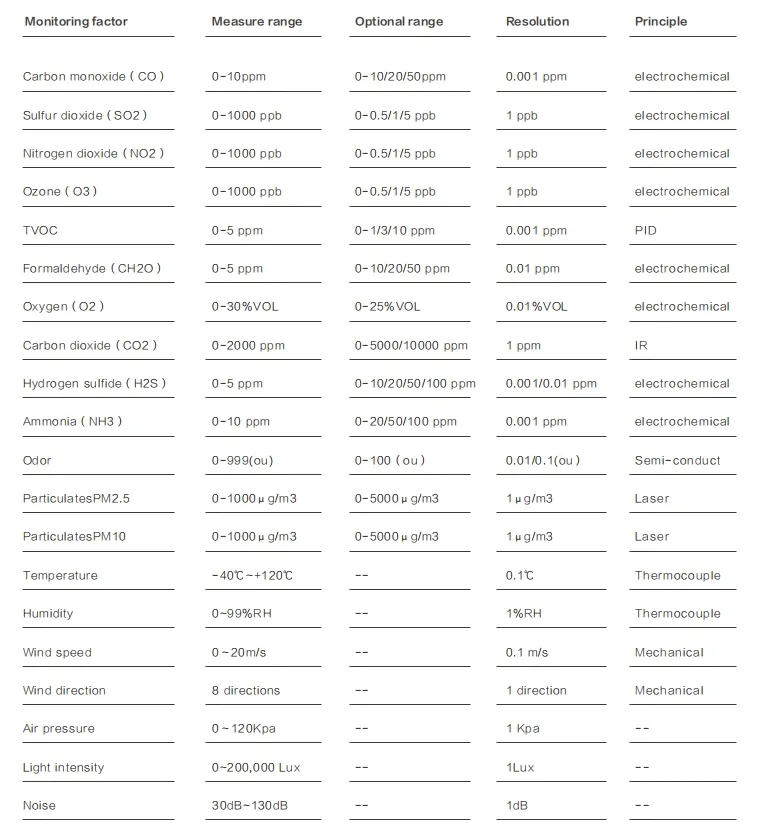

The AQD5000 can detect 1-9 gases and various meteorological parameters as shown below:

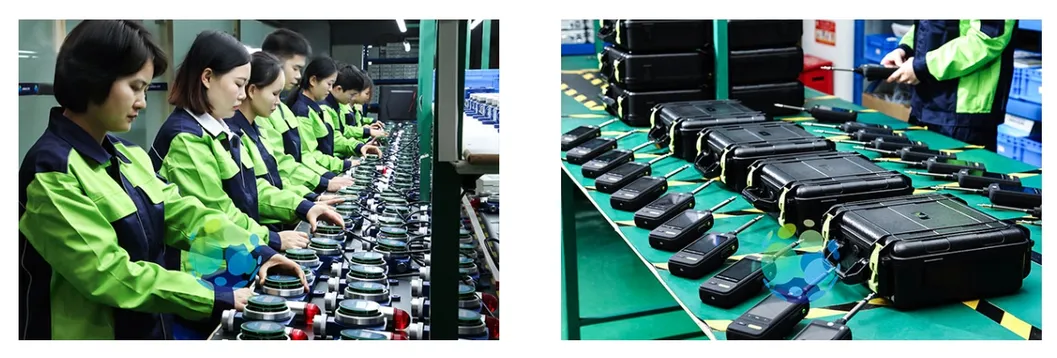

As a professional manufacturer, we control the entire process from design and R&D to production and sales. We hold over 100 independent intellectual property patents.
We implement a strict quality management system (ISO9001 and ISO14001). Our products have obtained IECEx and ATEX explosion-proof certifications, allowing use in hazardous areas like mines and oil plants.
We use high-quality imported sensors (Honeywell, CITY, Alpha) to ensure accuracy and service life. With a stable inventory, orders under 10 pcs are typically delivered within 3 days.
