LSR Silicone Car Quarter Glass Encapsulation Rubber

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Information

Model NO.

INI-7 Series

Certification

ISO, FDA, REACH, RoHS

Usage

Moulding

Color

Translucent

Hardness

40 Shore A

Mix Ratio

1:1

Shrinkage Rate

Less Than 0.1%

Grade

Food and Medical

Production Capacity

800 Tons Per Year

Origin

Shenzhen, China

Product Description

INI-E640 Mold Making Silicone

Description: Two-component silicone, platinum-curing/addition-cure type, flowable, vulcanizes at room temperature or heated temperature. Maintains soft and elastic properties in range of -65°C to 200°C.

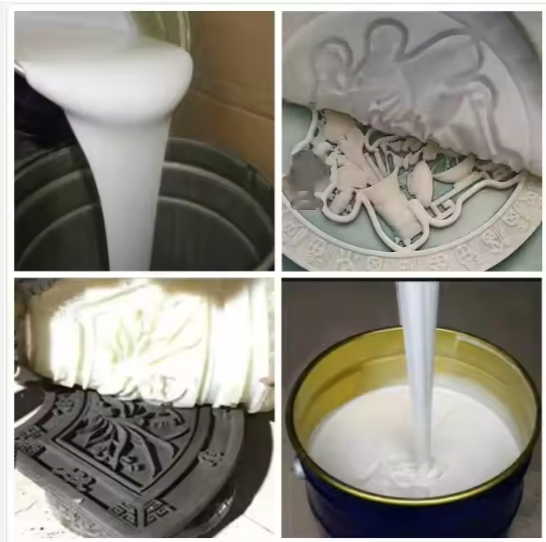

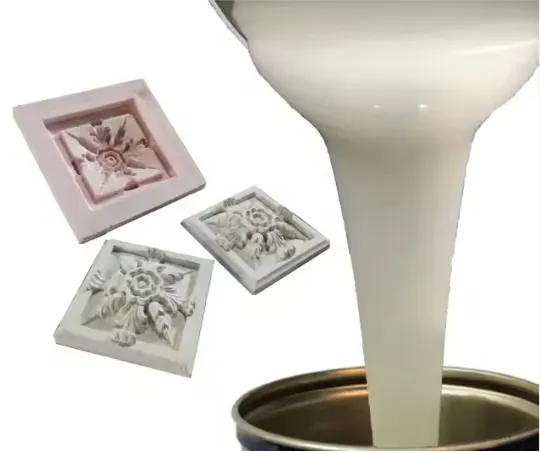

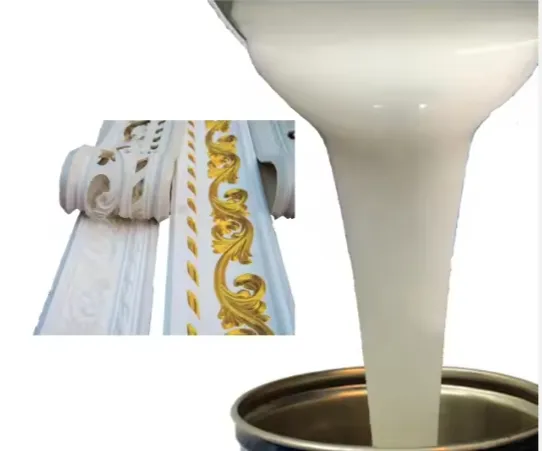

Application Fields

Large quantity molding: art crafts, furniture, architectural elements, garden ornaments.
Industrial use: shoe, tire, soap, candle, vacuum bagging, wind turbine blades.
Materials: resin, PU, PVC, polyester, gypsum/plaster, wax.

Features & Advantages

Food grade, FDA certified
Ultra-low shrinkage (≤0.1%)
Excellent flow leveling
High temperature resistance

Durable tear & tensile strength
Anti-deformation & Not oily
Easy demolding process
Acid and alkali resistance

Technical Properties Index

Category	Property	Test Report (INI-E640)
Before Curing	Appearance	Translucent fluid
Before Curing	Viscosity (cps)	5800±500
Operating	Mixing Ratio	1:1 or 10:1
	Operating Time (25ºC)	30~50 Mins
	Curing Time	3~5 Hours
After Curing	Hardness (Shore A)	40±2
	Tear Strength (kN/m)	22±3
	Elongation (%)	460~560
	Shrinkage (%)	≤0.1

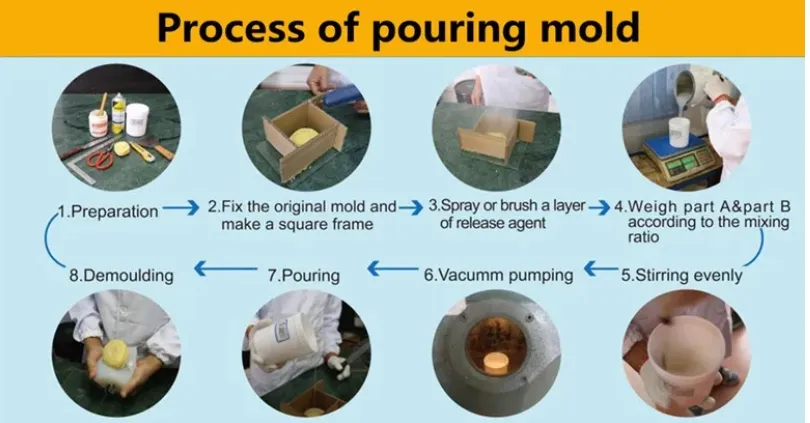

Operation Instructions

1. Mixing: Mix part A and part B evenly with 1:1 ratio by electronic weight.

2. Vacuuming: (Recommended) De-air for < 10 mins to ensure no bubbles in the finished mold.

3. Casting: Pour onto the original. Suggest setting for 12 hours after demolding before production.

Frequently Asked Questions

What is the shelf life of the silicone rubber?

The shelf life is twelve (12) months when stored in a dry, cool place in its original package under 25ºC.

Is this silicone safe for food-related applications?

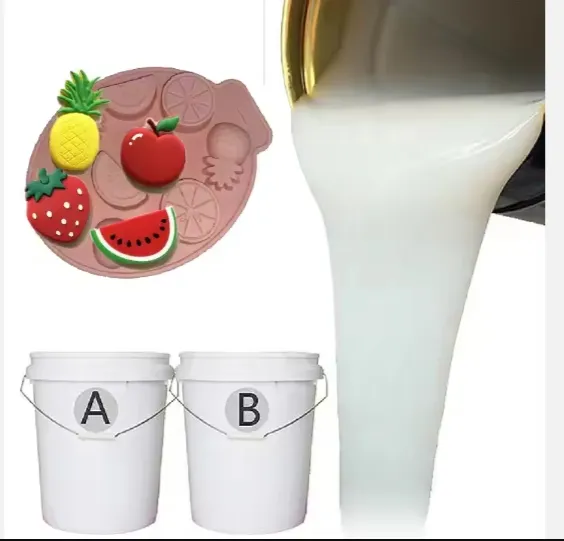

Yes, INI-E640 is food grade and FDA certified, making it suitable for chocolate, cake, or candy molds.

How can I avoid bubbles in my mold?

It is strongly recommended to use a vacuum chamber to remove entrapped air for 1-2 minutes until the mixture collapses.

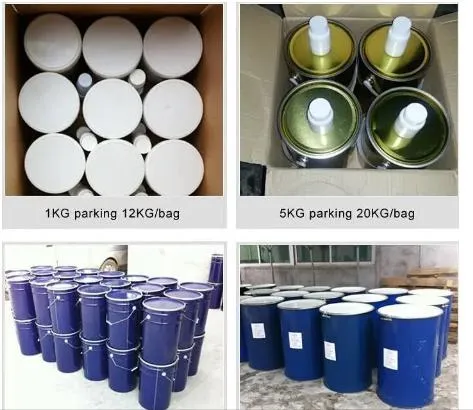

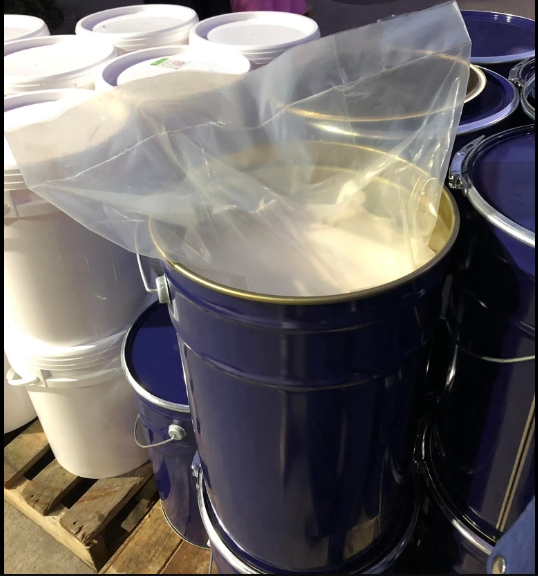

What are the available packaging sizes?

We offer various sizes including 5KG, 20KG, 25KG, and 200KG per drum (metal or plastic options available).

What is the shrinkage rate of this product?

The INI-E640 series features a very low shrinkage rate of less than 0.1%, ensuring high precision for replicas.

Can the curing time be adjusted?

Yes, properties like viscosity, operating time, and curing time are adjustable based on specific production requirements.
