Product Description

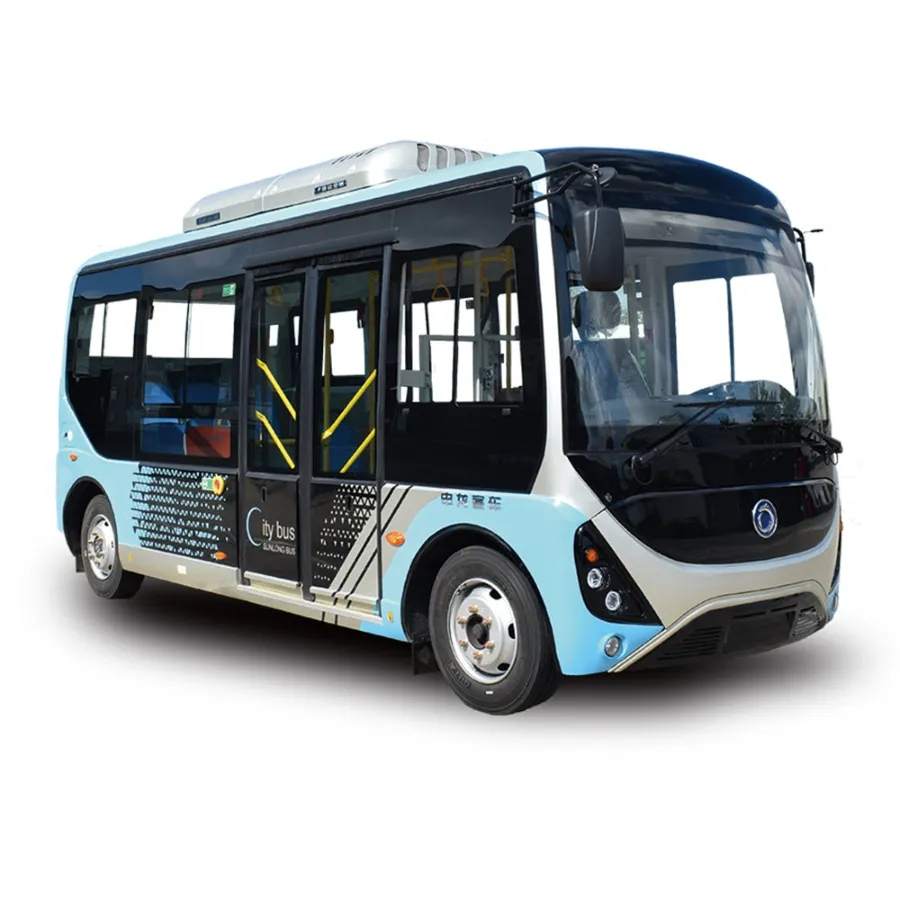

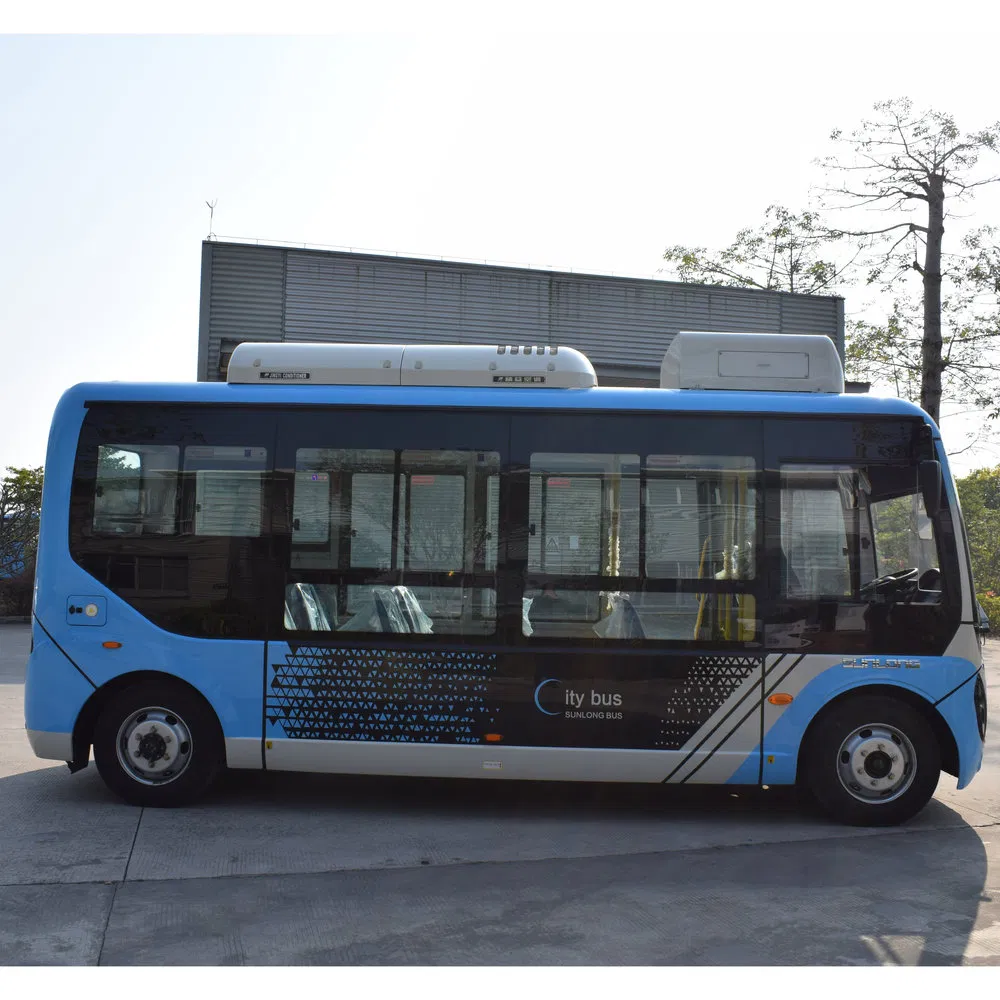

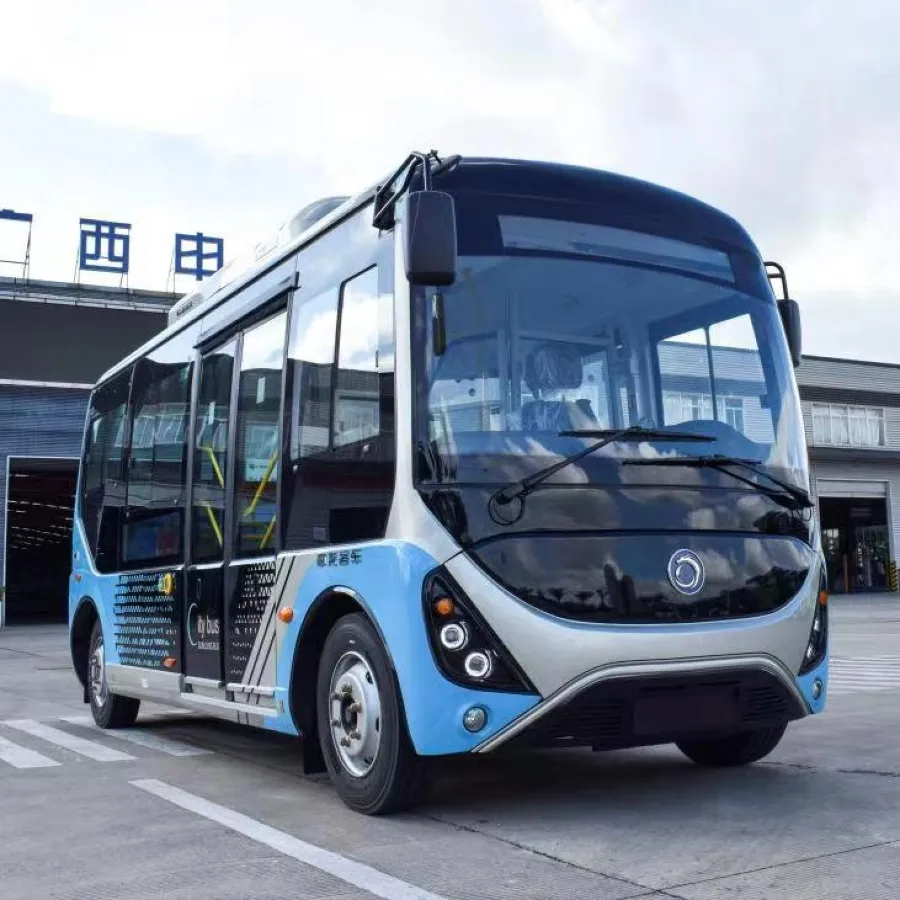

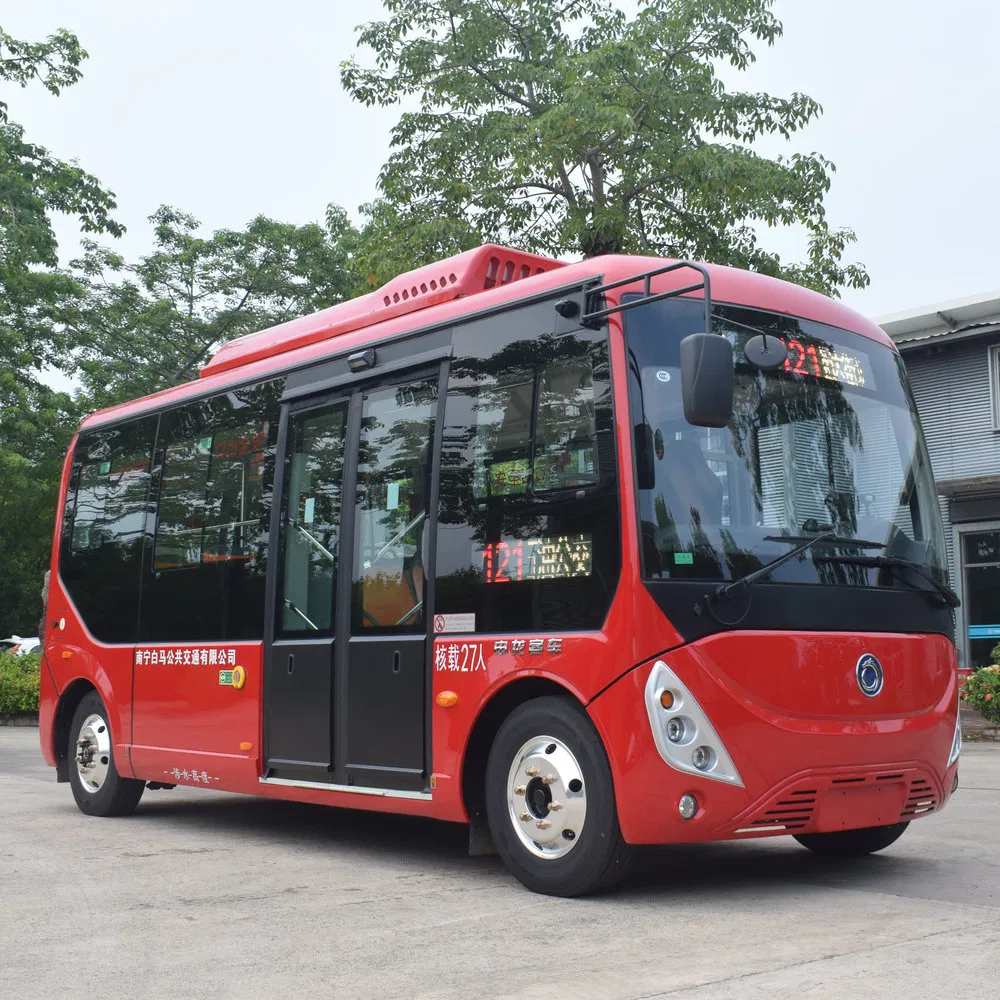

PURE ELECTRIC LOW-ACCESS CITY BUS
The HQK6601 is a 6-meter electric bus engineered for modern urban transit. It features a spacious low-floor interior for effortless boarding and exceptional maneuverability for dense city streets. Utilizing advanced LFP battery technology, it offers a range up to 530 km, making it a reliable, zero-emission solution for high-frequency routes and sustainable public transport.
Main Features & Key Functions
1
COMPACT LOW-ACCESS DESIGN
Low-floor entry and short overhangs ensure easy boarding and agile operation in congested environments.
2
POWERFUL ELECTRIC MOTOR
120 kW peak power provides strong acceleration and stable climbing with quiet, zero-emission efficiency.
3
LONG-RANGE SYSTEM
Advanced LFP battery system supports a range of 440–530 km, reducing charging frequency.
4

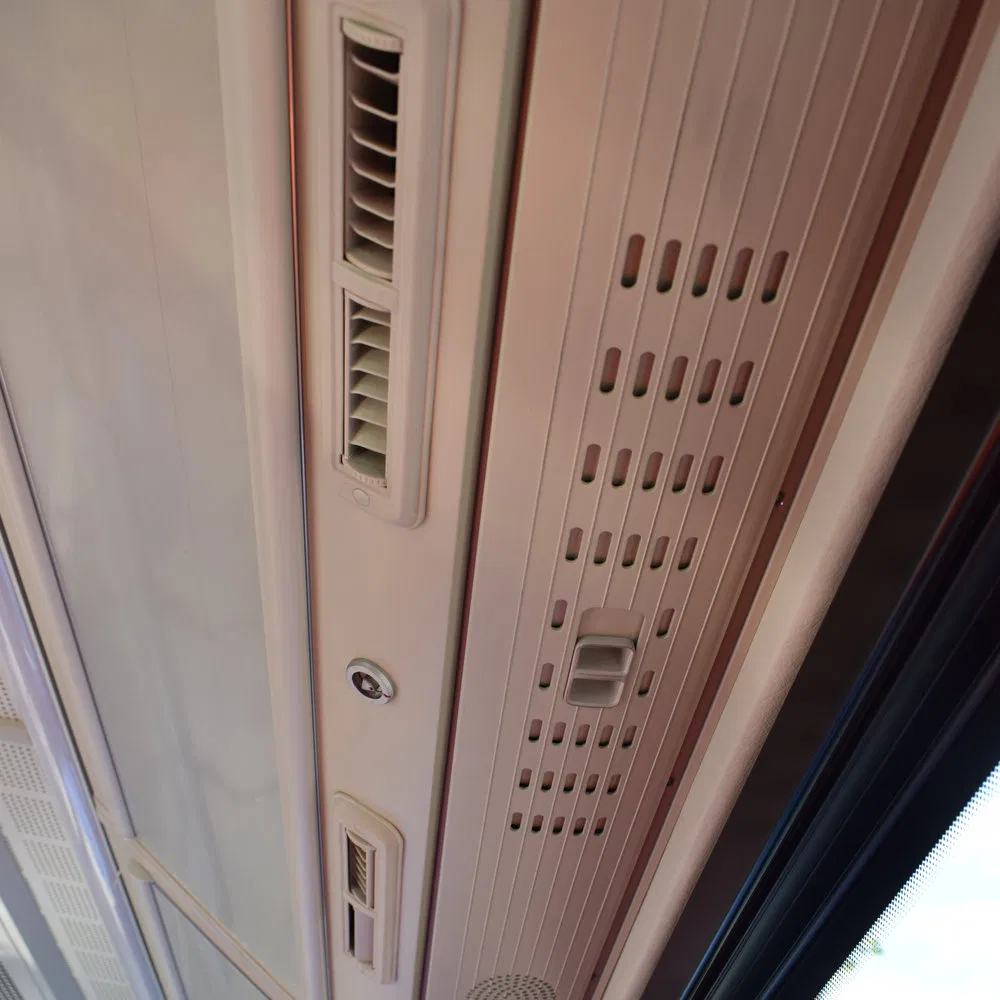

MODERN INTERIOR
Spacious cabin with large panoramic windows creates a bright and comfortable environment for up to 29 passengers.
Technical Specifications
| ITEM |
HQK6601UBEVU |
HQK6601UGBEVS1 |
| VEHICLE PARAMETERS |
| Dimensions (mm) | 6010×2060×2900 | 5990×2060×2900 |
| Passenger Capacity | 29/10-15 | 19/10-15 |
| GVW / Curb Weight (kg) | 6500 / 3950 | 6500 / 4180 |
| Top Speed (km/h) | 69 | 69 |
| Range (km) | 440 | 530 |
| POWER SYSTEM |
| Battery Type | LFP | LFP |
| Storage Capacity (kWh) | 100.27 | 115.92 |
| Rated / Peak Power (kW) | 65 / 120 | 65 / 120 |
| CHASSIS |
| Wheelbase (mm) | 4210 | 4190 |
| Suspension | Leaf Spring | Leaf Spring |
| Tyre Specs | 215/75R17.5 | 215/75R17.5 |
Usage Scenarios
- 🚀 Urban Public Transport: Ideal for regular city lines and BRT operations in congested areas.
- 🚉 Metro-Community Shuttles: Connects residential areas to metro stations as a "last-mile" solution.
- 🏞️ Scenic Areas: Panoramic windows and eco-friendly operation suit resorts and tourist attractions.
- ✈️ Internal Circulation: Perfect for airports, university campuses, and large industrial parks.
Frequently Asked Questions
What is the charging time and driving range?
Depending on the configuration, the bus offers a range of 300-530 km. With fast charging, it can reach 80% battery capacity in approximately 1-2 hours.
What is the warranty policy for this electric bus?
We provide a 2-year warranty for the complete vehicle. Major components like batteries and motors are subject to specific long-term warranties from their respective manufacturers.
Can the vehicle be customized for different climates?
Yes, we can adapt the battery thermal management system, chassis, and bodywork to withstand extreme heat, cold, or heavy rain to ensure stable performance in your local environment.
What is the typical battery lifespan?
The LFP batteries are designed to last between 8 to 10 years or a specific number of charging cycles. We also provide health monitoring and support for battery replacement.
Is the vehicle suitable for "last-mile" transportation?
Absolutely. Its 6-meter compact body and flexible turning radius make it specifically designed for navigating narrow community streets and connecting metro stations.
What is the production lead time?
Generally, the production time is approximately 3 months following the receipt of the advance payment. Shipping schedules are arranged based on the specific destination and balance payment.
