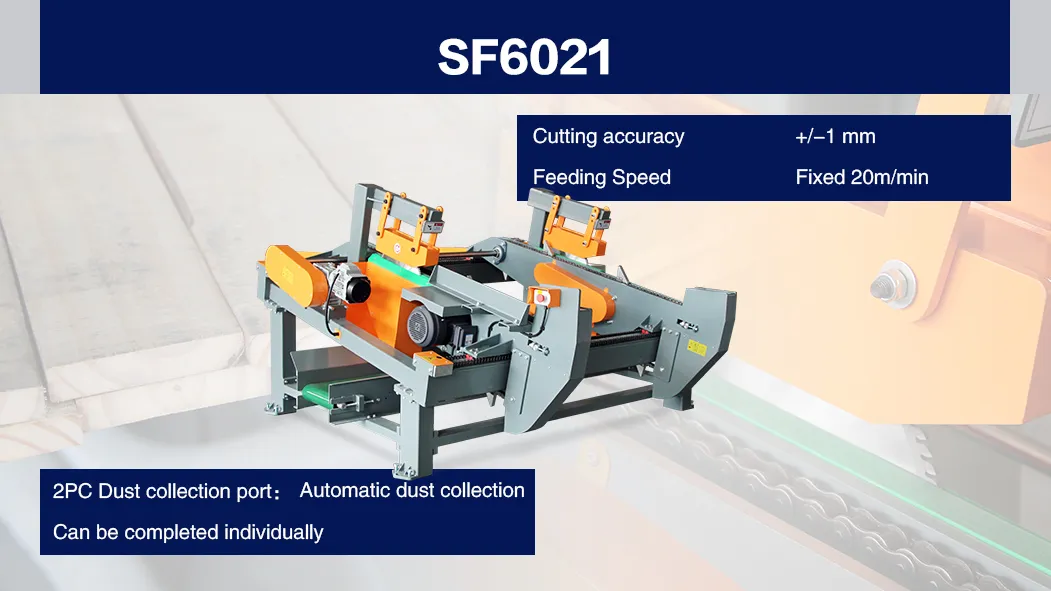

Key Application: Highly efficient woodworking saw machine for high-speed production of wood pallets. The fixed feeding speed of 20m/min ensures consistent output for industrial requirements.
| Parameter | Value |
|---|---|
| Model | SF6021 |
| Cutting Length | 460-1550/2050mm |
| Cut Off Length | Left side max. 95mm, right side no limit |
| Cutting Width | 10-300mm |
| Saw Blade Diameter | Inside Ø30mm, Outside Ø450mm 120T |
| Cutting Accuracy | ±1mm |
| Cutting Motor | 2 * 4kw (2850RPM) |
| Feeding Motor | 1.1kw |
| Total Motor Power | 9.47kw |
| Dust Collection Port | 100mm * 2pc |
| Machine Size | 2200 * 2600 * 1400mm |

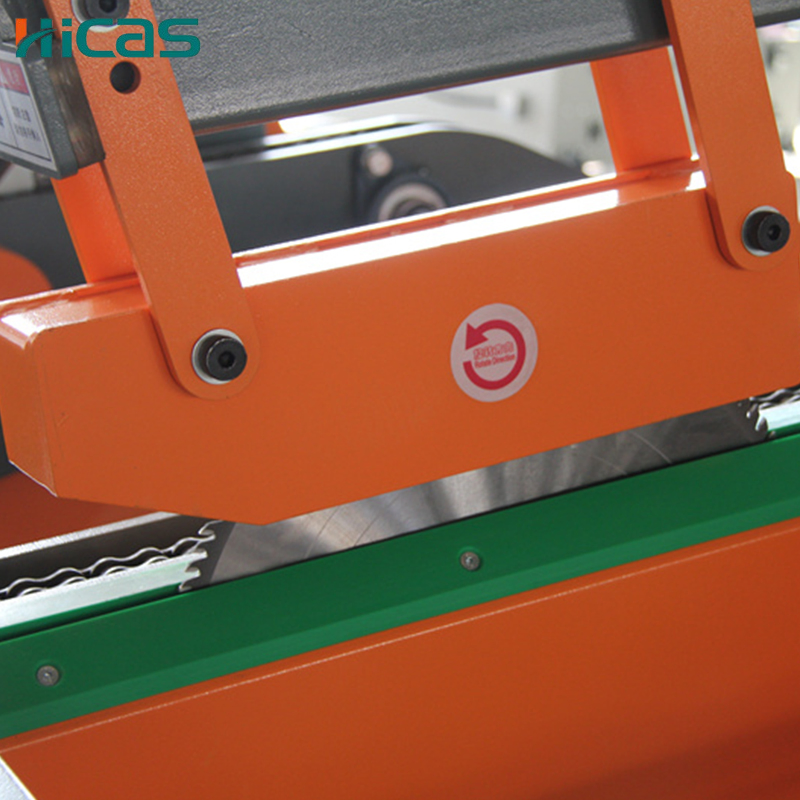

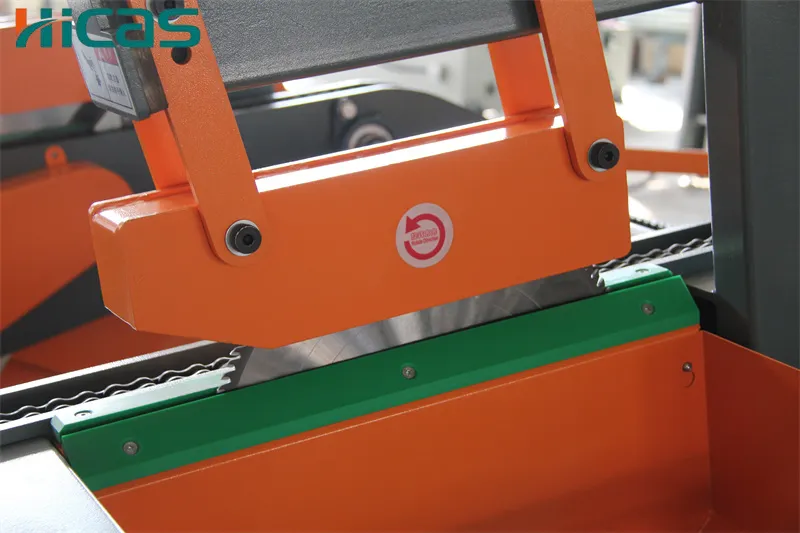

Saw Blade System: Equipped with safety covers and dual dust collection ports.

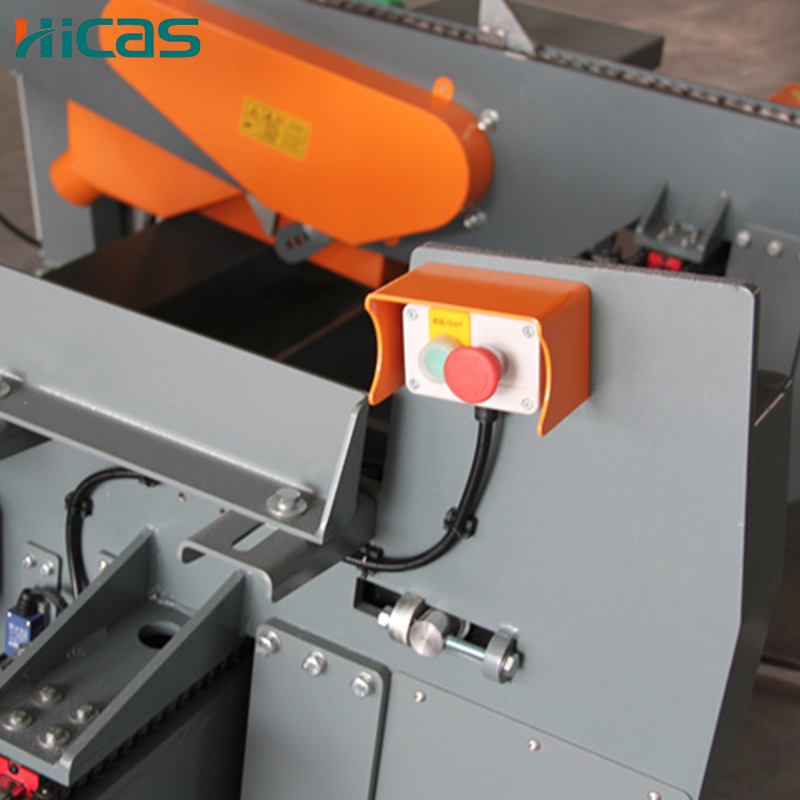

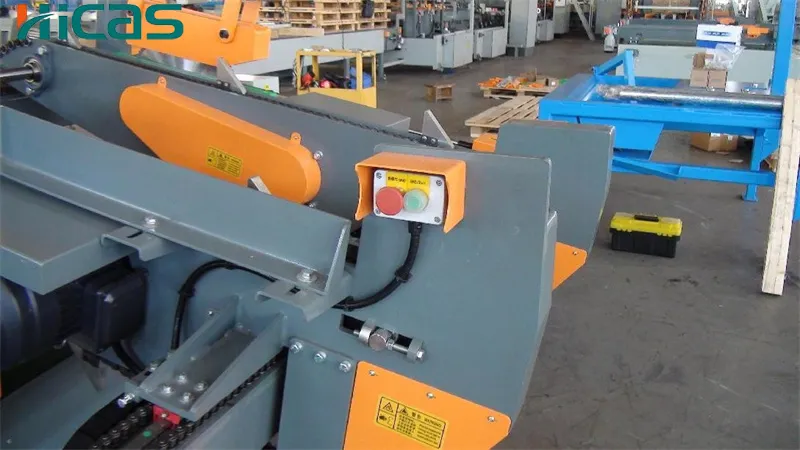

One-Button Start: Convenient operation for feeding chain, blade, and conveyor.

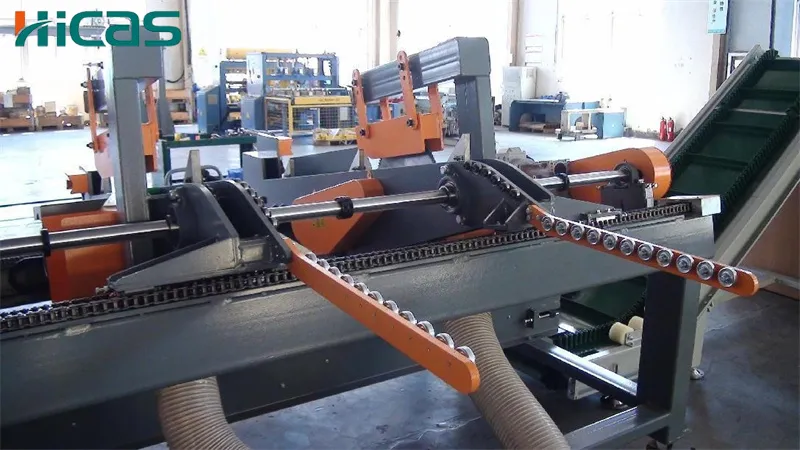

Outfeed Arm: Integrated wheels facilitate easier material transferring.

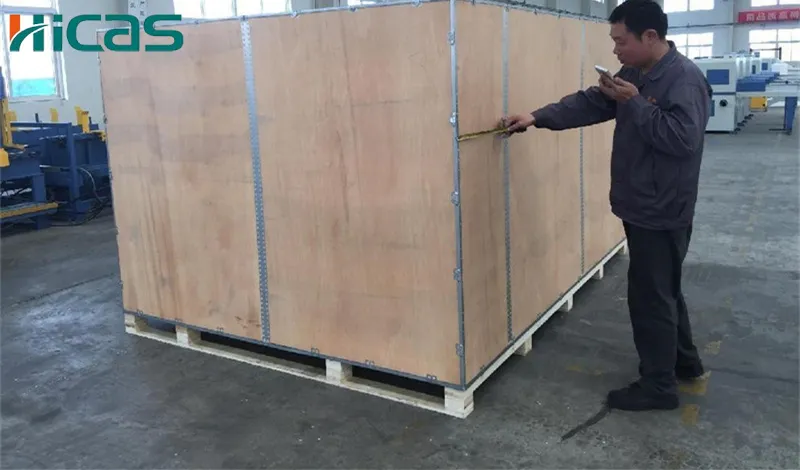

Secure Packaging: Nailless plywood box for maximum transport protection.
Separate Motors: Individual motors for each head ensure heavy timber capability.

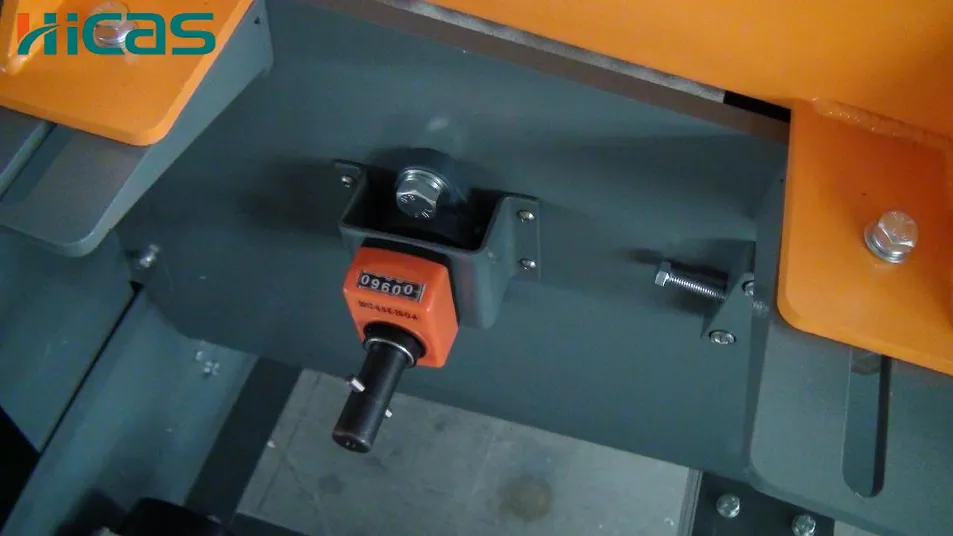

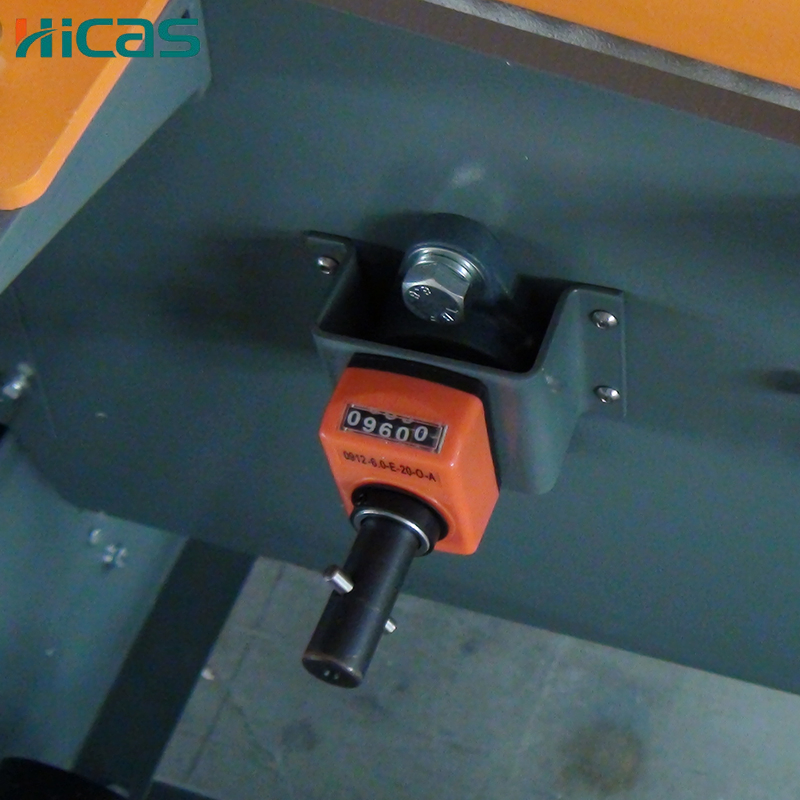

Precision Adjustment: Handcrank with digital display for sawing head distance.
