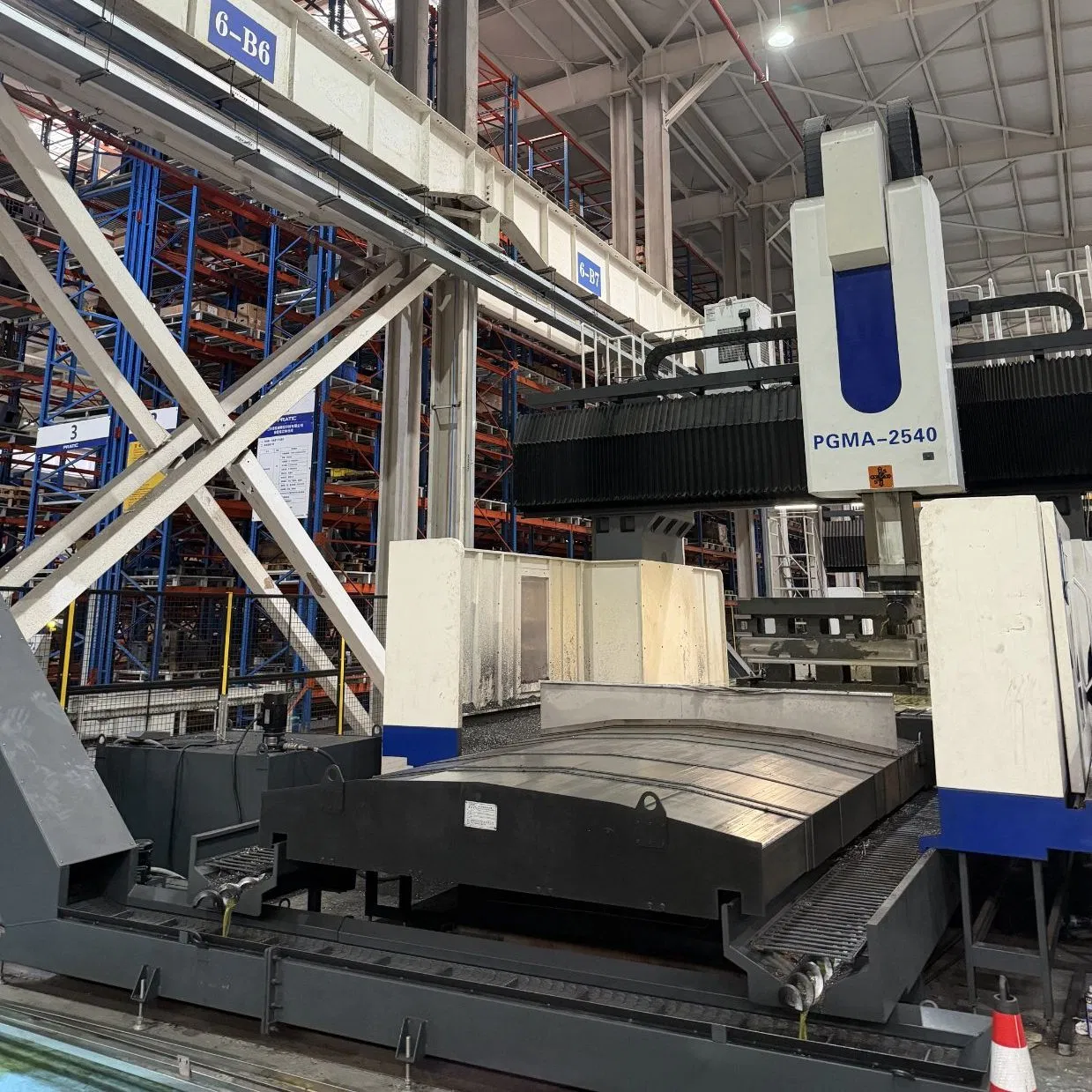

The equipment is a heavy-duty fixed beam gantry. Suitable for processing in industries such as large molds, ships, rail transit, and machinery manufacturing.
The Z-axis feed of the machine adopts dual motor and dual screw transmission, which has better dynamic response, and improves the smoothness of the machining surface.
| Specification | Unit | PGMA-3040/60/80 |
|---|---|---|
| Table size | mm | 3000×4000/6000/8000 |
| X travel | mm | 4200/6200/8500 |
| Y/Z travel | mm | 4500/1600 |
| Max. loading of table | T | 24/36/48 |
| Distance from spindle nose to worktable | mm | 300~1900 |
| Distance between the two columns | mm | 3700 |
| RAM size | mm | 450×450 |
| Spindle speed | r/min | 4500 |
| Spindle power (S1/S6-40%) | kW | 22/33 |
| Spindle torque (S1/S6-40%) | N.m | 1076/1614 |
| Rapid on X/Y/Z/W | m/min | 10/15/10/3 |
| Machine height | mm | 8000 |
| Weight | T | 80/90/100 |

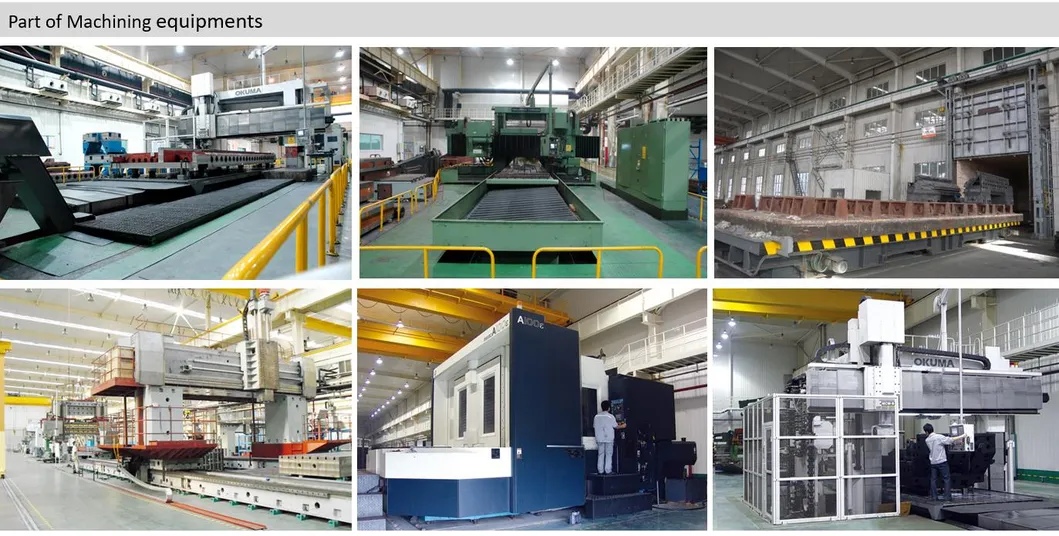

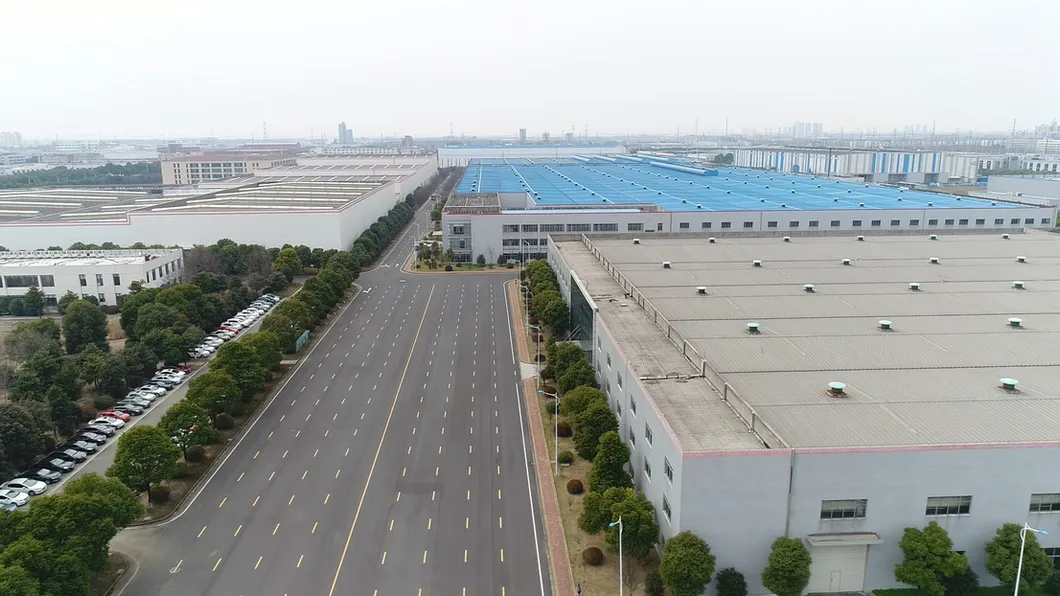

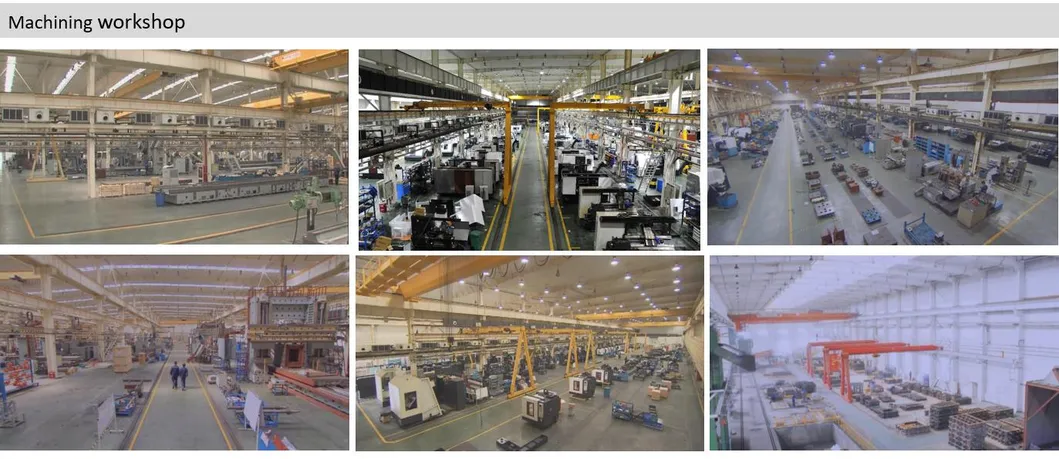

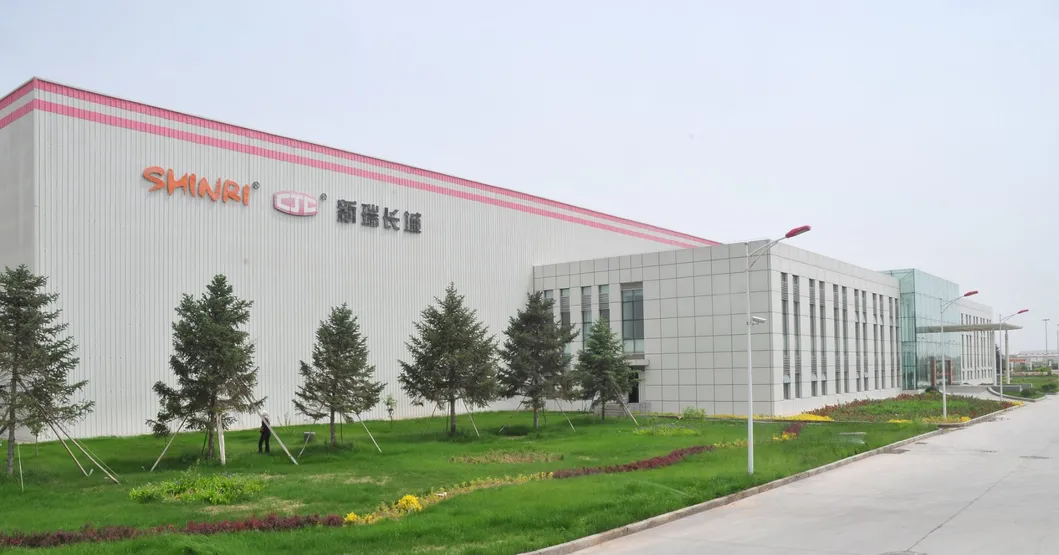

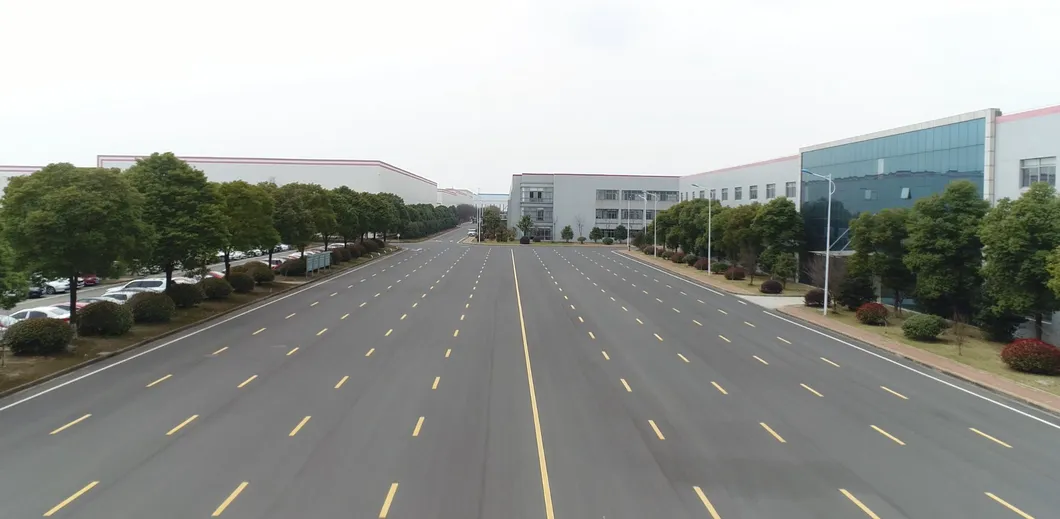

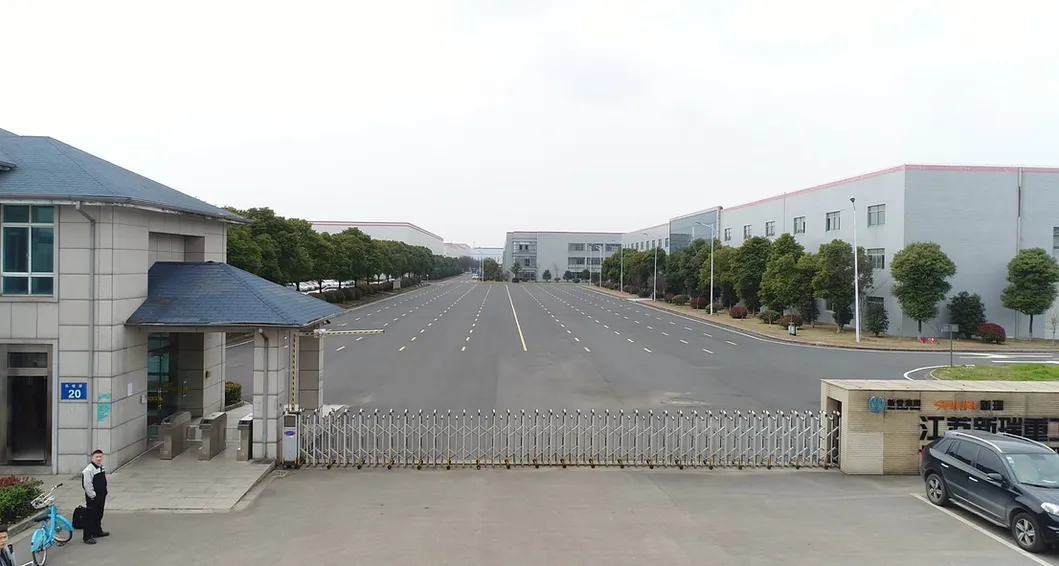

The manufacturing group operates modernized plants covering nearly all types of machines. By embracing high technology, the manufacturing processes provide optimized solutions for traditional applications. The research and development centers utilize high-precision mother machines from world-class makers, achieving a yearly production capacity of over 3,500 units.
Product series include VMC, HMC, CNC lathe, gantry boring milling, 5-axis synchronous machines, and various industrial gear boxes. These are broadly applicable to aerospace, automobile, shipbuilding, new energy sources, and railway traffic.
