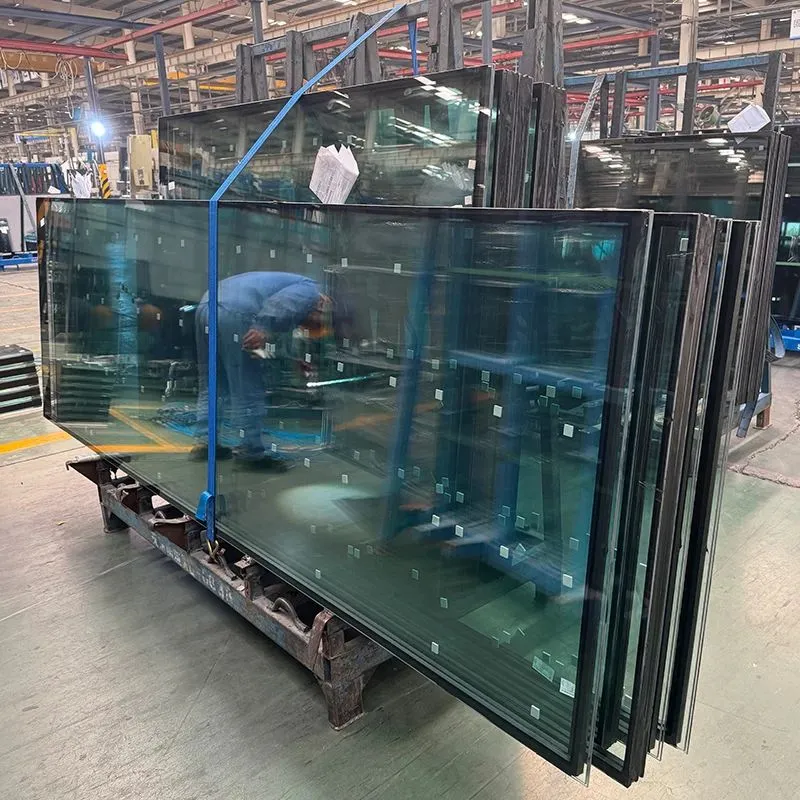

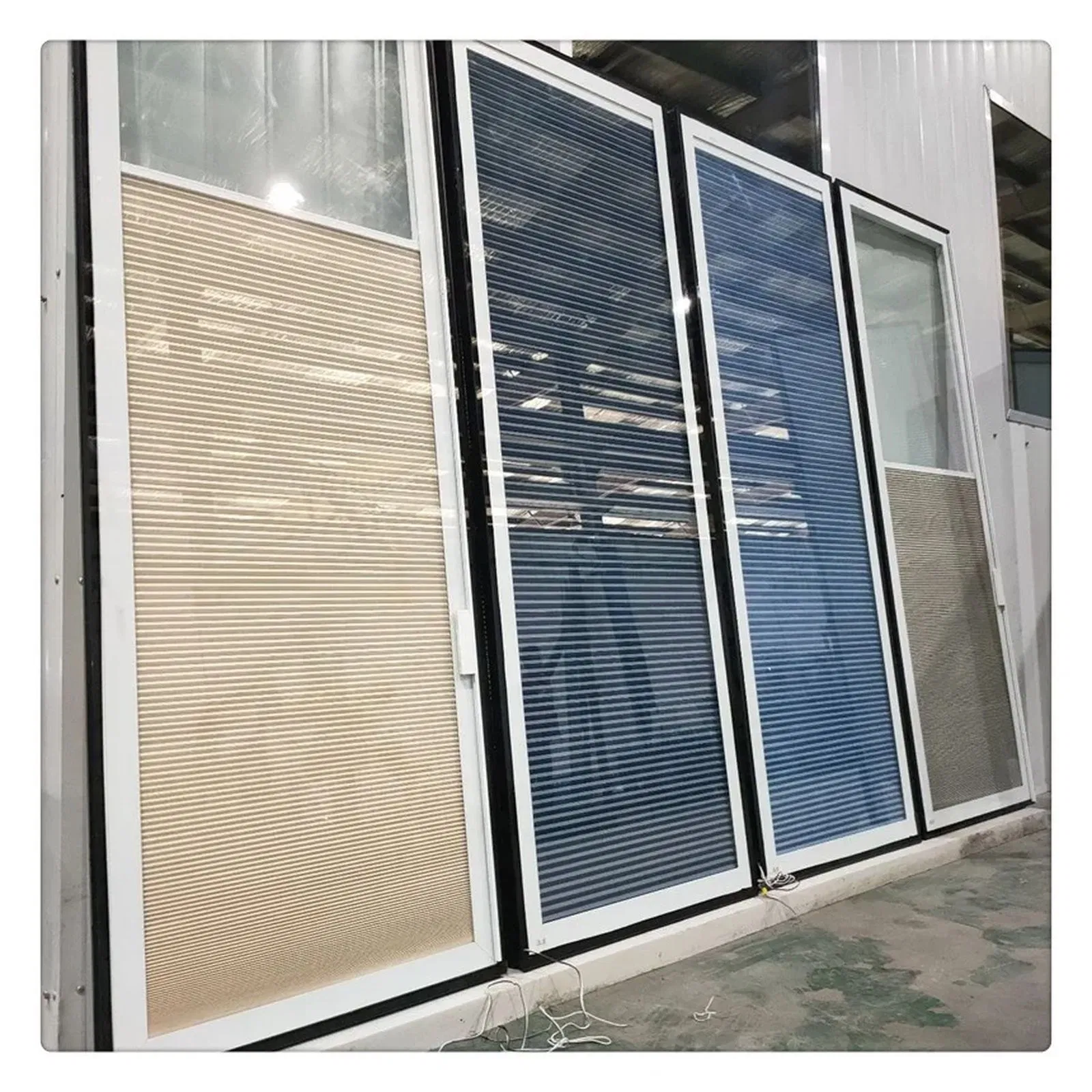

Insulating glass, also called insulated glass, are sealed units. It refers to two or more lites of glass glazed along the edges with spacers. The composed glass could be monolithic, or laminated glass, with or without coatings (low e coating as typical). There are types of spacers available, such as stainless steel, aluminum, warm edge spacers in various colors.
The space between the glass is sometimes filled with noble gas, such as argon or krypton. 90% filled, which is more helpful to reduce energy consuming. The most common architectural insulating glass unit configuration is 1/4" glass, 1/2" air space and 1/4" glass. Commonly referred to as an "IGU," insulating glass is the most effective way to reduce air-to-air heat transfer through the glazing.
| Glass Type | Insulating Glass |
| Double Glass Thickness | 3mm+6A+3mm, 5mm+6A+5mm, 6mm+9A+6mm, 6mm+12A+6mm, etc. |
| Glass Combination Type | Tempered, Laminated, Low-e, Frosted, Silkscreen Printing, Digital Printed, etc. |
| Low E Type | Double silver low e, triple silver low e, online hard coated low e: Vitro Solarban 60, Solarban 70, etc. |
| Spacer Options | Stainless steel, aluminum, TGI (warm spacer), super spacer |
| Spacer Thickness | 6mm, 9mm, 12mm, 16mm, 19mm (1/4'', 11/32'', 1/2'', 9/16'', etc.) |
| Gas Filling | Air, Argon, Krypton, etc. |
| Glass Color Option | Clear, Low Iron, Euro Grey, Dark Grey, Bronze, Ford Blue, etc. |

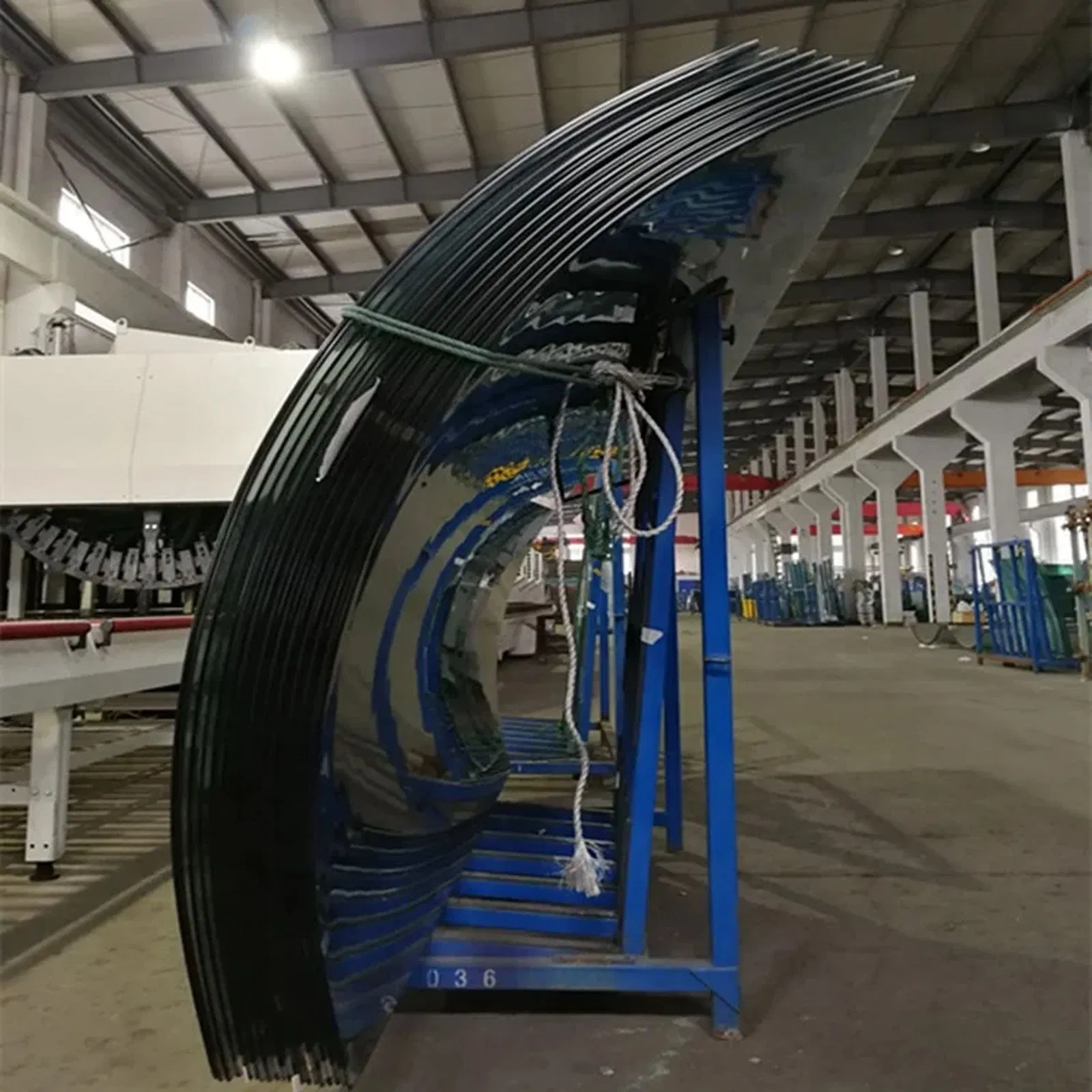

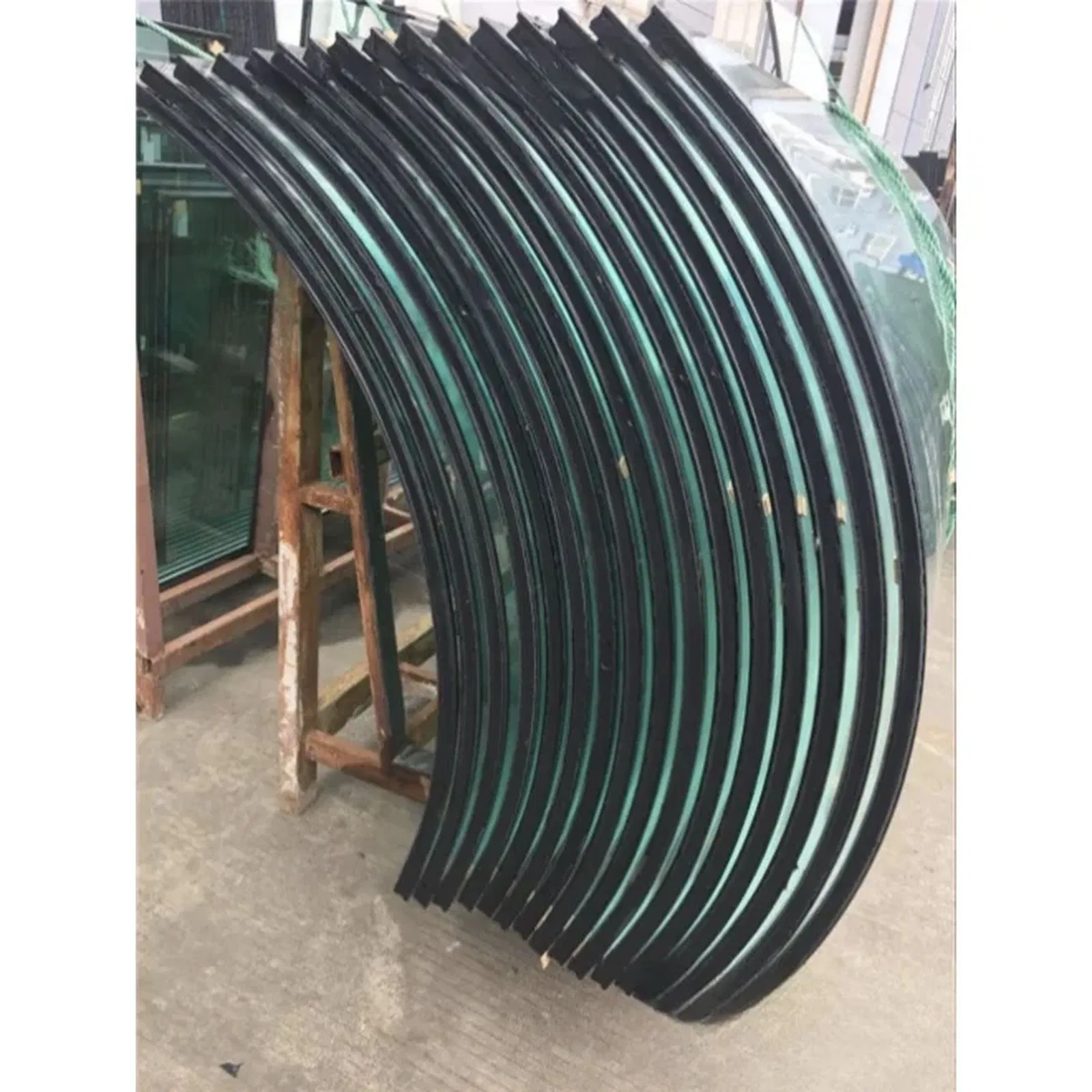

| Size | Max: 18000mm L * 3660mm H (Flat), 3300x8000mm (Curved) |

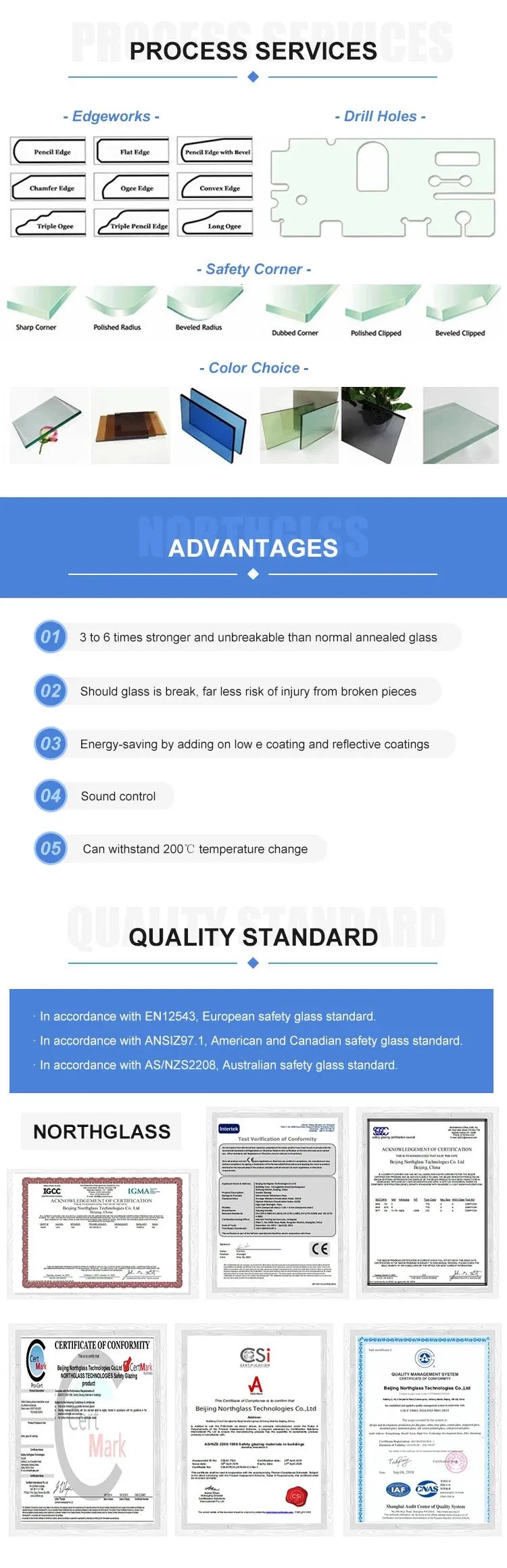

| Edge Processing | Flat Edge, Seamed Edge, Polished Edge, Bevelled edge, Round Edge |
| Lead Time | Generally 2-4 weeks, depend on order quantity. |
| Terms of Payment | 30% down payment before production, 70% balance TT at shipment; L/C |
