Coated Glass Overview:
Our Coated Glass series includes high-quality float glass with metallic coatings fused at 1200ºC. This provides a one-way mirror effect, ensuring privacy while maintaining building aesthetics.
On-line Reflective Glass: Processed using Chemical Vapor Deposition (CVD) technology. It is highly durable and can be cut, heat-strengthened, or toughened easily.
Off-line Reflective Glass: Produced via Magnetron Sputtered Vacuum Deposition (MSVD), allowing for various colors and superior thermal performance.
PRODUCT FEATURES

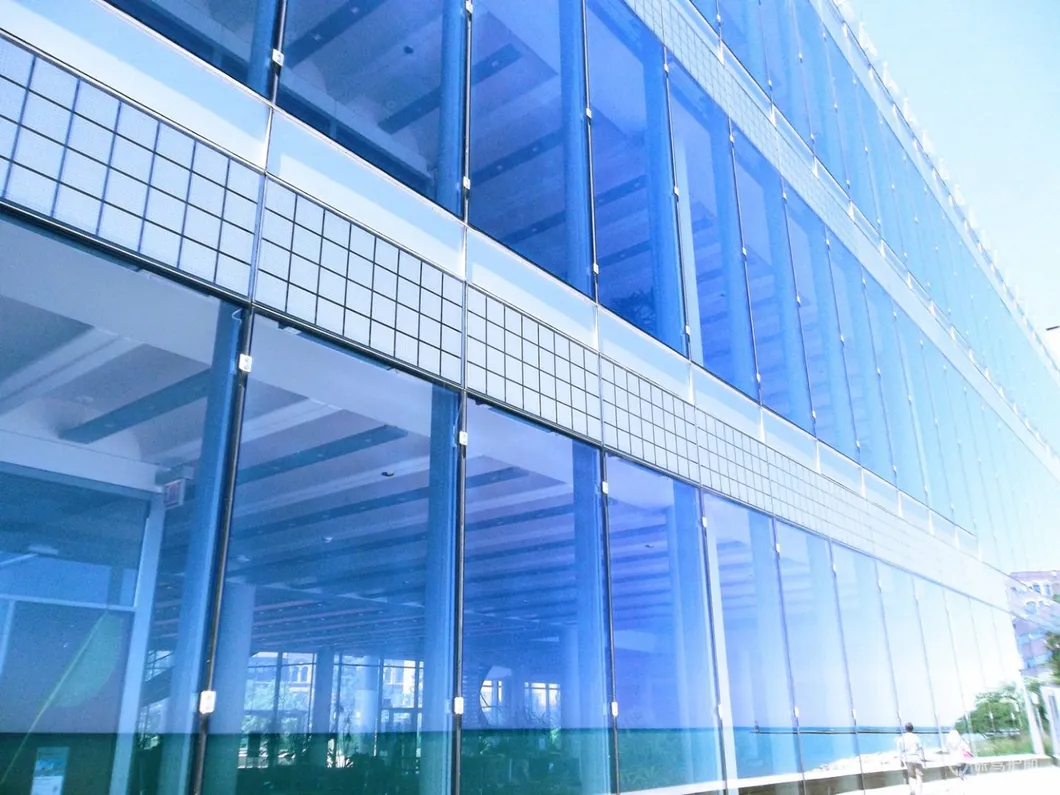

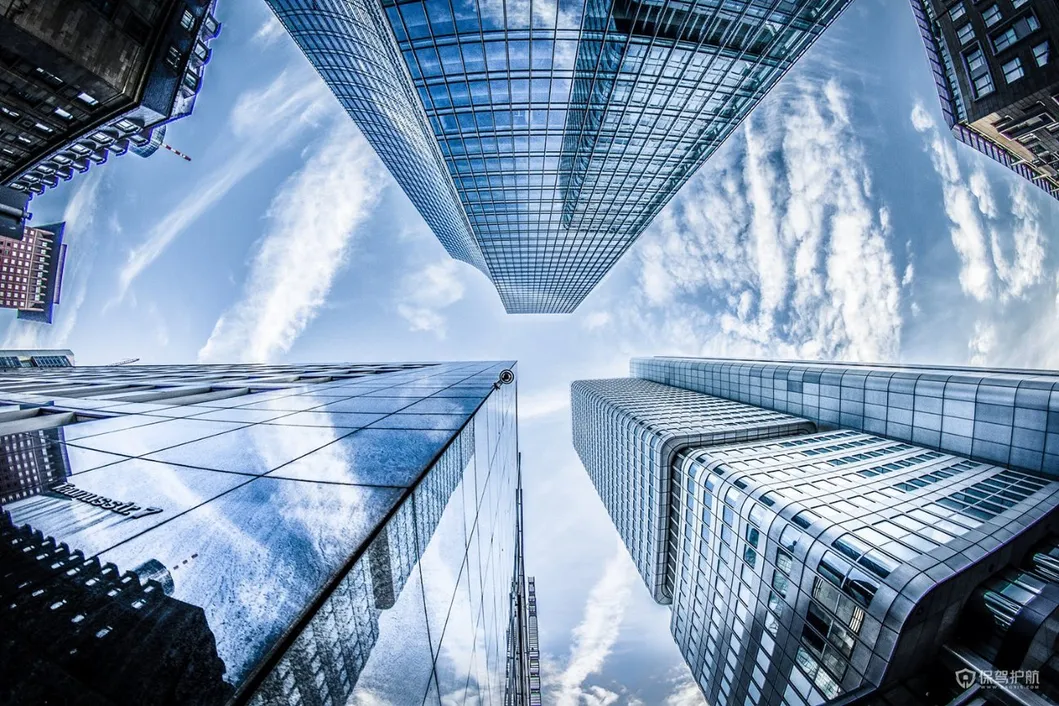

PRODUCT APPLICATION
| No. | Product Name | Transmittance (VT) | UV Light Trans. | Visible Light Trans. | Visible Light Refl. | Direct Sunlight Trans. | Shadowing Coeff. (SC) | SHGC |
|---|---|---|---|---|---|---|---|---|
| 1 | 5mm Bluestar Grey | 25% | 4.68% | 24.93% | 17.13% | 32.67% | 0.51 | 0.482 |
| 2 | 6mm Bluestar Grey | 20% | 3.50% | 20.82% | 14.09% | 27.39% | 0.47 | 0.455 |
| 4 | 4mm Ford Blue | 33% | 7.81% | 32.70% | 38.60% | 42.20% | 0.582 | 0.506 |
| 8 | 5mm Dark Green | 28% | 4.36% | 27.31% | 26.52% | 28.14% | 0.47 | 0.446 |
| 10 | 5mm Clear Low-E | 80% | 39.94% | 80.17% | 10.45% | 68.81% | 0.81 | 0.723 |
| 12 | 5mm Dark Blue | 20% | 12.07% | 23.35% | 13.46% | 43.49% | 0.59 | 0.546 |
