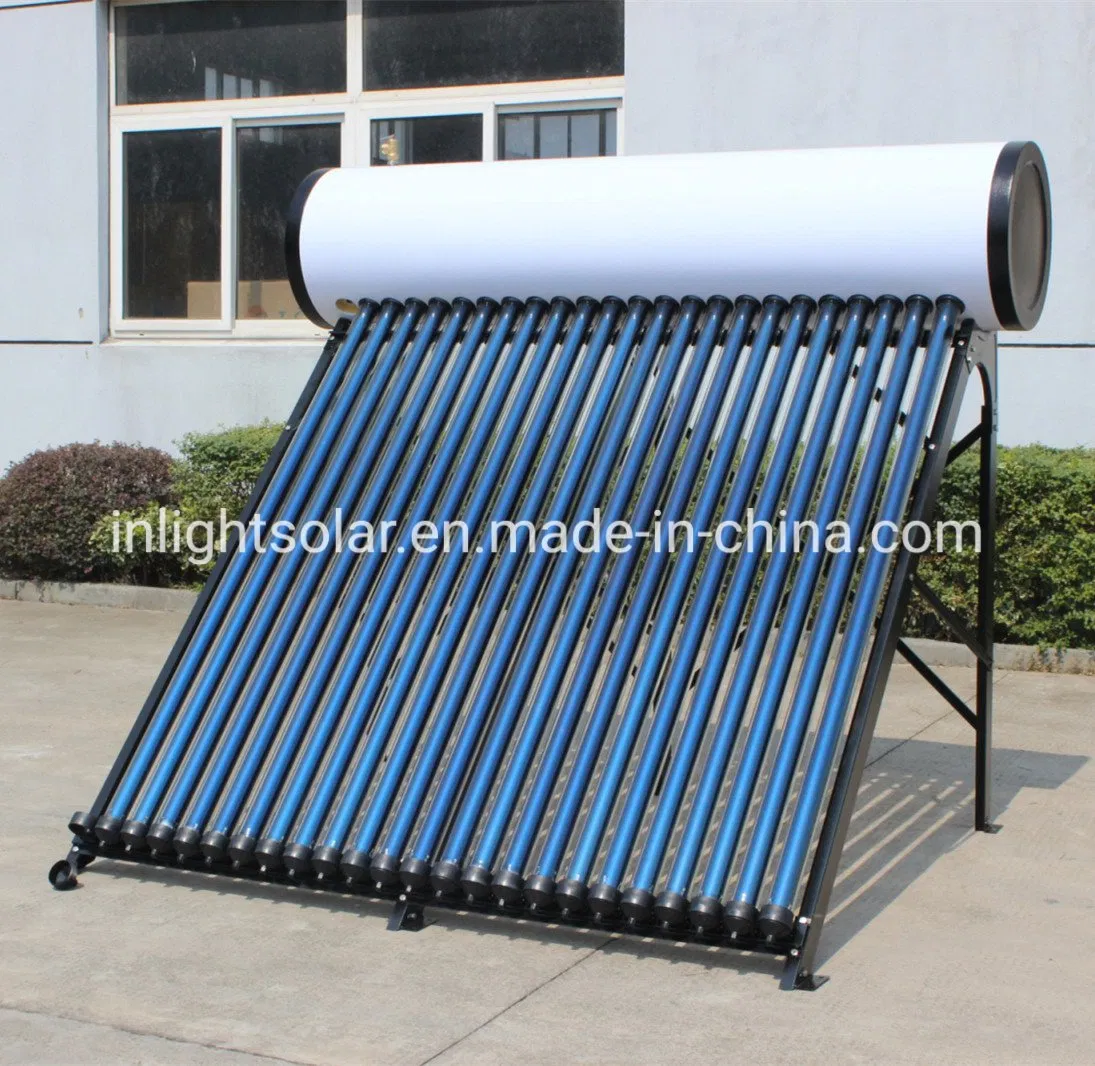

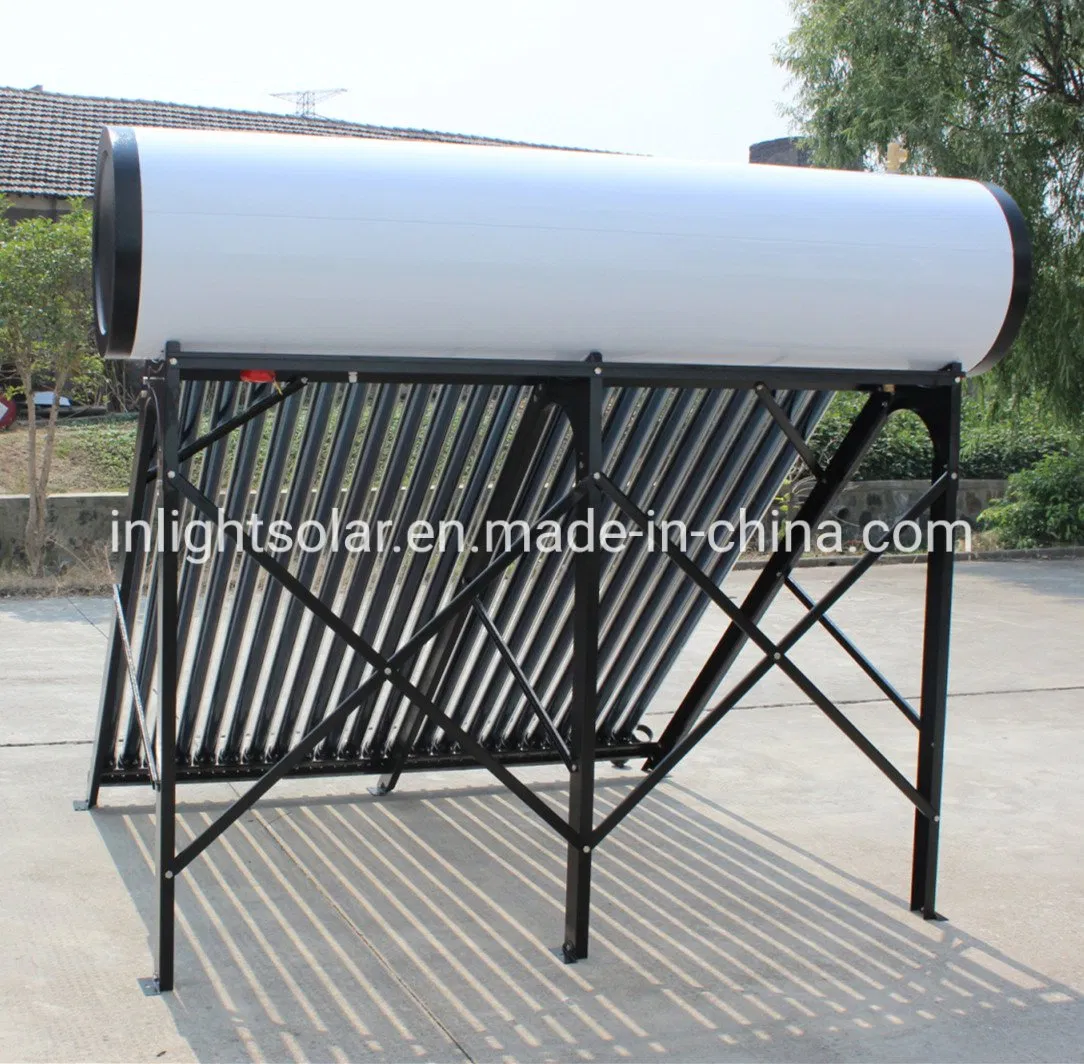

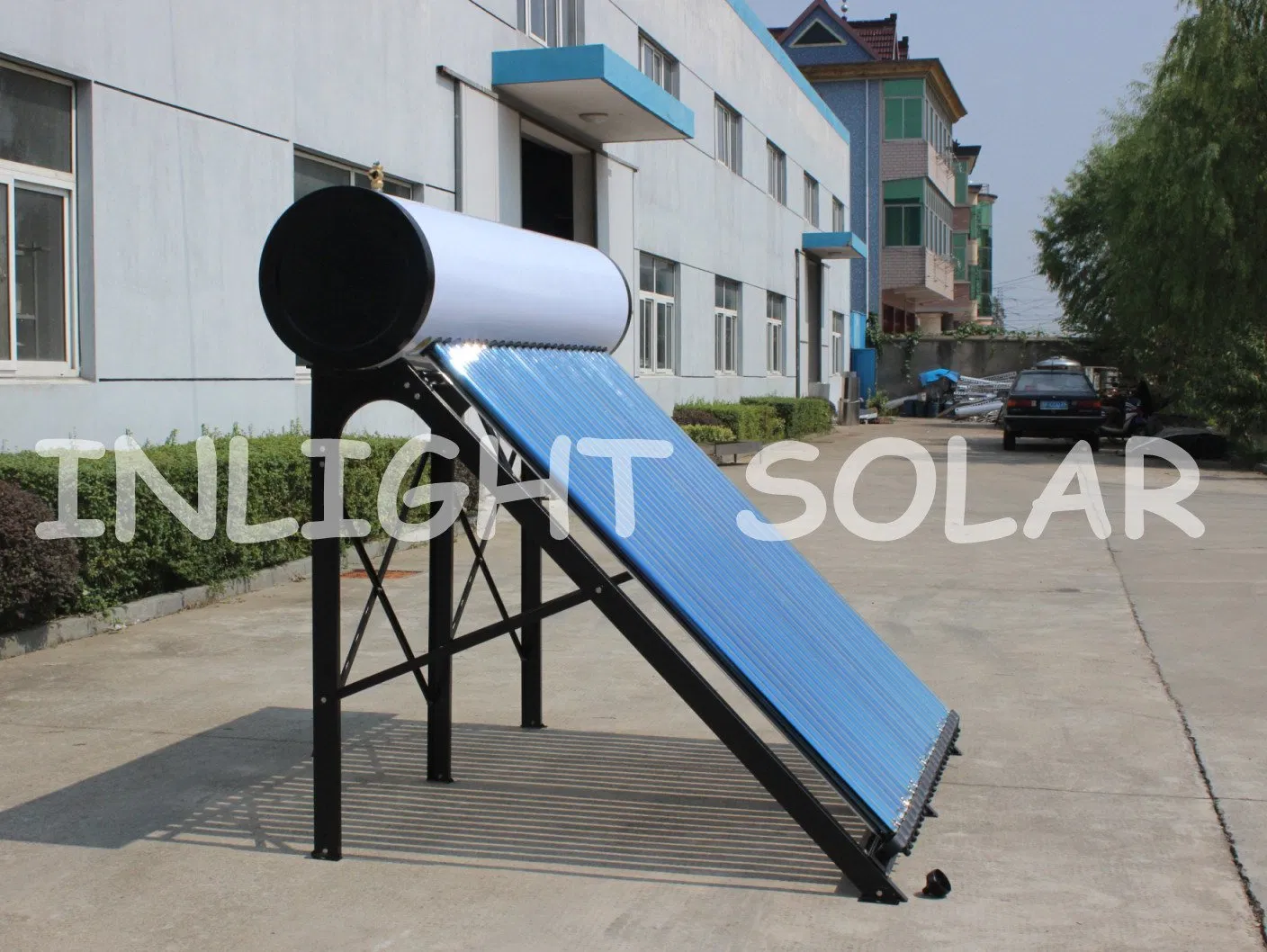

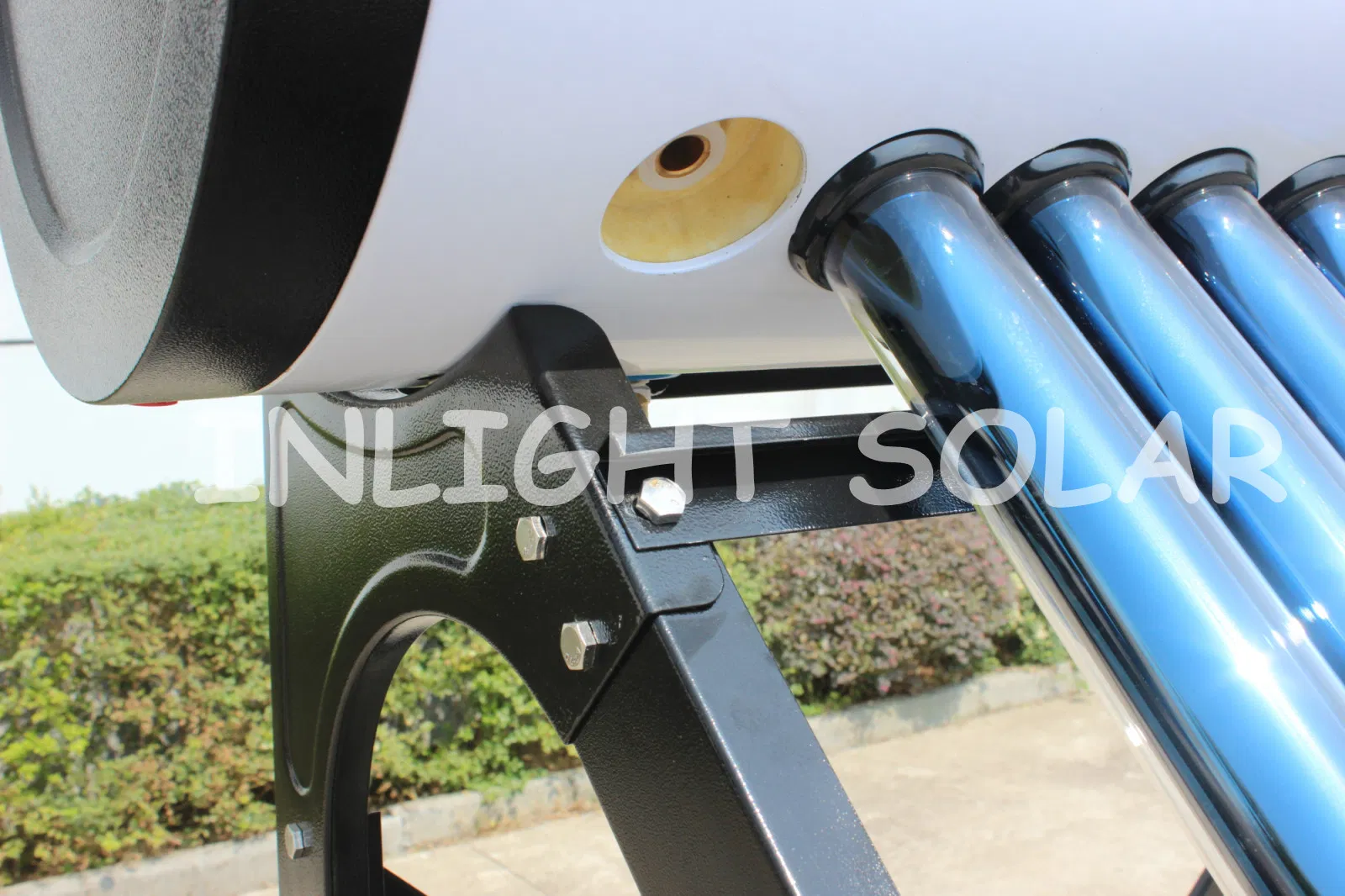

10-36tubes Color Steel Compact Heat Pipe Pressurized Solar Water Heater for Flat Roof

1 / 5

10-36tubes Color Steel Compact Heat Pipe Pressurized Solar Water Heater for Flat Roof

Customization:	Available
Max. Capacity:	>200L
Structure:	Compact Type

Send Inquiry

Product Description

Overview & Basic Info

Model NO.ILH-5818G470C-25H

PressurePressurized

Interior MaterialStainless Steel

Collector ComponentsHeat Pipe Vacuum Tube

CertificationCE, ISO9001, CCC

TypeCompact, Pressurized

Tube TypeHeat Pipe Vacuum Tube

ApplicationBathroom Water Heating

AdvantagesAnti-Freezing, High Efficiency

Production Capacity6000 Sets/Month

OriginChina(Mainland)

HS Code8419120000

📦

Packaging & Delivery

Package Size216.00cm * 49.00cm * 50.00cm

Package Gross Weight30.000kg

Transport PackageExport Carton

★

Our Advantages

High Performance Heat Pipe Pressurized Solar Water Heater with intelligent operation, energy saving, and high efficiency.

Extreme Weather Ready System remains operational even in freezing conditions as low as -36°C.

Advanced Thermal Tech Copper heat pipe tube and inner medium for thermal transmission, ensuring quick startup and super efficiency.

Reliable Operation No water flows into vacuum tubes; the system works well even if one or several heat pipe vacuum tubes are withdrawn.

Pressure Resistant Withstands pressure more than 6 Bar, allowing direct connection with tap water for comfortable hot water use.

Long Lifespan Engineered for durability with a service life exceeding 30 years.

📋

Product Parameters

Heat Pipe Vacuum Tube	Spec. (mm)	Φ 47× 1500 / Φ 58× 1800
	Tube (pcs)	14 / 16 / 18 / 20 / 24 / 28 / 30 / 36
	Material	Borosilicate glass, red copper heat pipe tube, aluminum fin
	Coating	Three-target Cu/SS-ALN(H)/SS-ALN(L)/ALN coating
Water Tank	Capacity	100 ~ 300L for inner tank
	Inner tank	Food-grade SUS304-2B stainless steel 1.2~1.5mm
	Insulation	High-density polyurethane integrated-foaming 50mm
	Tank shell	Stainless steel plate SUS304
Bracket	Spec. (mm)	1.2mm in thickness
Bracket	Material	Stainless steel plate (aluminum alloy bracket available)
Working Pressure	6 bar
Hail Resistance	Φ 25mm diameter

✔

Detailed Product Description

Heat Pipe Vacuum Tube Three-target glass tube, aluminum fin and heat pipe with inner medium together make an efficient solar collecting device. Efficiency is generated about 55% in summer and 42% in winter—significantly higher than all-glass vacuum tubes.

Inner Water Tank Thickened food-grade SUS304-2B stainless steel keeps water clean and drinkable. Advanced automatic argon-arc welding ensures a long lifespan of more than 30 years.

Supporting Bracket Stainless steel or aluminum alloy plate with super weight-bearing and wind resistance design (140 km/hr). Universal bracket suitable for both flat and slope roof installations.

Optional Devices Electrical heater for continuous supply during rain; Intelligent controller with temperature sensor; Magnesium bar to soften hard water and protect the tank.

Warranty: 3 years international responsibility for integrated system exchange and 15 years for vacuum tube compensation due to quality problems.

📷

Detailed Photos

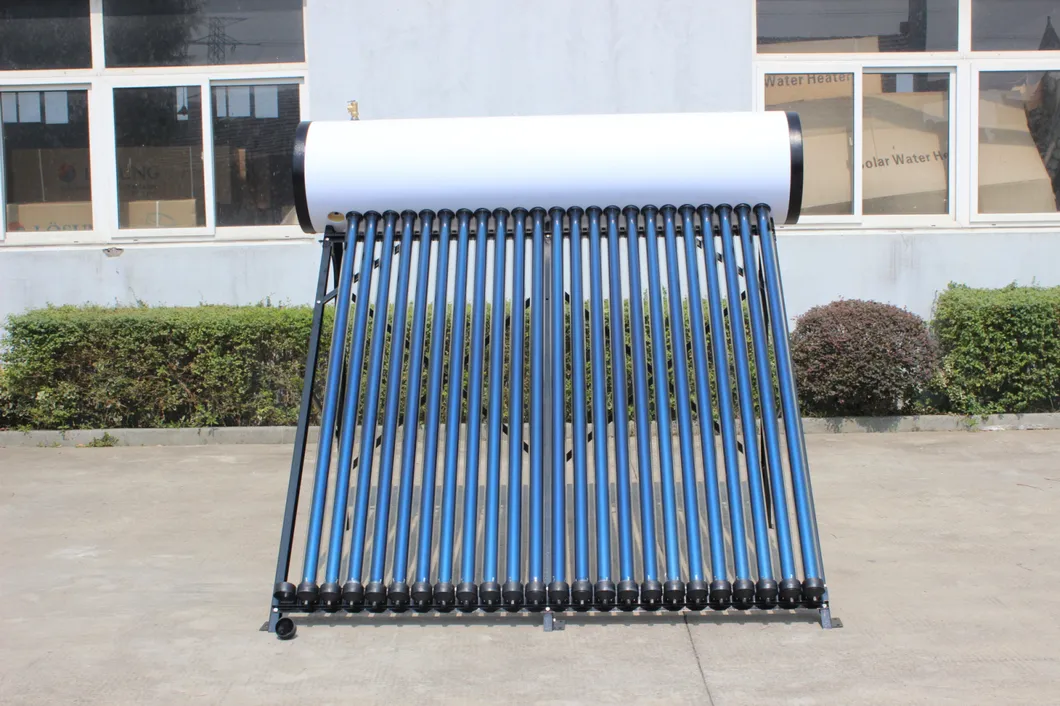

Heat Pipe Pressurized Solar Water Heater 1

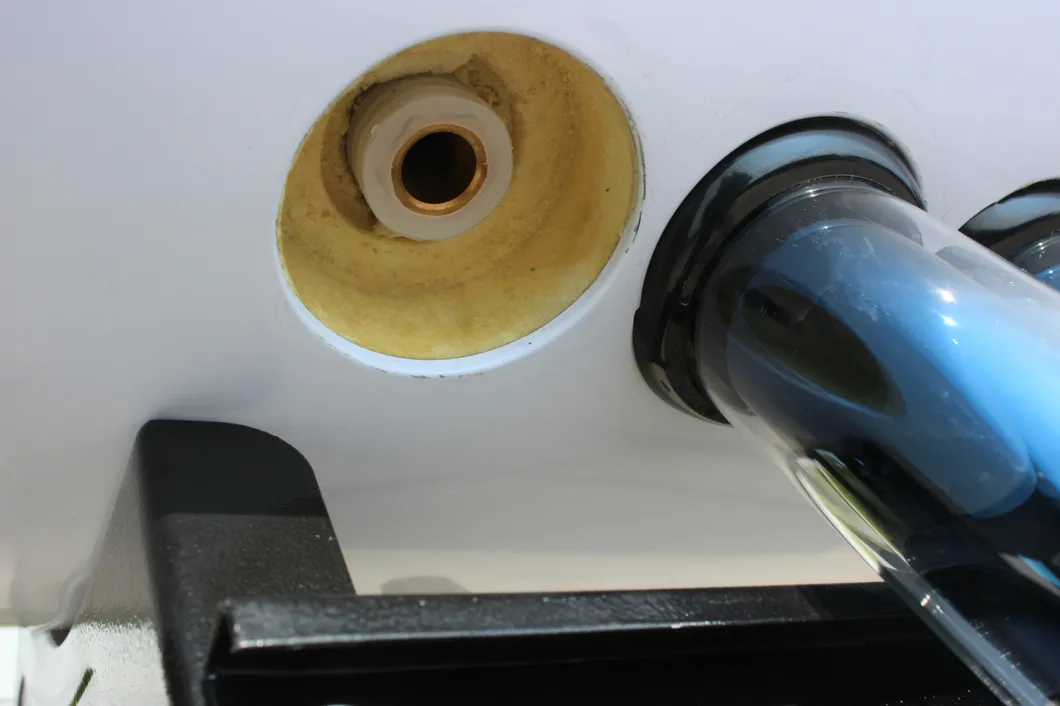

Heat Pipe Pressurized Solar Water Heater 2

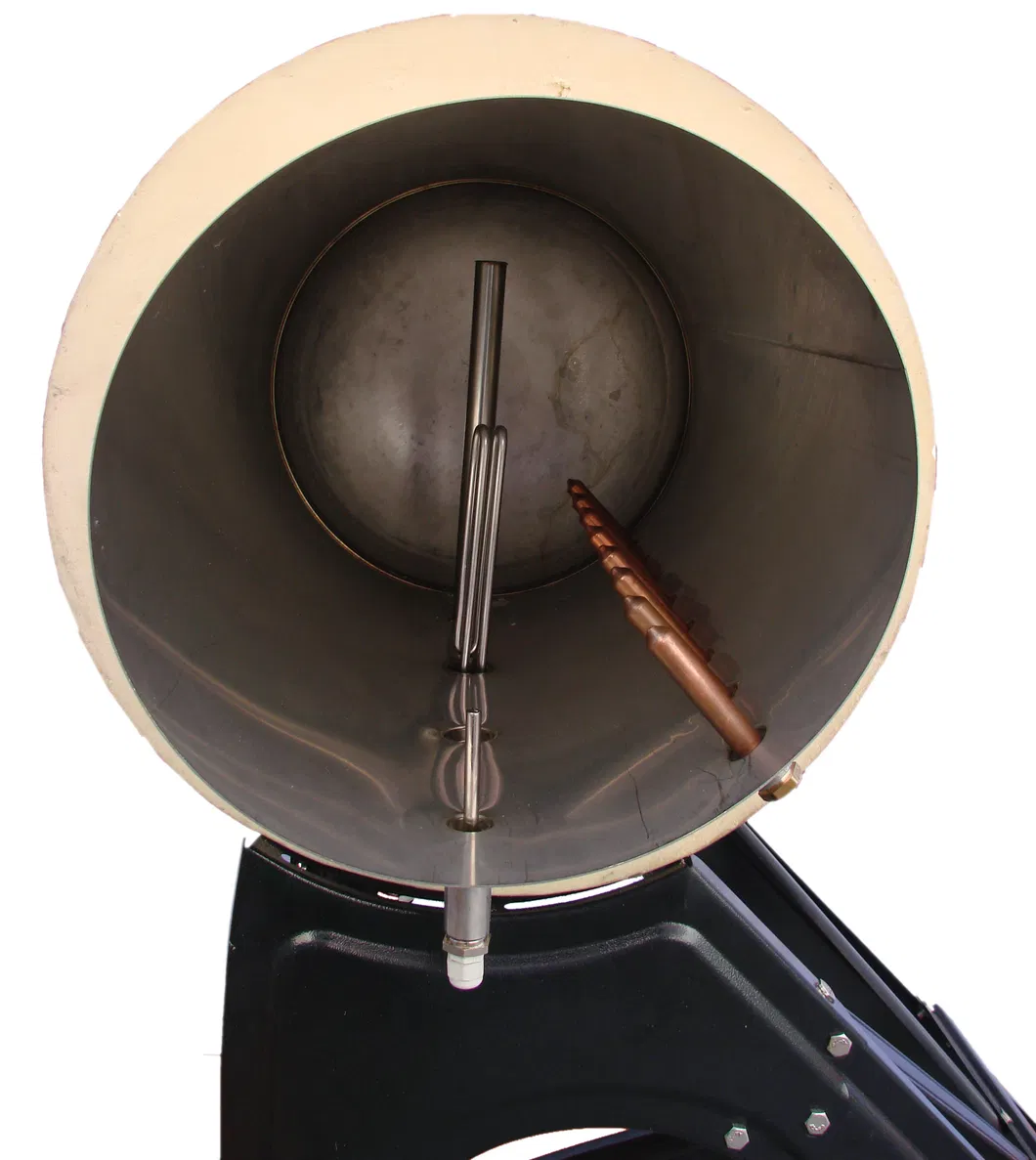

Heat Pipe Pressurized Solar Water Heater 3

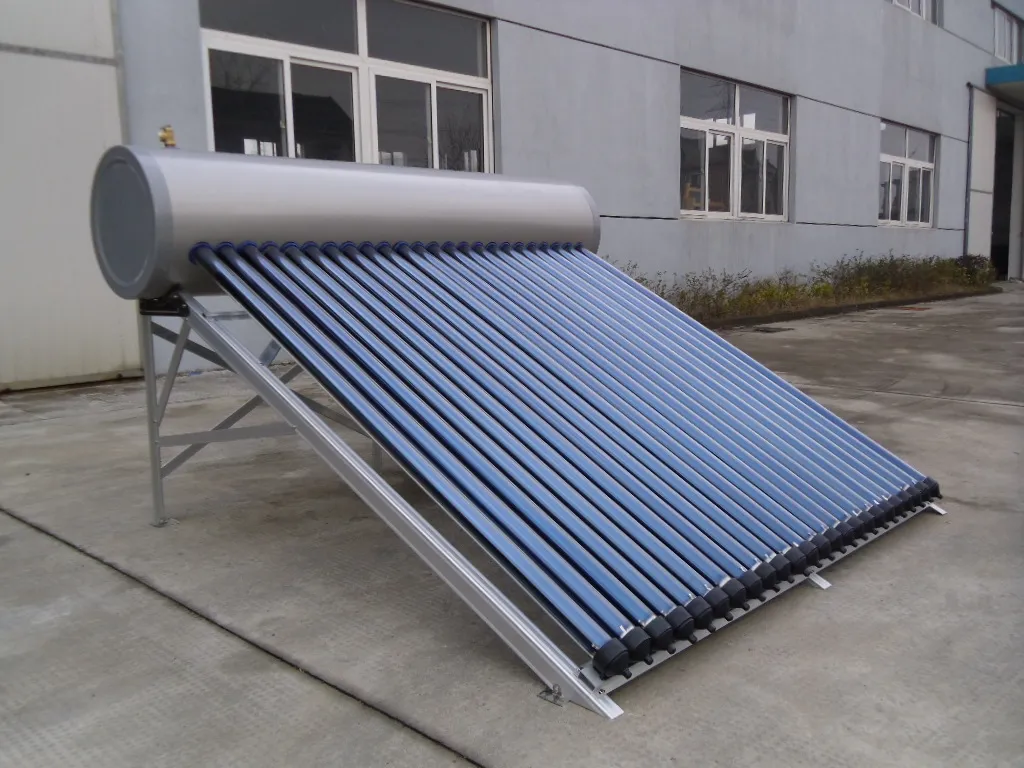

Heat Pipe Pressurized Solar Water Heater 4

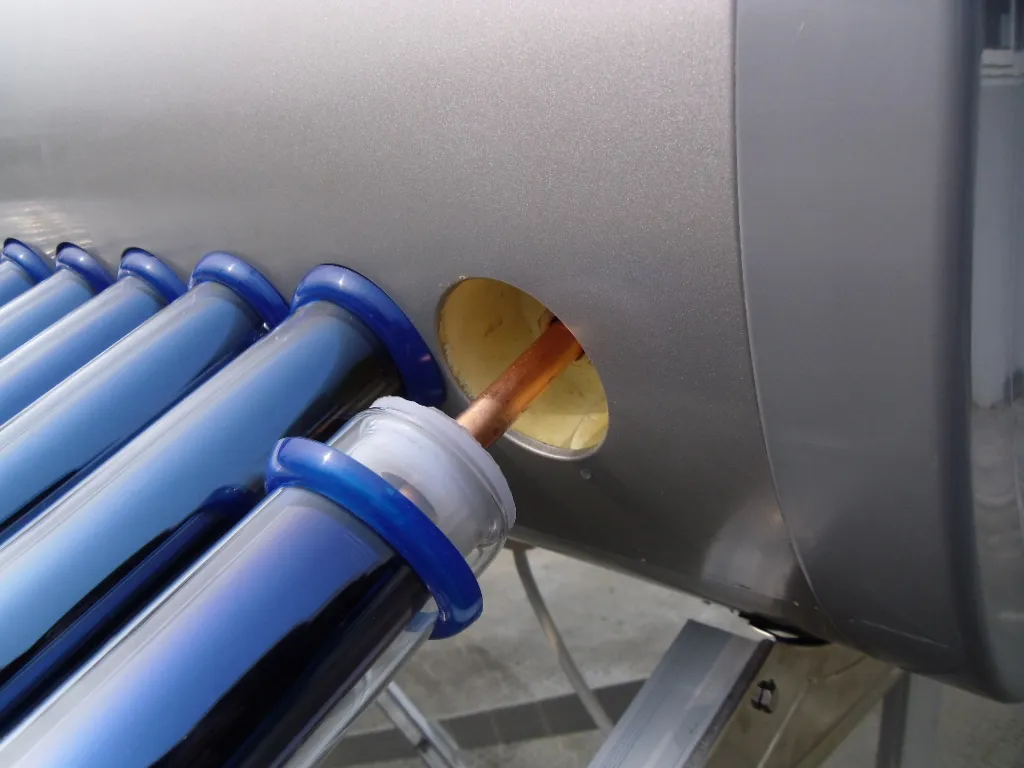

Heat Pipe Pressurized Solar Water Heater 5

Frequently Asked Questions

Can this solar water heater work in extremely cold climates?

Yes, the system is designed with anti-freezing technology and can operate efficiently in temperatures as low as -36°C.

What happens if one of the vacuum tubes breaks?

Because no water flows directly into the vacuum tubes, the system will continue to function properly even if one or more tubes are damaged or removed.

Is the water from the tank safe to drink?

Yes, the inner tank is made of food-grade SUS304-2B stainless steel, which ensures the stored water remains clean and potable.

Can I use this system with my standard home tap water pressure?

Absolutely. This is a pressurized system that withstands more than 6 Bar, allowing it to be connected directly to your tap water supply.

How do I get hot water on cloudy or rainy days?

The system can be equipped with an optional auxiliary electric heater and an intelligent controller to ensure a continuous supply of hot water regardless of the weather.

What is the expected lifespan of this solar heater?

With high-quality stainless steel construction and advanced welding techniques, the system is built to serve for more than 30 years.
