Basic Information
| Model NO. | ISD-147 |
| Material | Aluminum Alloy |
| Type | Sliding Sectional Door |
| Open Style | Automatic with Remote Control |
| Special Function | Insulated and Cold Storage |
| Certification | TUV, CCC, ISO9001, RoHS, CE |
| Wind Resistant | Standard 450PA, Higher to 700PA |
| Door Panel | 40mm Anti-Pinch Panel (Galvanized Steel/Aluminum) |
| Speed | 0.25m/S |
| Size Range | W:1500-6000mm | H:2000-6000mm |
Product Description
Technical Specifications
| Feature |
Details |
| Size Range | W:6000-12000mm, H:2000-8000mm |
| Material | Galvanized steel or aluminum plate |
| Thickness | 40mm Anti-pinch / 43mm Insulated bridge |
| Safety Devices | Wire rope breakage protection, Torsion spring protection, Wireless airbag |
| Color Options | RAL9002, RAL9016, RAL1023, RAL5005, RAL3002, etc. |

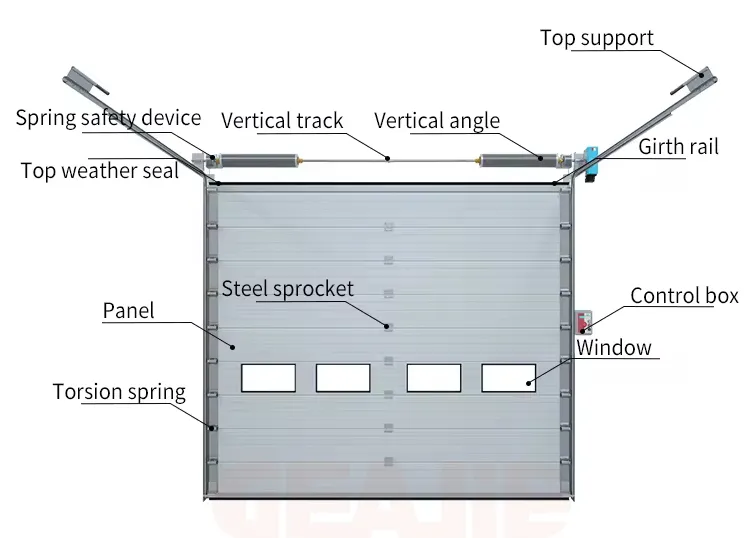

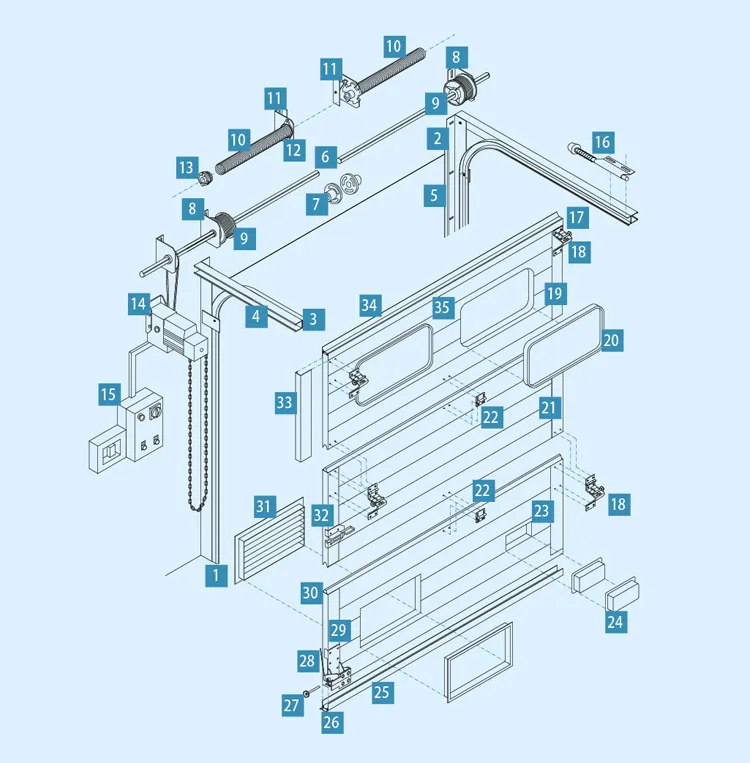

Structural Advantages
✔

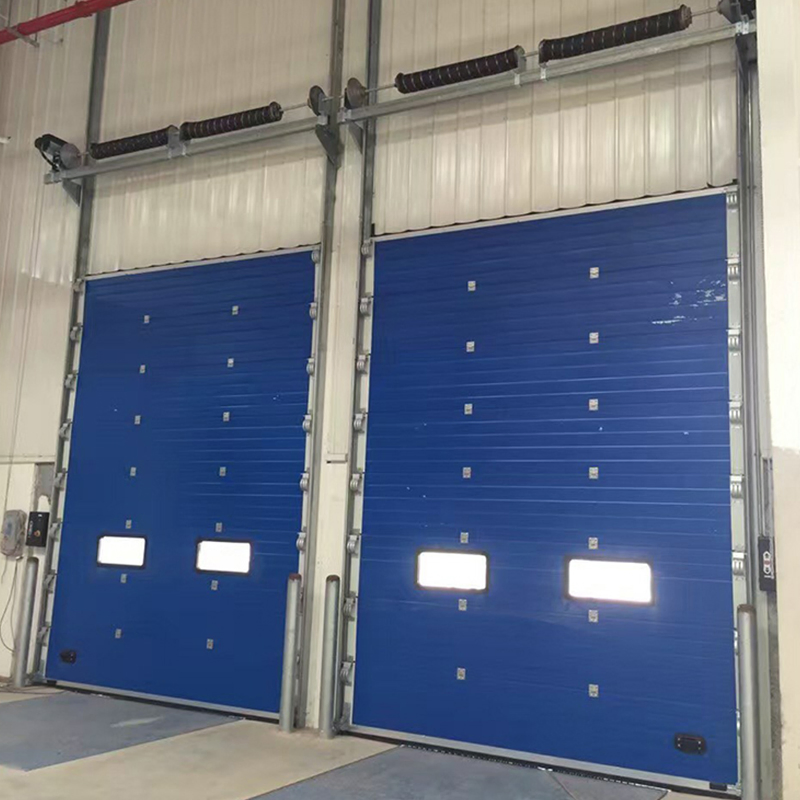

Versatile Lifting: Supports straight, standard, high lintel, and low lintel lifting methods to suit site civil structures.
✔
Smooth Operation: Unique roller shaft design distributes force evenly, extending service life.
✔
High Insulation: High-density polyurethane foam core with hot-dip galvanized steel plates for thermal efficiency.
✔
Weather Resistant: EPDM sealing rubber on all sides ensures excellent closeness and corrosion resistance.
Motor Technical Parameters
| Model |
10DI |
10C |
14 H-F |
| Output Torque | 100Nm | 100Nm | 140Nm |
| Rated Power | 0.37KW | 0.37KW | 0.55KW |
| Protection Level | IP 54 | IP 54 | IP 54 |
Frequently Asked Questions
Q1: What is the Minimum Order Quantity (MOQ)?
A: 1 set is acceptable for start.
Q2: What are the maximum dimensions available?
A: The maximum length can reach 6.5M and the maximum width is 6M, both are adjustable based on requirements.
Q3: Are these doors difficult to install?
A: No, our industrial sectional doors are designed to be very easy to install.
Q4: What are the primary applications for these doors?

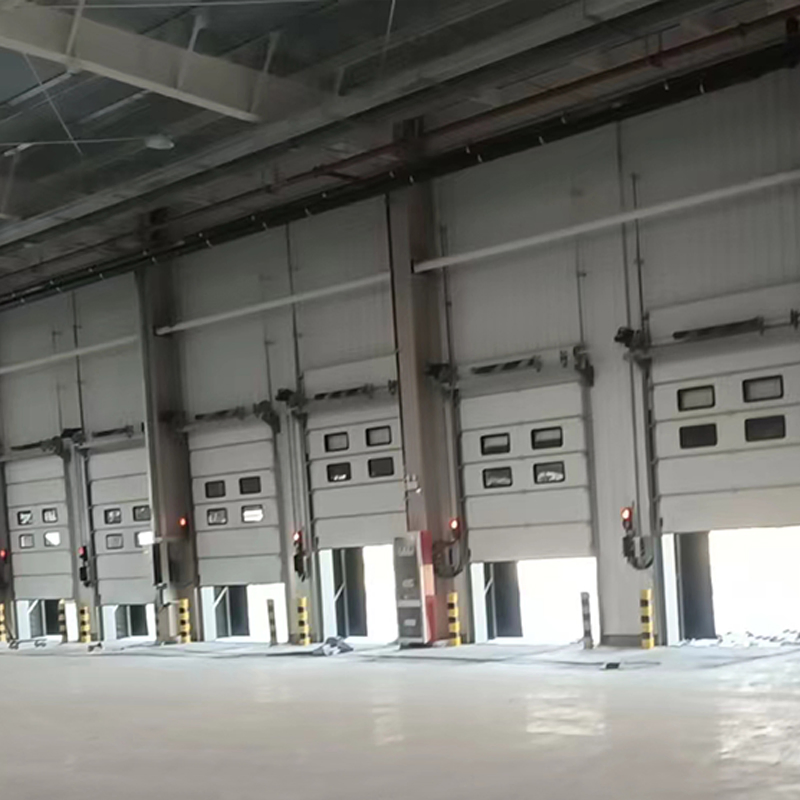

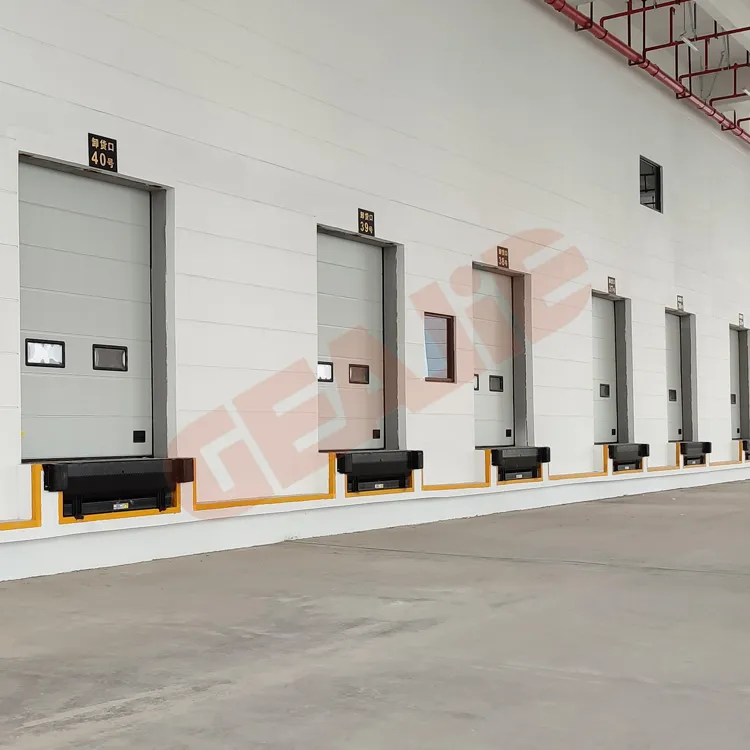

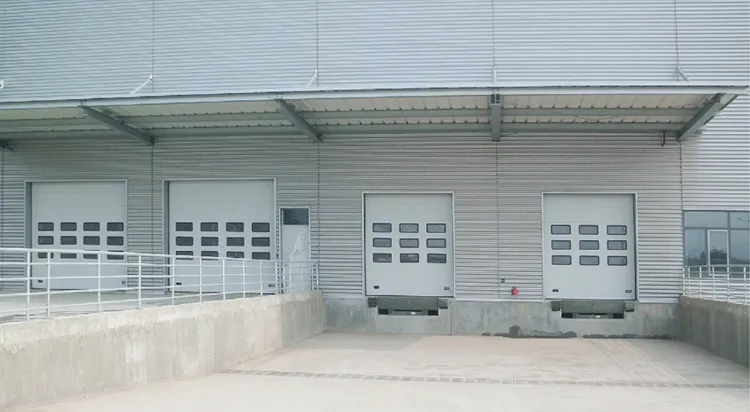

A: They are ideal for factory outlets, logistics parks, warehouses, hotels, and garages.
Q5: What safety features are included?
A: Standard configuration includes spring brake devices, wire rope breakage protection, and wireless safety airbags.
Q6: Do you offer customization for colors?
A: Yes, we provide standard colors like RAL9002 and RAL9016, and we can also provide customized colors as per your needs.
