China New Automatic Commercial Industrial Garage Sliding Bulletproof Security Stainless Steel Sectional Door

Customization: Available
After-sales Service: Available
Warranty: 12 Months

Product Description

i

Basic Information

Model NO.
ISD-147
Material
Aluminum Alloy
Type
Sliding
Open Style
Sliding
Opening Type
With Remote Control
Special Function
Insulated and Cold Storage
Certification
TUV, CCC, ISO9001, RoHS, CE
Position
Interior and Exterior
Surface Finishing
Finished
Wind Resistant
Standard 450PA, Higher to 700PA
Open Method
Electric, Manual
Door Panel
Galvanized Steel or Aluminum Plate (40mm)
Speed
0.25m/S
Size Range
W:1500-6000mm H:2000-6000mm
Application
Factory, Garage, Hotel, Warehouse etc
Origin
China

Industrial Sectional Door

Industrial Sectional Door Overview
Detail 1
Detail 2

Product Show

Showcase 1
Showcase 2
Showcase 3
Showcase 4

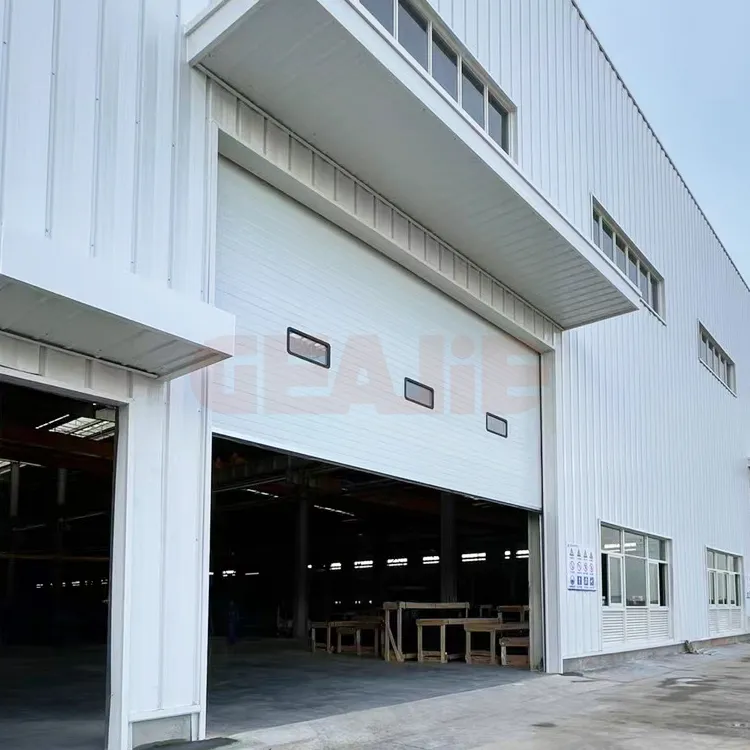

Showcase 5

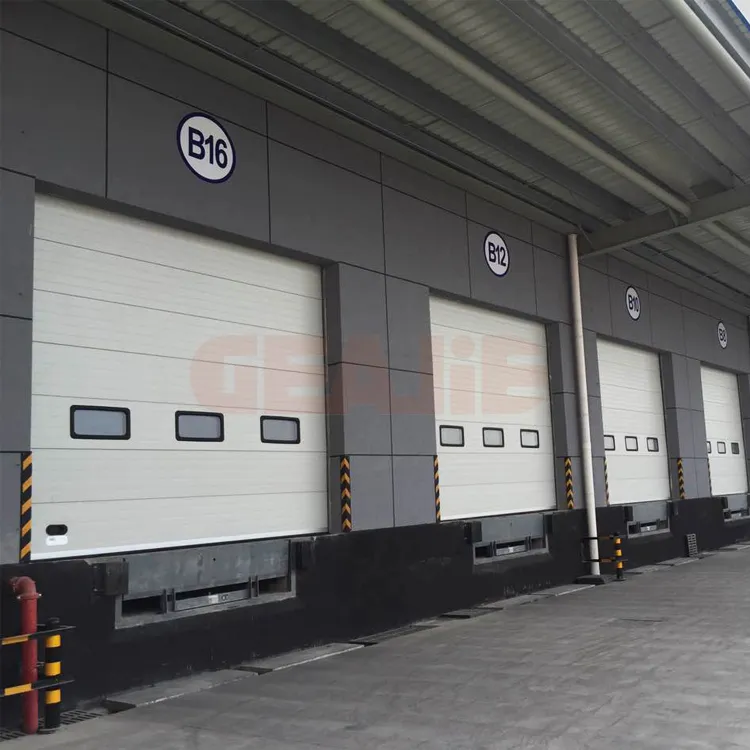

Showcase 6

Material Description

Feature Specification Details
Size RangeW: 6000-12000mm, H: 2000-8000mm
Opening/Closing Speed0.25m/s
Door Panel MaterialGalvanized steel or aluminum plate
Panel ThicknessAnti-pinch: 40mm | Insulated bridge: 43mm
Safety DevicesWire rope breakage protection, torsion spring breakage protection, wireless airbag
Wind ResistanceStandard 450Pa, up to 700Pa
Color OptionsRAL9002, RAL9016, RAL1023, RAL5005, RAL3002, Customizable
M

Motor Technical Parameters

Model 10DI 10C 14 H-F
Output torque100Nm100Nm140Nm
Rated power0.37KW0.37KW0.55KW
Rated voltage1*AC 230/440V3*AC 230/440V1*AC 230V
Protective levelIP 54IP 54IP 54
Shaft diameter25.4mm/31.75mm25.4mm/31.75mm25.4mm/31.75mm

Structural Drawing & Components

Structural Drawing
1. Rail
Vertical rail support
6. Door shaft
Shaft coupler & support
14. Motor
Standard control box
19. Top Panel
With sealing strips
23. Bottom Panel
With safety airbag
29. Safety
Cable breakage protection

Product Advantages

  • Flexible Lifting Methods: Straight, standard, high lintel, or low lintel lifting to suit building spaces.
  • Durable Roller Design: Distributes force to wheels on both sides for smooth operation and longer life.
  • High-Density Insulation: Double-sided galvanized steel with polyurethane foam for superior thermal protection.
  • Anti-Pinch Function: Specially designed door panels to prevent finger injury during operation.
  • Weather Resistance: Equipped with EPDM sealing rubber for air-tightness and corrosion resistance.
  • Safety Configuration: Includes spring brake devices and wireless safety airbags as standard.
工厂

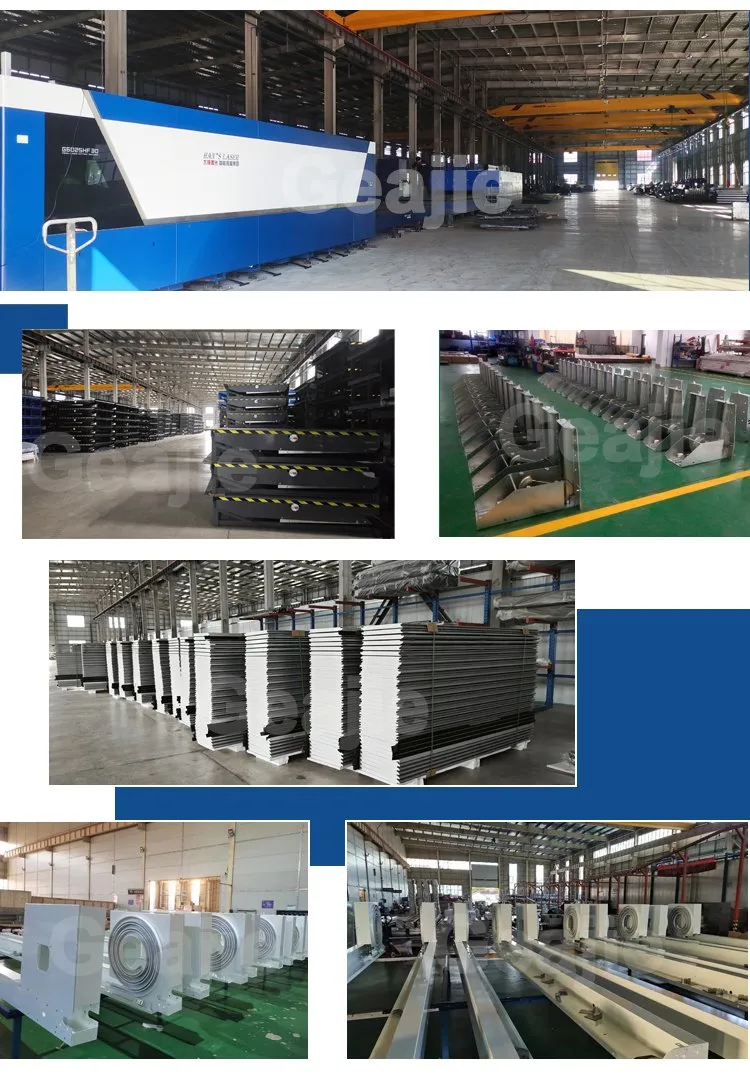

Production Showcase

Production 1
Production 2
Production 3
Production 4
?

Frequently Asked Questions

What is your Minimum Order Quantity (MOQ)?
The MOQ is 1 set.
What is the maximum available size for these doors?
The maximum length can be 6.5M and the maximum width is 6M, both are adjustable.
What other products do you provide?
We also produce sliding doors, rapid doors, garage doors, rolling shutters, cold storage doors, loading platforms, and industrial fans.
Is the installation process difficult?
No, the product is designed to be very easy to install.
Where are dock levelers typically used?
They are commonly used at factory outlets and outgoing ports of logistics parks to improve efficiency.
What is the main benefit of using a dock leveler?
It significantly improves cargo handling efficiency, making the loading and unloading of goods much easier.
