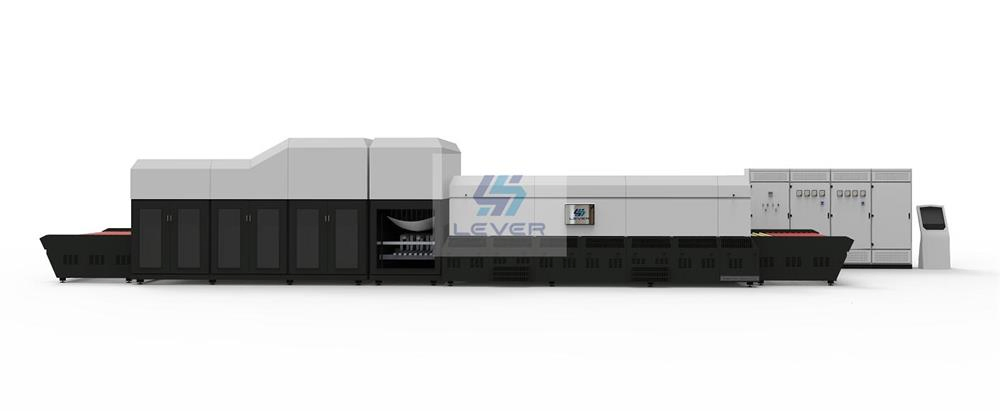

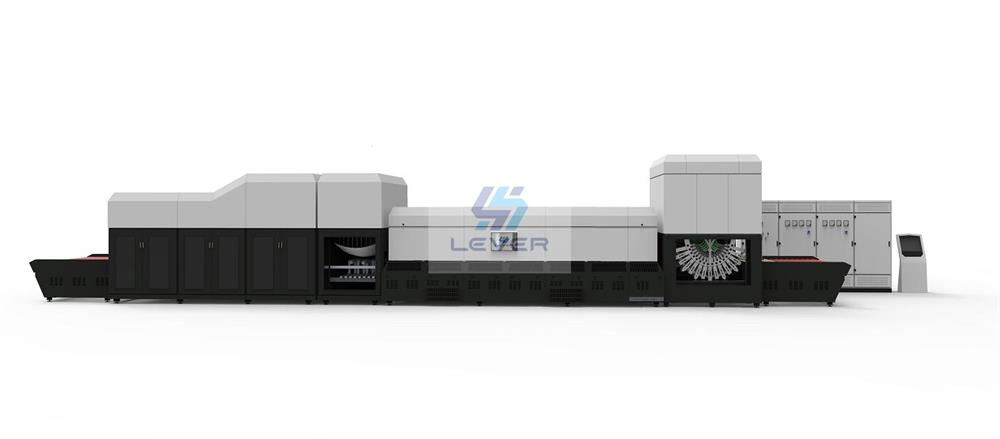

The Mould Bent Glass Tempering Machine is a specialized plant designed for producing bent tempered glass with multi-curvature. This technology is essential for high-end applications including:
Integrated with LED lighting systems to detect glass defects before processing begins.

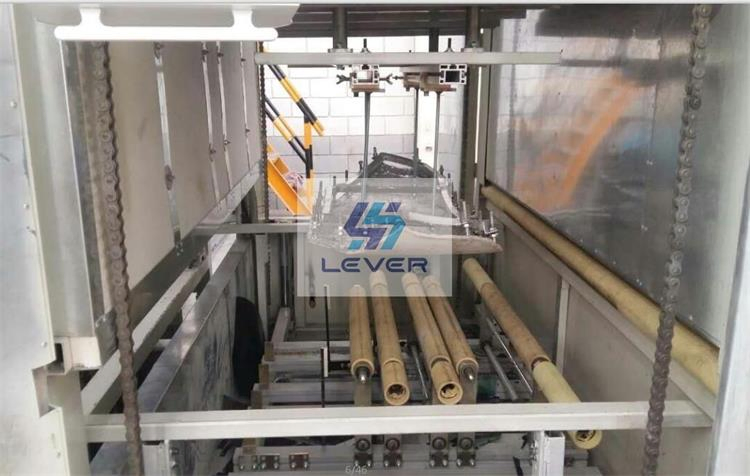

Features sectional driving for ceramic rollers and individual heating zones. Top-mounted ceramic plates ensure uniform heat distribution and prevent debris from falling onto the glass. The ceramic roller system utilizes a triple-belt drive for maximum stability and scratch prevention.

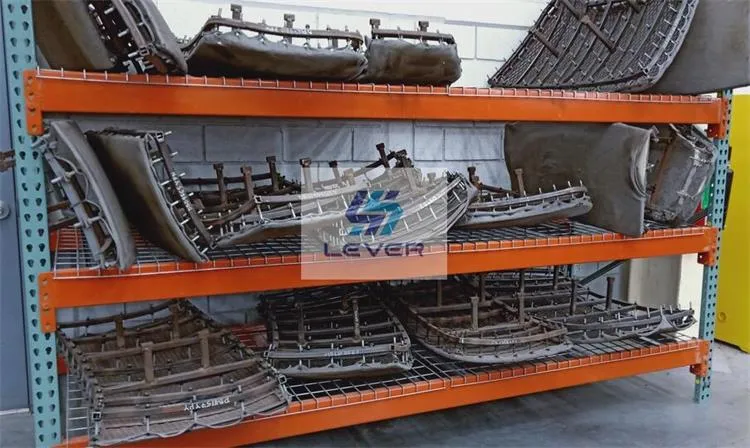

Utilizes trumpet-type air nozzles and round air ducts to provide high air pressure with lower energy consumption. The modular design allows for rapid mould changes and precise adjustments.
Powered by Siemens PLC and Profinet network data transmission for servo motor control, significantly reducing signal interference compared to traditional wiring.
| Model | Max Glass Size (mm) | Min Glass Size (mm) | Thickness (mm) | Max Depth (mm) |
|---|---|---|---|---|
| LV-TB1008 | 1000 x ⌒800 | 150 x ⌒200 | 3 ~ 6 | >=400 |
| LV-TB1209 | 1200 x ⌒900 | 150 x ⌒200 | 3.2 ~ 6 | >=450 |
| LV-TB1608 | 1600 x ⌒800 | 150 x ⌒250 | 3.2 ~ 6 | >=400 |
| LV-TB1810 | 1800 x ⌒1000 | 150 x ⌒250 | 3.2 ~ 6 | >=500 |
| LV-TB2012 | 2000 x ⌒1200 | 150 x ⌒250 | 3.2 ~ 6 | >=500 |
| LV-TB2218 | 2200 x ⌒1800 | 150 x ⌒350 | 3.2 ~ 6 | >=900 |
