| Model NO. | s05 |
| Material | Aluminum Alloy |
| Open Style | Sliding |
| Frame Material | Aluminum Alloy |
| Style | Modern |
| Opening Pattern | Horizontal |
| Function | Soundproof, Anti-Theft, Insect-proof, Dust-proof |

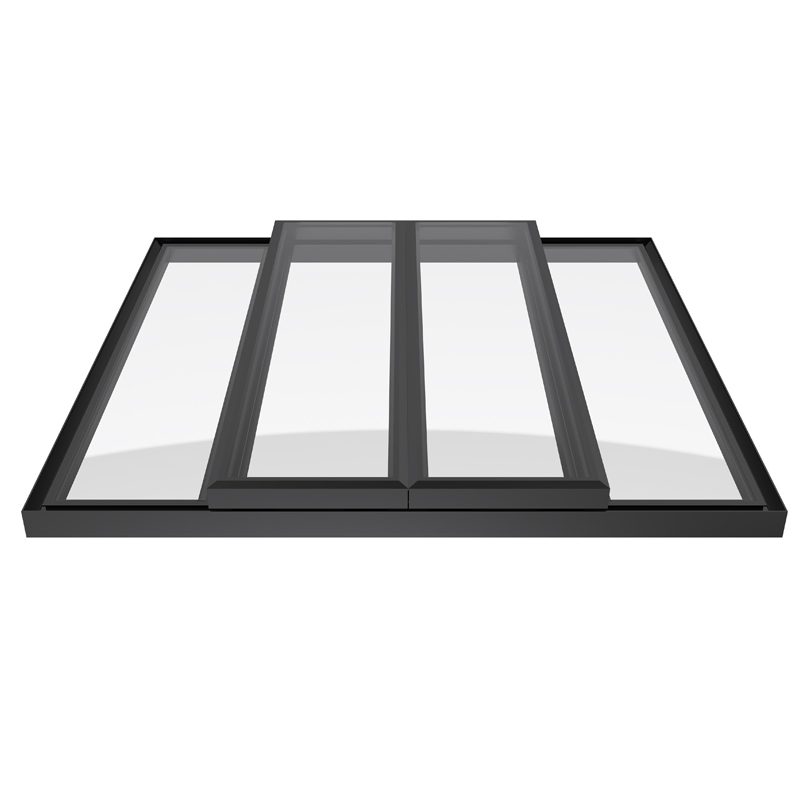

| Product Name | Sliding Skylight |
| Color | 12 Color for Option |
| Size | Customized Size |
| Glass Options | Hollow Glass / Laminate Glass |

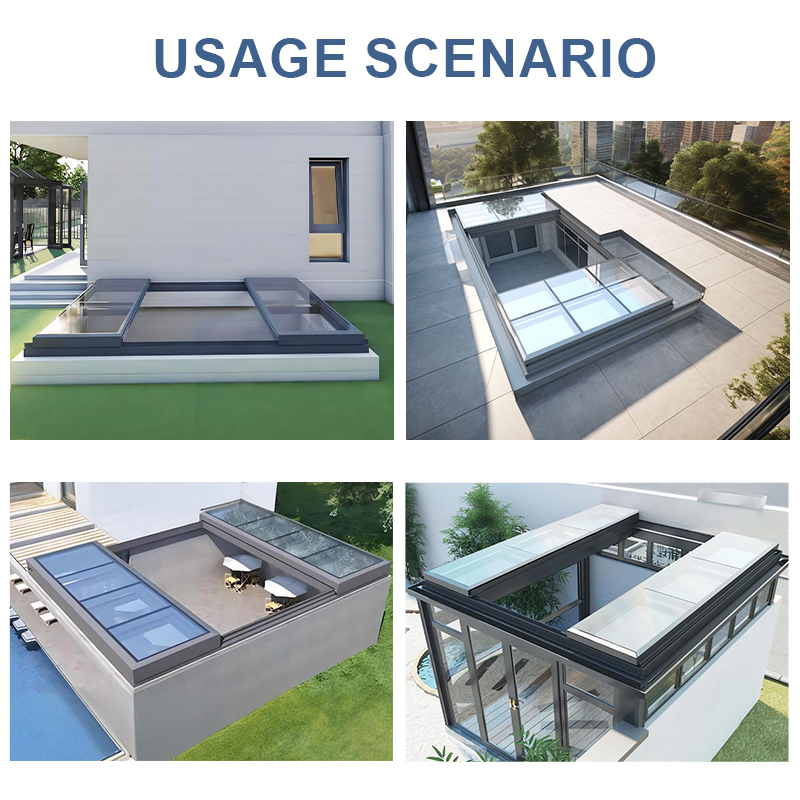

| Application | Residential / Commercial |
| Certificates | ISO9001 / Patent Design Certificate |
| Advantage | Daylighting / Ventilation / Soundproof / Impact Resistance |
| Package | Wooden Box |
| Project Solution | Total solution for projects |
| Motor Service Life | 5 years |
| Profile Service Life | 10 years |
| Profile Thickness | 1.5mm ~ 3.0mm |
| Size Range | L: ≤6m, W: ≤6m |
| Max Glass Thickness | ≤35mm |

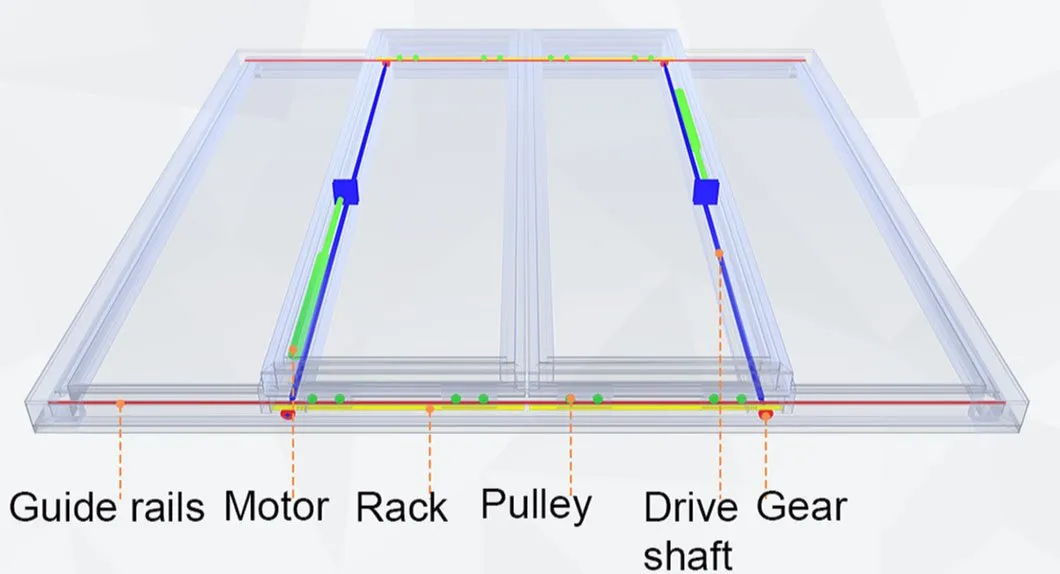

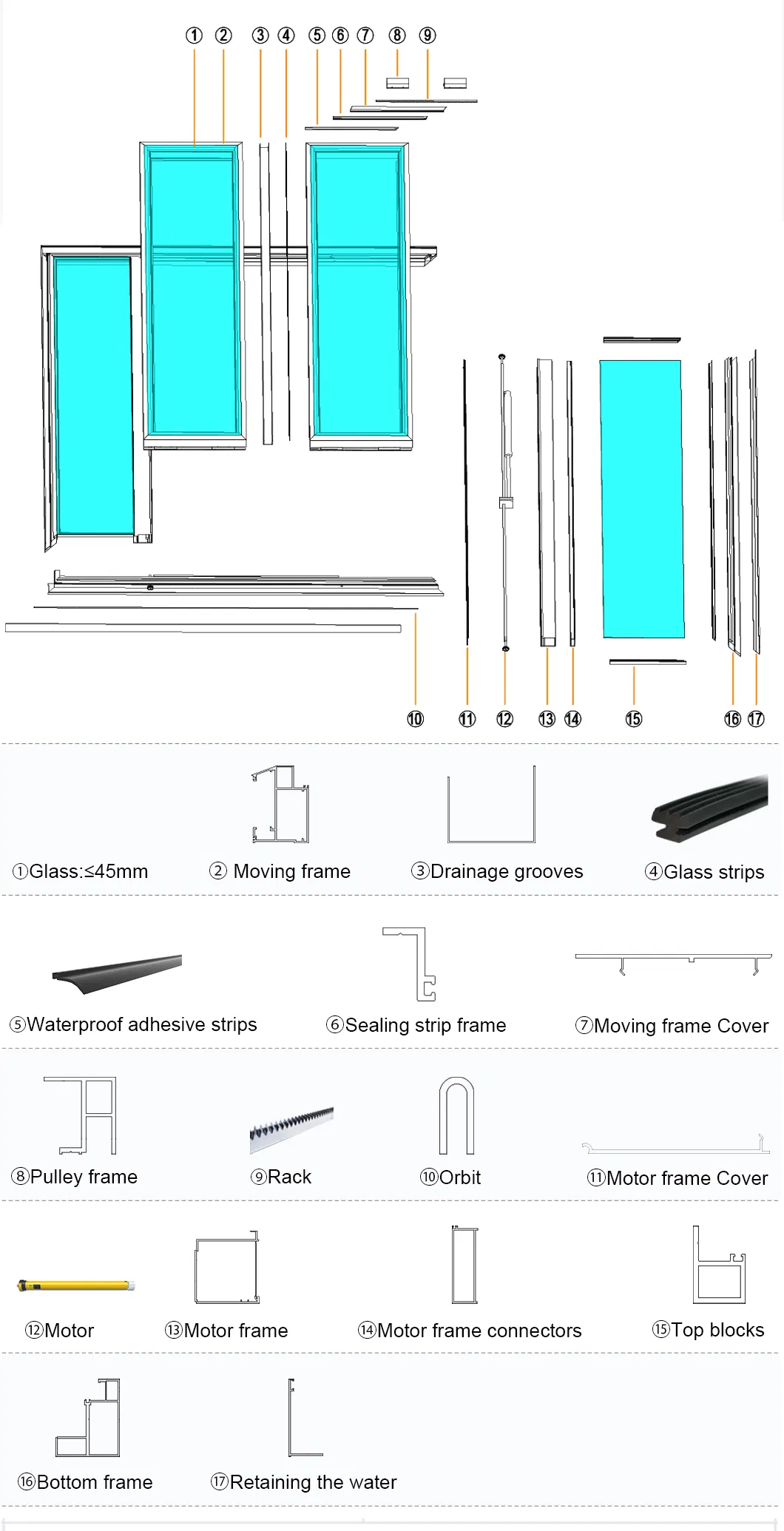

The tubular motor drives the transmission shaft to rotate, and the transmission shaft drives the gear fixed on the window sash to extend and retract. At the same time, the window sash uses a silent pulley and runs smoothly along the rack on the stainless steel track of the window frame.
1. Stable motor drive
2. Operation noise as low as 20 decibels
3. External motor is easy to disassemble and maintain
4. Supports intelligent operation

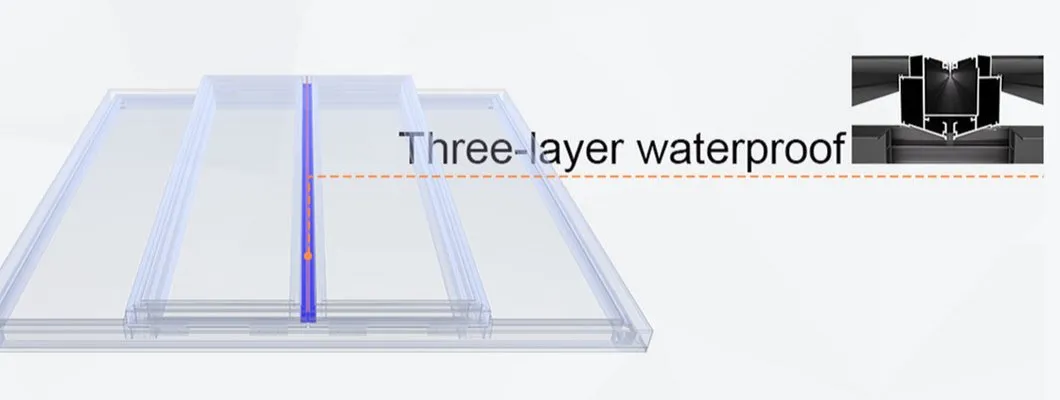

One layer of the window frame is equipped with a rubber strip to provide high-efficiency waterproofing and weather resistance.

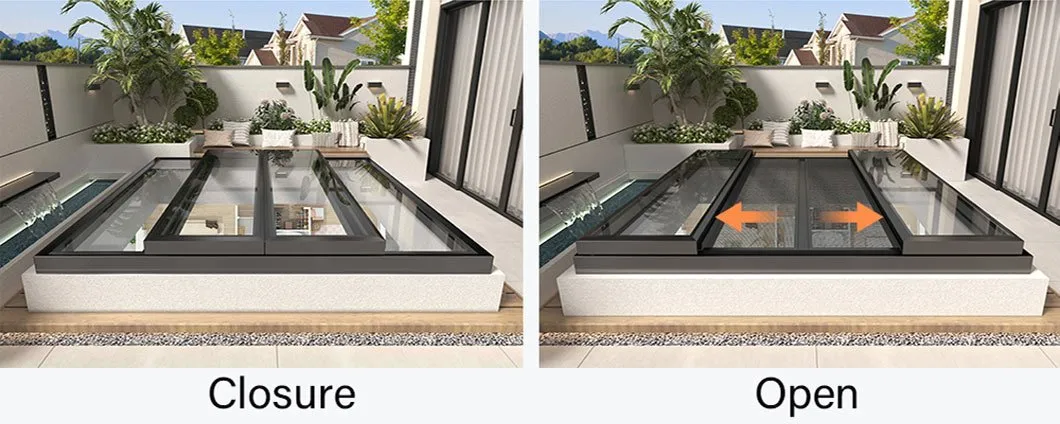

1. Large area opening for panoramic views and superior ventilation.
2. Built-in high-torque silent motor (noise level as low as 30dB).
3. 24V safe power supply with overvoltage and overload protection.
4. Optional UPS backup power supply for operation during power outages.
5. Automotive-grade sealing tape for thermal insulation and energy saving.
6. Smart home integration (Voice control, Mobile app, Rain sensors).
