Basic Information
Emission Standard
Euro 4-6
Transport Package
Shipping
Technical Parameters
| DMT 503 2 XYC L 3-Technical Parameter Details |
| Product Model |
DMT5032XYCL 3-AM |
| Chassis Model |
BJ2037Y3MVV-6D |
| Drive Form |
4x4 (non-full-time four-wheel drive) |
| Vehicle Dimensions (L/W/H) |
5340mm - 5560mm depending on configuration / 1940-2080mm |
| Cash Compartment Dimensions |
1.58 × 1.58 × 1.2 m |
| Compartment Volume |
3.0 m³ |
| Curb Mass |
2340kg / 2380kg |
| Max Total Mass |
2895kg |
| Number of Passengers |
2 + 3 |
| Engine Type |
4G20TI5 Turbocharged Gasoline Engine |
| Displacement |
1.981 L |
| Rated Power |
175 Kw / 5500 r/min |
| Max Torque |
360 NM / 1750~4000 r/min |
| Max Speed |
170 km/h |
| Tyre Size |
265 / 60R18 |
| Bulletproof Level |
A level / En B4 |
Standard & Optional Configuration
| Feature Item |
Status |
Remarks |
| One Key Start | Standard | - |
| Aluminum Alloy Rim | Standard | - |
| Parking Distance Control (PDC) | Standard | - |
| Reverse Image | Standard | - |
| 8-inch MP5 Display | Standard | - |
| Cruise Control | Standard | - |
| ABS + EBD | Standard | - |
| Main & Passenger Airbags | Standard | - |
| Remote Control Center Lock | Standard | - |
| HD DVR Monitoring System | Standard | 6-way Camera (720P) |
| GPS Satellite Positioning | Standard | - |
| Manual Sunroof | Standard | With locking device |
| Electric Bill Transfer Hole | Standard | Both sides of cockpit |
| Shooting Holes | Standard | Both sides of escort bay |
| Fire Extinguisher | Standard | 2 Kg |
| Leather Seats | Optional ★ | Custom upgrade |
| 1080P Digital HD System | Optional ★ | High resolution upgrade |
| Solar Film for Windows | Optional ★ | - |
Product Media Display
Frequently Asked Questions
What is the bulletproof protection level of this pickup?
The vehicle is designed with an "A level" or "En B4" protection level, ensuring safety for cash-in-transit and escort operations.
What kind of engine powers this armored vehicle?
It is equipped with a 4G20TI5 turbocharged gasoline engine, providing 175 Kw of power and 360 NM of torque.
How many people can the vehicle carry?
The vehicle has a passenger capacity of 5 people (2 in the front and 3 in the rear/escort cabin).
Does the vehicle come with a monitoring system?
Yes, a standard 6-way 720P HD DVR monitoring system is included, covering the front, rear, cockpit, and storage compartments. 1080P is available as an option.

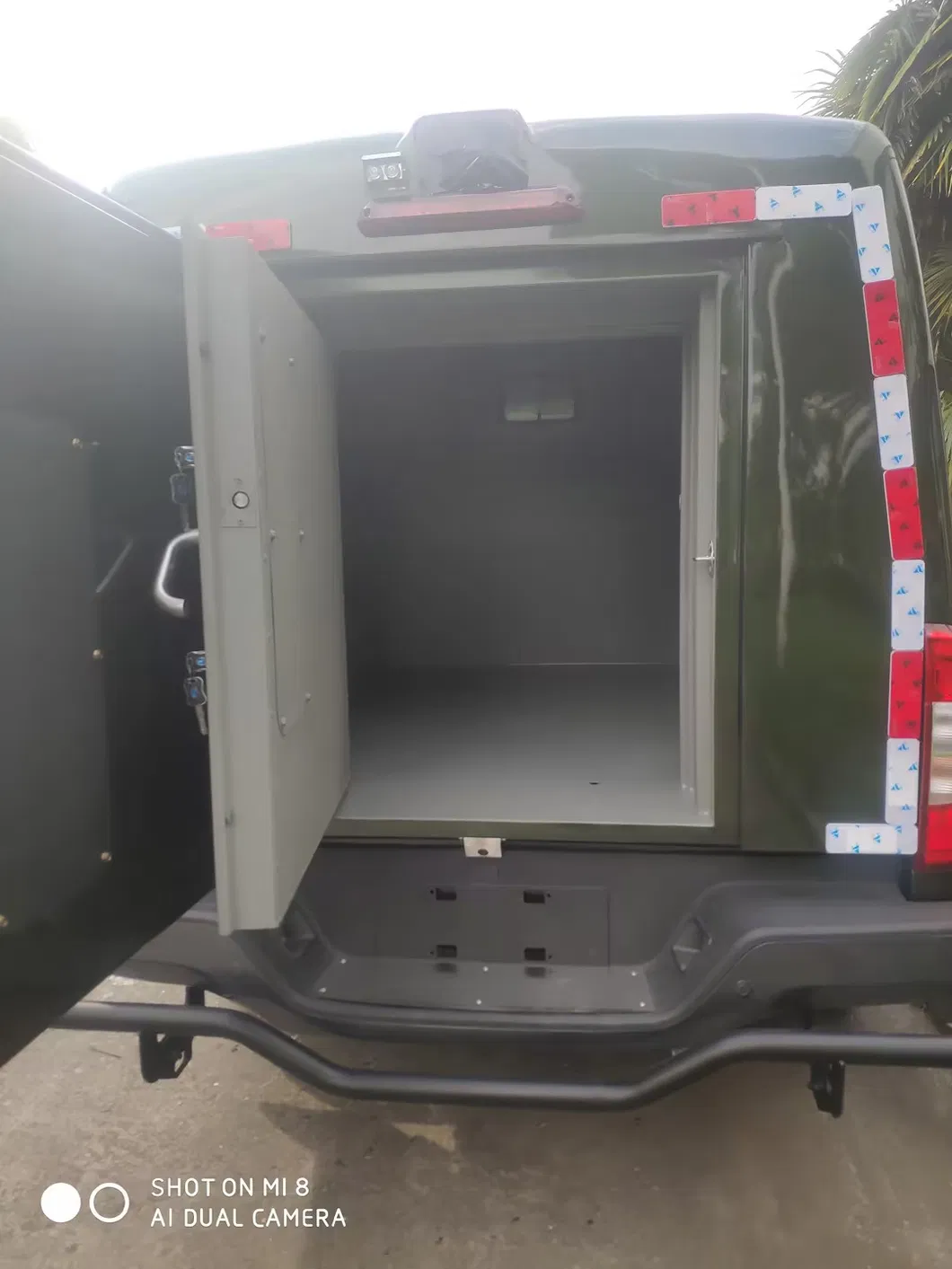

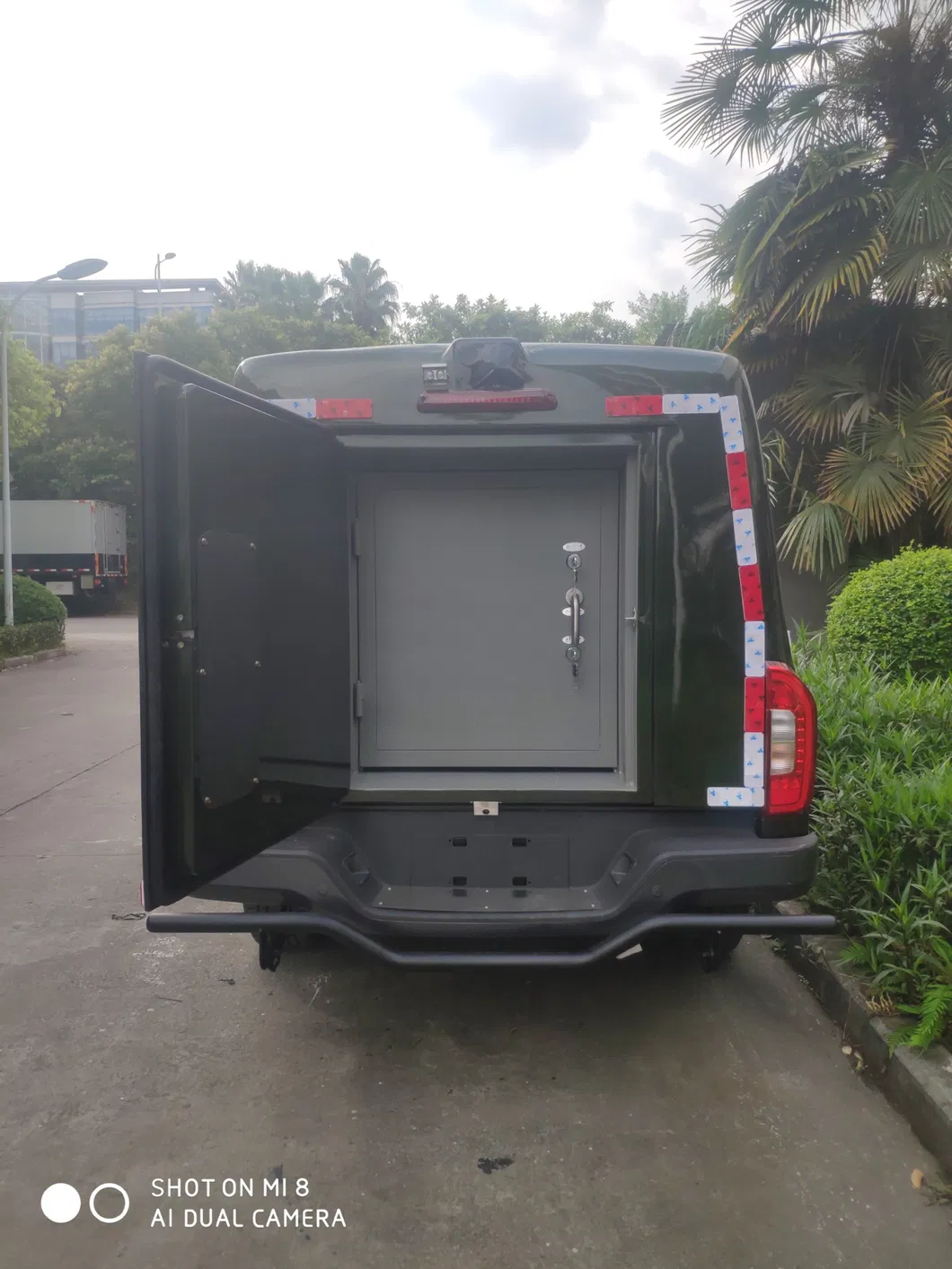

What are the dimensions of the cash compartment?
The banknote/cash compartment space dimensions are 1.58m x 1.58m x 1.2m, offering a total volume of 3.0 cubic meters.
Is the vehicle suitable for off-road conditions?
Yes, the vehicle features a 4x4 non-full-time four-wheel drive system, making it adaptable to various road conditions.
