| Model NO. | w04 |
| Material | Aluminum Alloy |
| Open Style | Sliding |
| Frame Material | Aluminum Alloy |
| Style | Modern |
| Opening Pattern | Horizontal |
| Function | Soundproof, Anti-Theft, Insect-proof, Dust-proof |
| Surface Finishing | Finished |
| Security Rating | A |

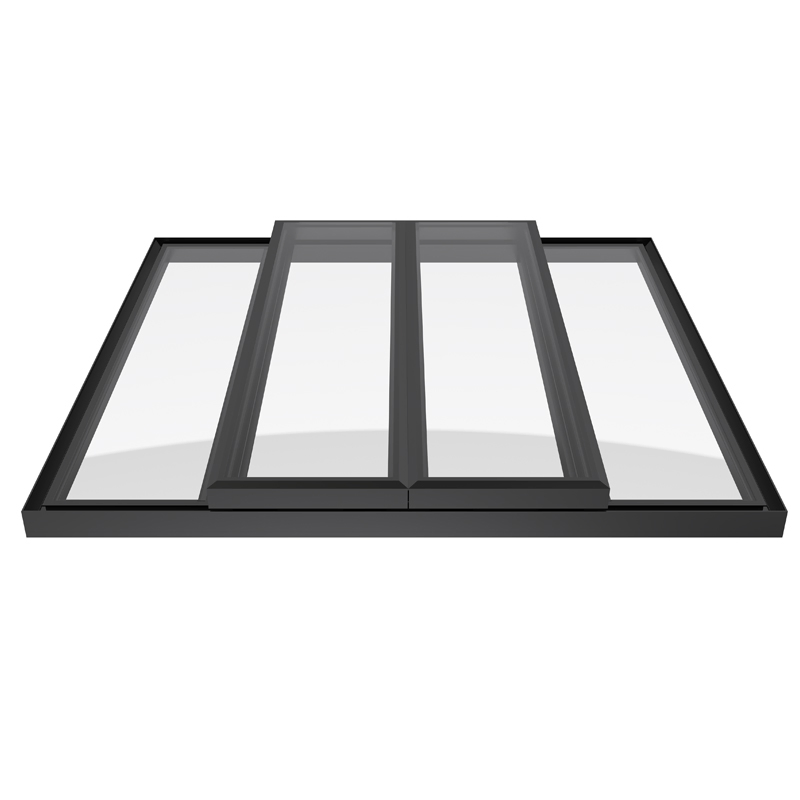

| Product Name | Sliding Skylight |
| Color | 12 Color for Option |
| Size | Customized Size |
| Glass | Hollow Glass / Laminate Glass |

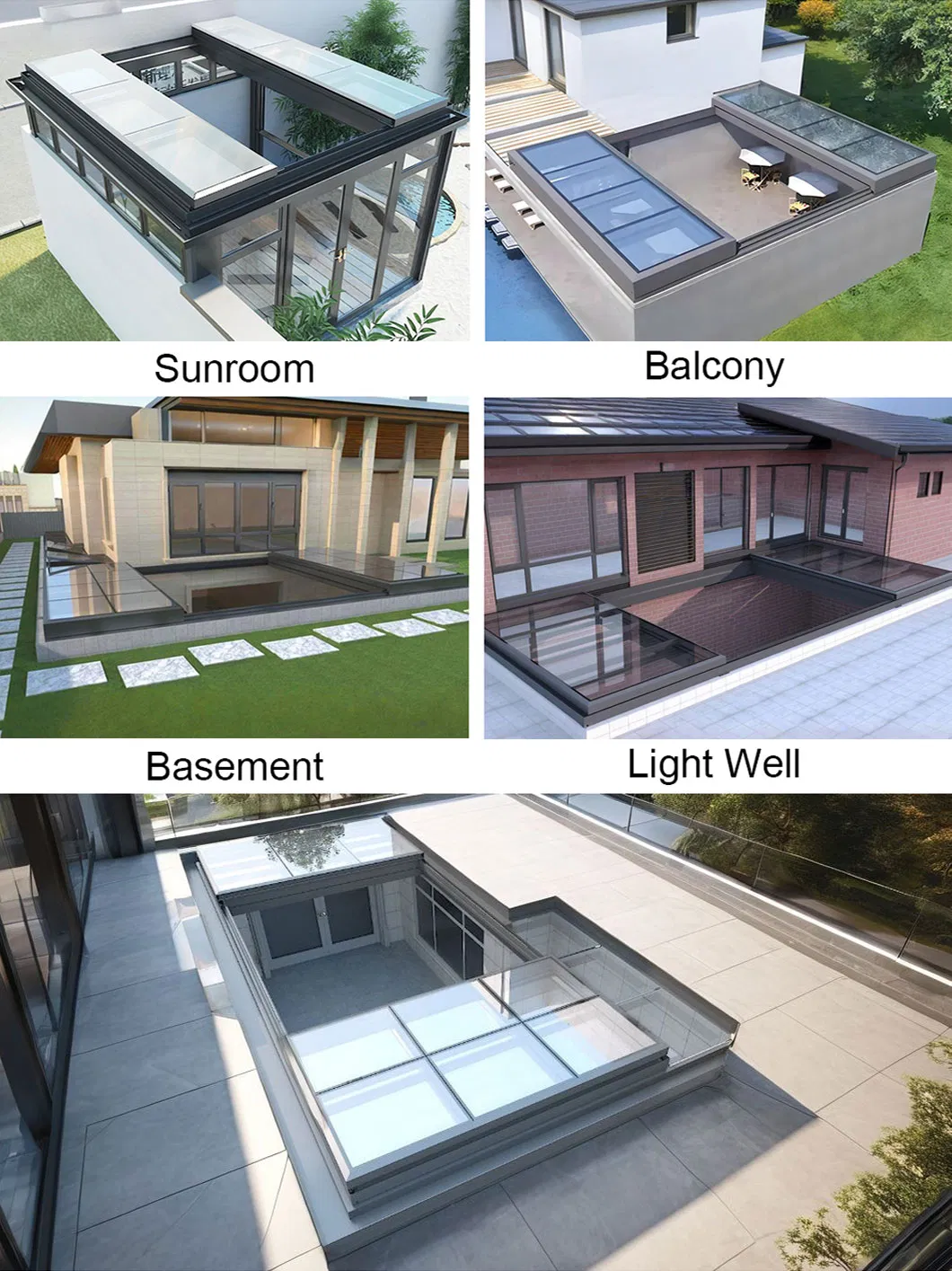

| Application | Residential/Commercial |
| Certificates | ISO9001/Patent Design Certificate |
| Advantage | Daylighting / Ventilation / Soundproof / Impact Resistance |
| Structure | Aluminum Alloy Structure Frame |
| MOQ | 1 Set |
| Project Solution Capability | Total solution for projects |
| Profile thickness | 1.5mm~3.0mm |
| Customizable size range | L:≤6m W:≤6m |
| Installable glass thickness | ≤35mm |
| Motor service life | 5 years |
| Profile service life | 10 years |

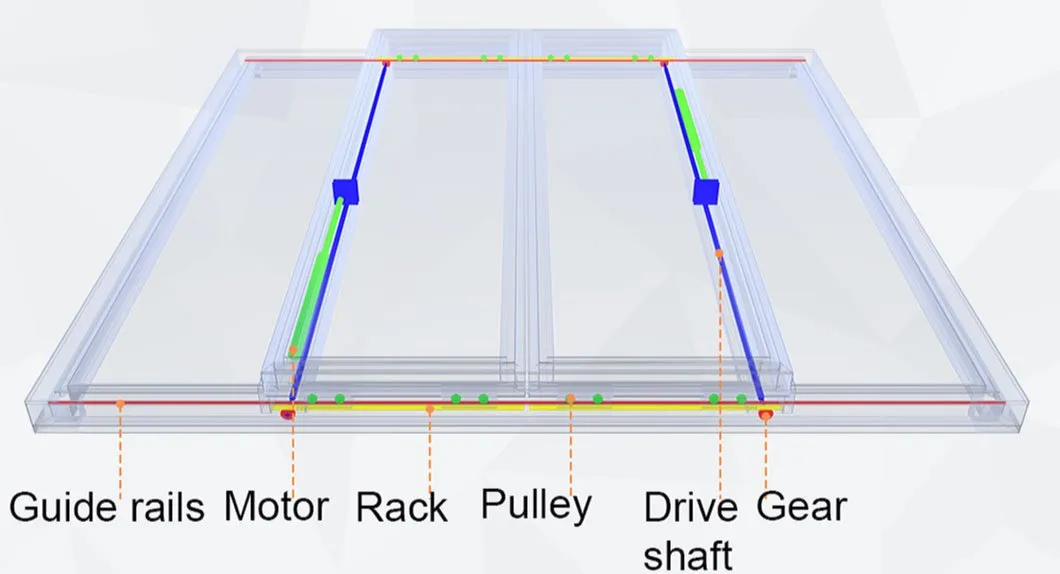

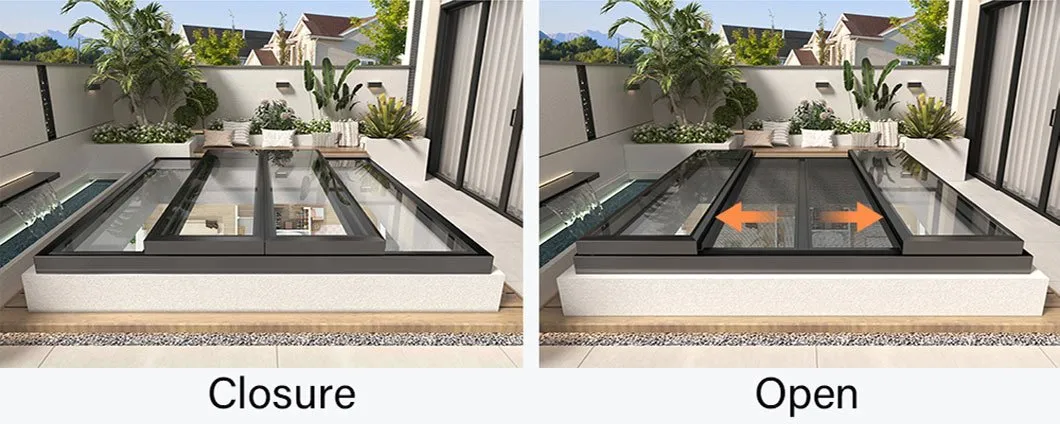

The tubular motor drives the transmission shaft to rotate, and the transmission shaft drives the gear fixed on the window sash to extend and retract. At the same time, the window sash uses a silent pulley and runs smoothly along the rack on the stainless steel track of the window frame.

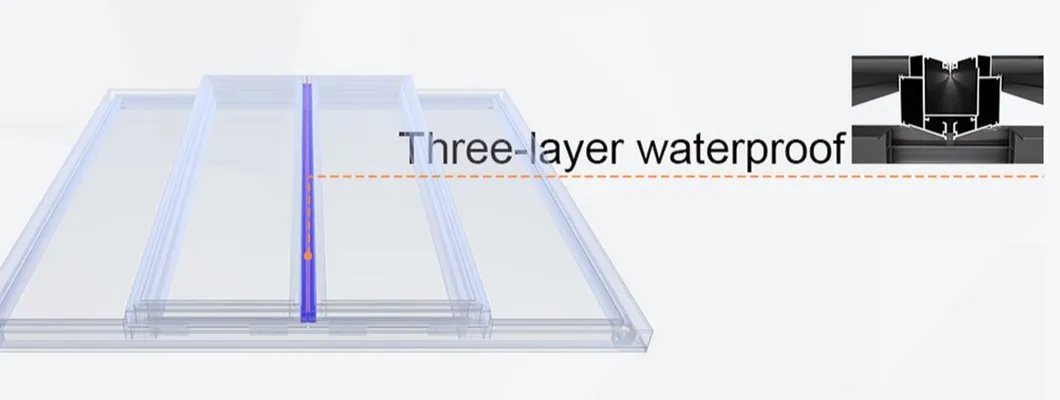

One layer of the window frame is equipped with a rubber strip to provide high-performance waterproofing.
