📋 Basic Specifications
Model NO.

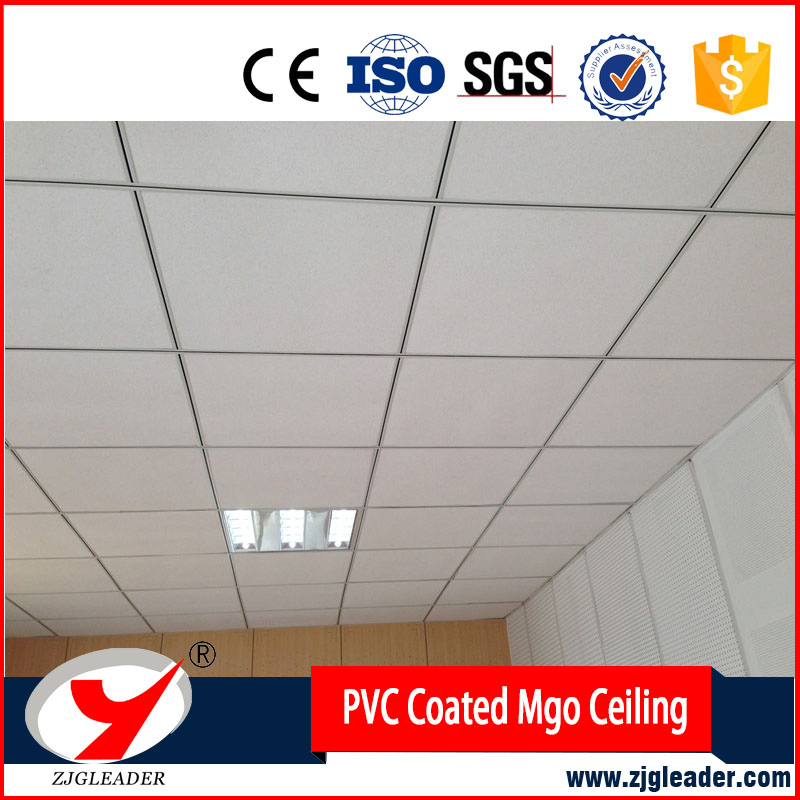

PVC/perforated Gypsum or MGO ceiling
Raw Material
MGO Board, Acrylic Acid Emulsion, Non-Woven Fabric
Function
Fireproof, Heat Insulation, Moisture Proof
Refractory Temp
1000 centi-Grade
Specification
603*603mm, 595*595mm, 600*1200mm

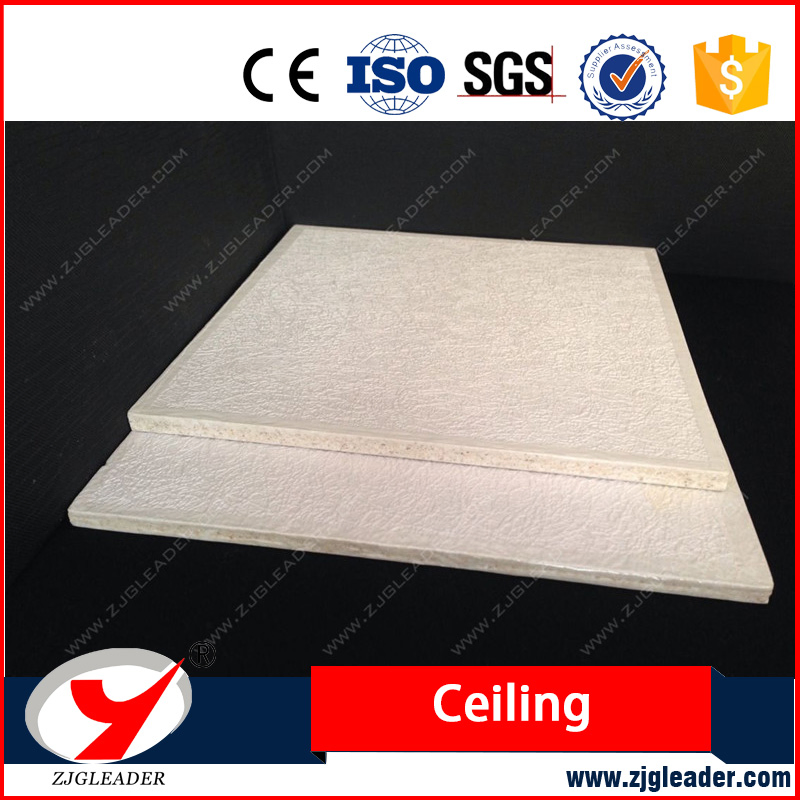

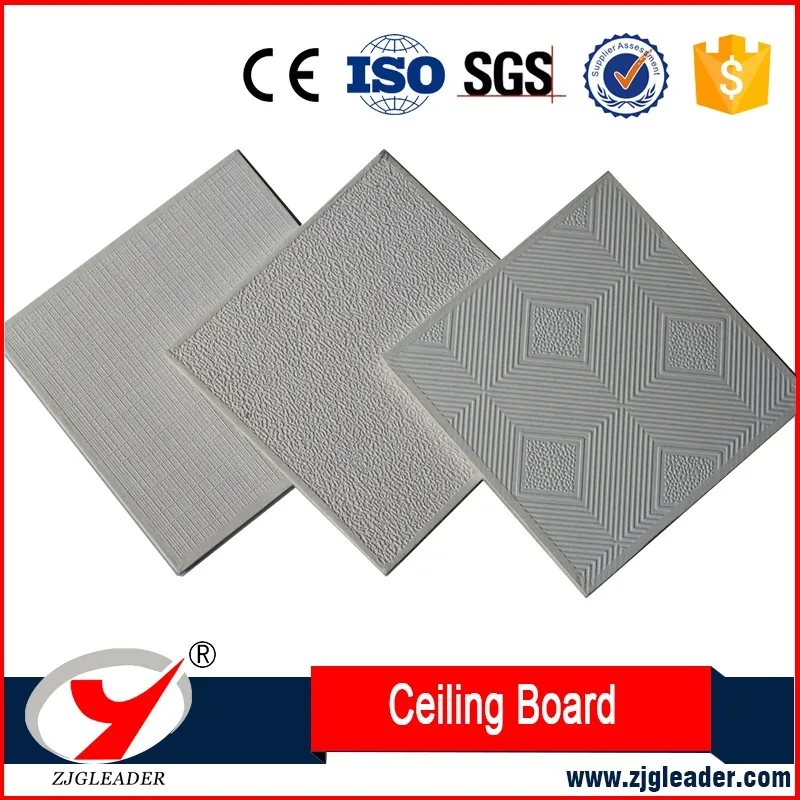

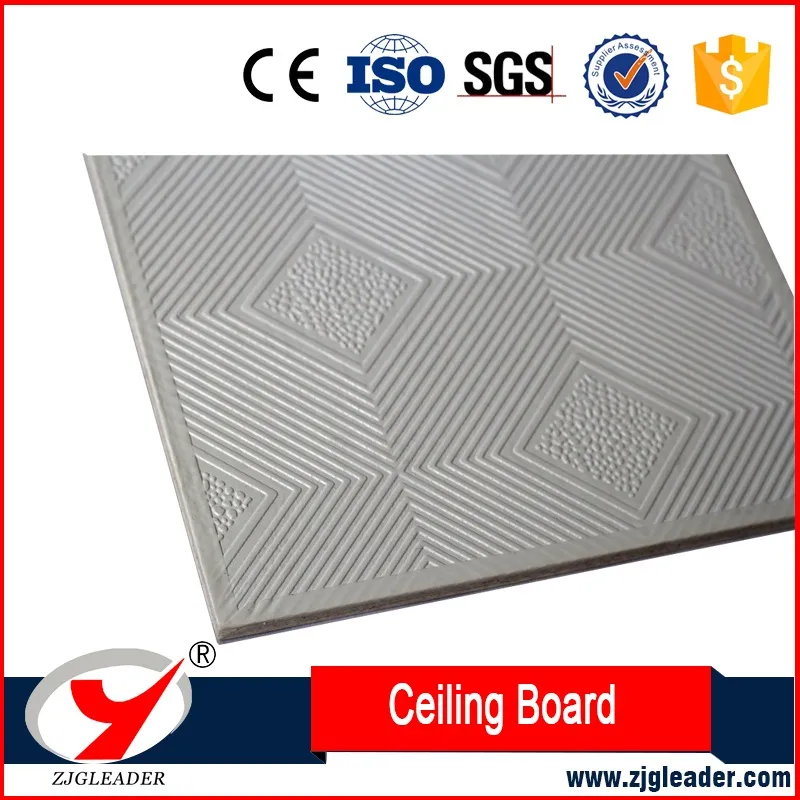

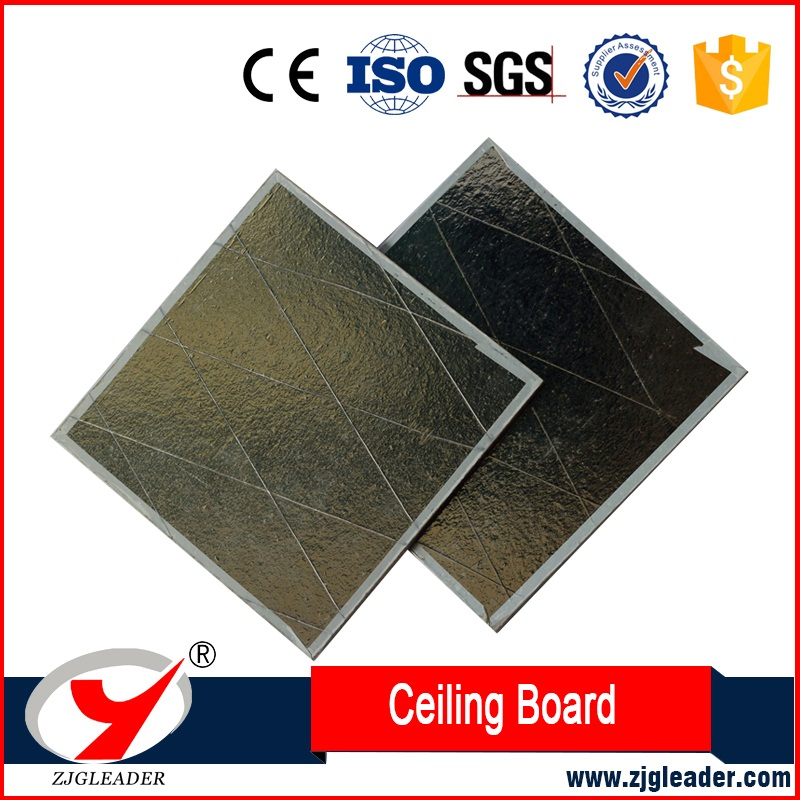

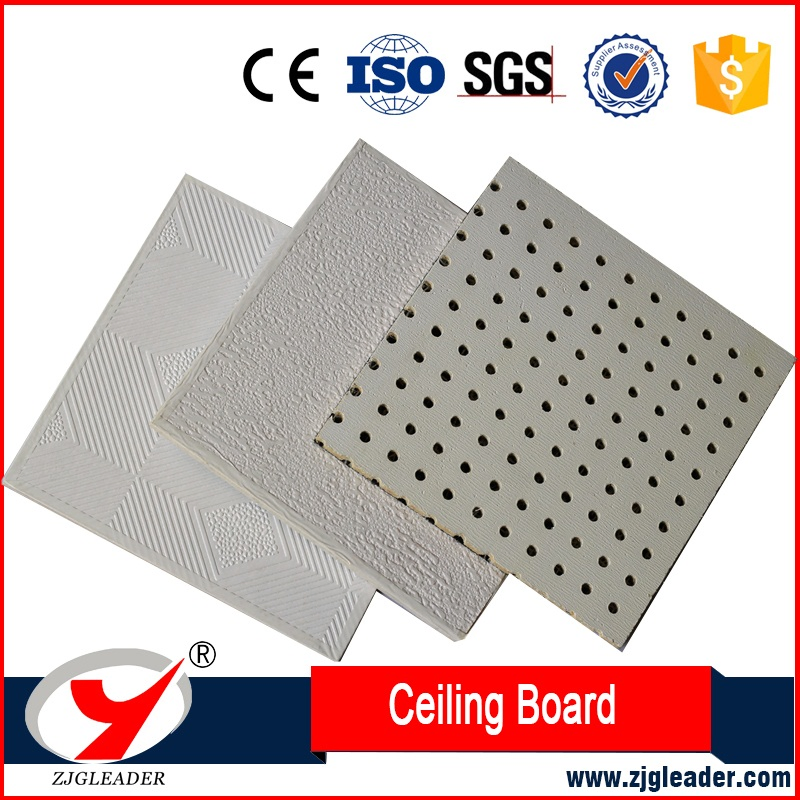

🖼️ Product Gallery

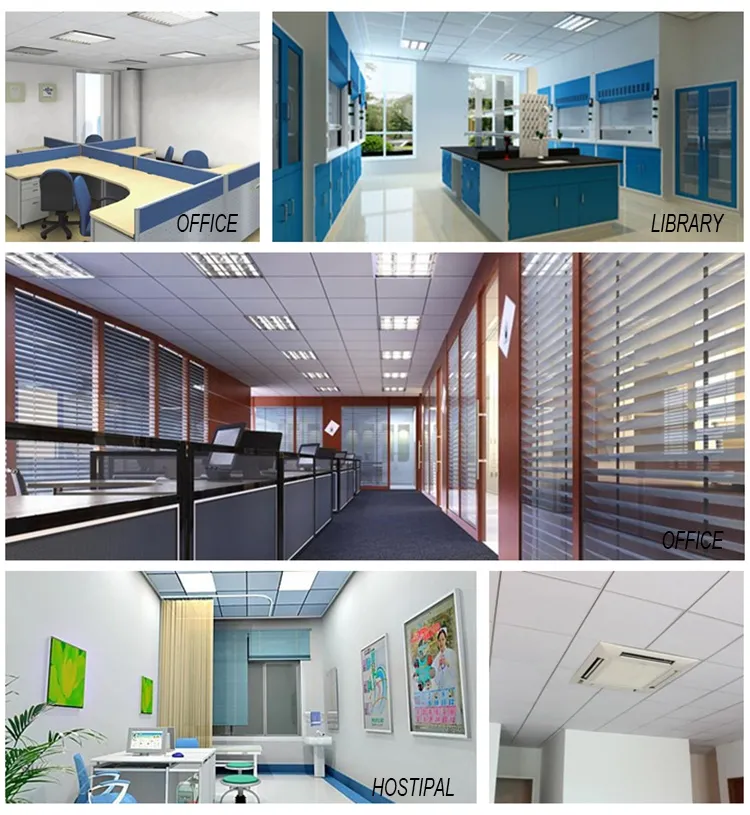

📦 Packing & Application
Packing Method: In cartons and in bulk packing.
📜 Certifications
🛠️ Installation Guide
🔹 Gypsum Ceiling Installation
1. The frame is the light style. It's hung according to strict requirements, then put the ceiling board on the frame.
2. Hang the frame with H light Ceiling Grids. Insert the board into the frame.
3. Hang the frame with T Ceiling Grids, put the non-groovy part on the frame. The groovy part needs the ceiling Grid.
4. Set the plasterboard on the Ceiling Grids. There are 15 plasting points which will be put with the lines and set with nails.
🔹 MGO Ceiling Installation
1. Fixed Baseline & Edge Keel: Determine the horizontal position of the ceiling on the wall. Mark the mark and elastic line. The u-shaped edge keel is fixed with expansion screws (max spacing 600mm).
2. Fixed Hanger: Determine hanging positions based on structure (C-I or C-II) loading requirements. Hangers' maximum horizontal distance is approx 1.2m.
3. Install Keel: Clip hanging parts into upper C-shaped keel. Connect lower C-keel ends to U-side keel. Perpendicularly fix and connect both layers.
4. Install MGO Boards: Adjust the hanging parts to ensure a level horizontal position. Fix MGO plates using self-tapping screws (230mm spacing).
5. Seam Treatment: Use caulking material and seam tape for professional finishing.
❓ FAQ
How long is your delivery time?
Generally about 15-20 days upon receiving the 30% deposit. The accurate time depends on your specific order volume.
Do you provide samples? Is it free or extra?
Yes, we can offer samples free of charge; however, the cost of freight is not included.
What are your terms of payment?
We primarily accept T/T (Telegraphic Transfer) and L/C (Letter of Credit).
Are the ceiling panels fire-resistant?
Yes, our MGO and Gypsum boards are Grade A fireproof materials, capable of withstanding refractory temperatures up to 1000 centi-grade.
What are the main functions of these panels?
Our panels are designed for multiple functions including fireproofing, heat insulation, and moisture resistance, making them ideal for interior roofing.
Are your materials environmentally friendly?
Absolutely. All materials used are non-asbestos and eco-friendly, ensuring safety for building interiors and occupants.
