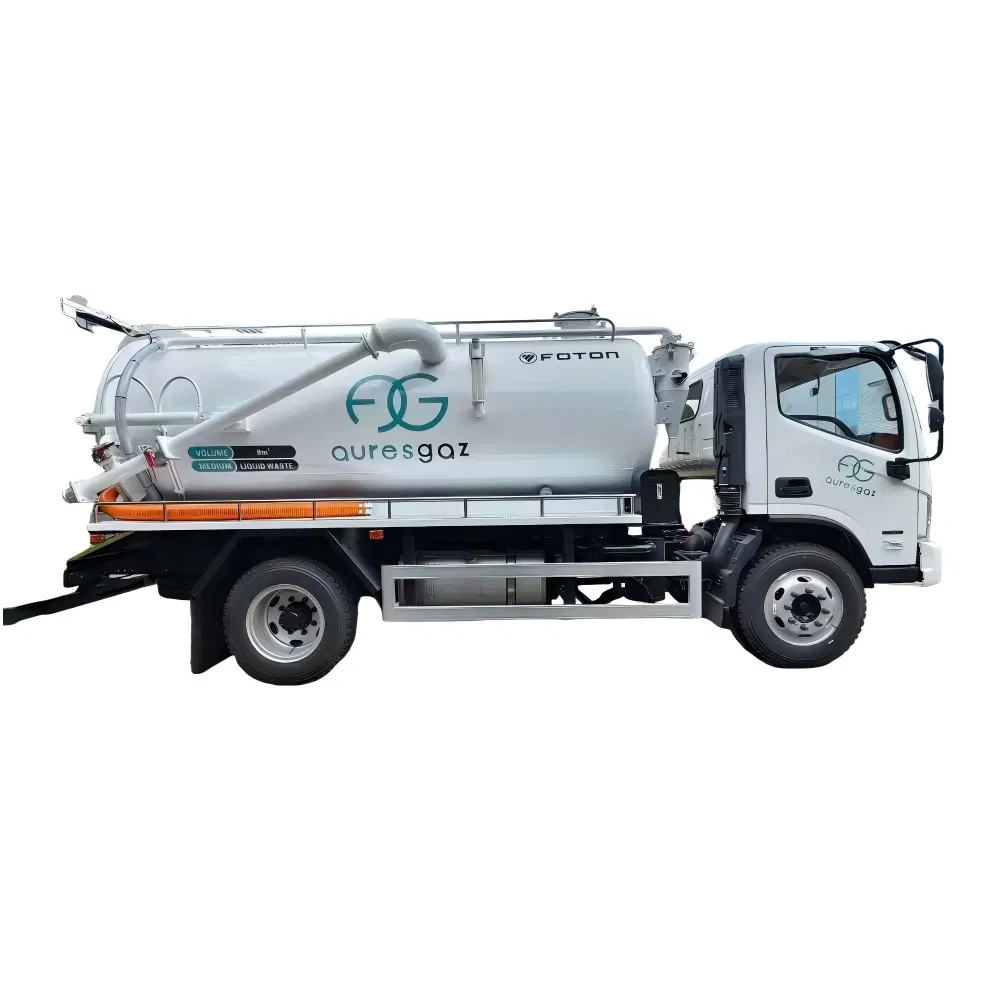

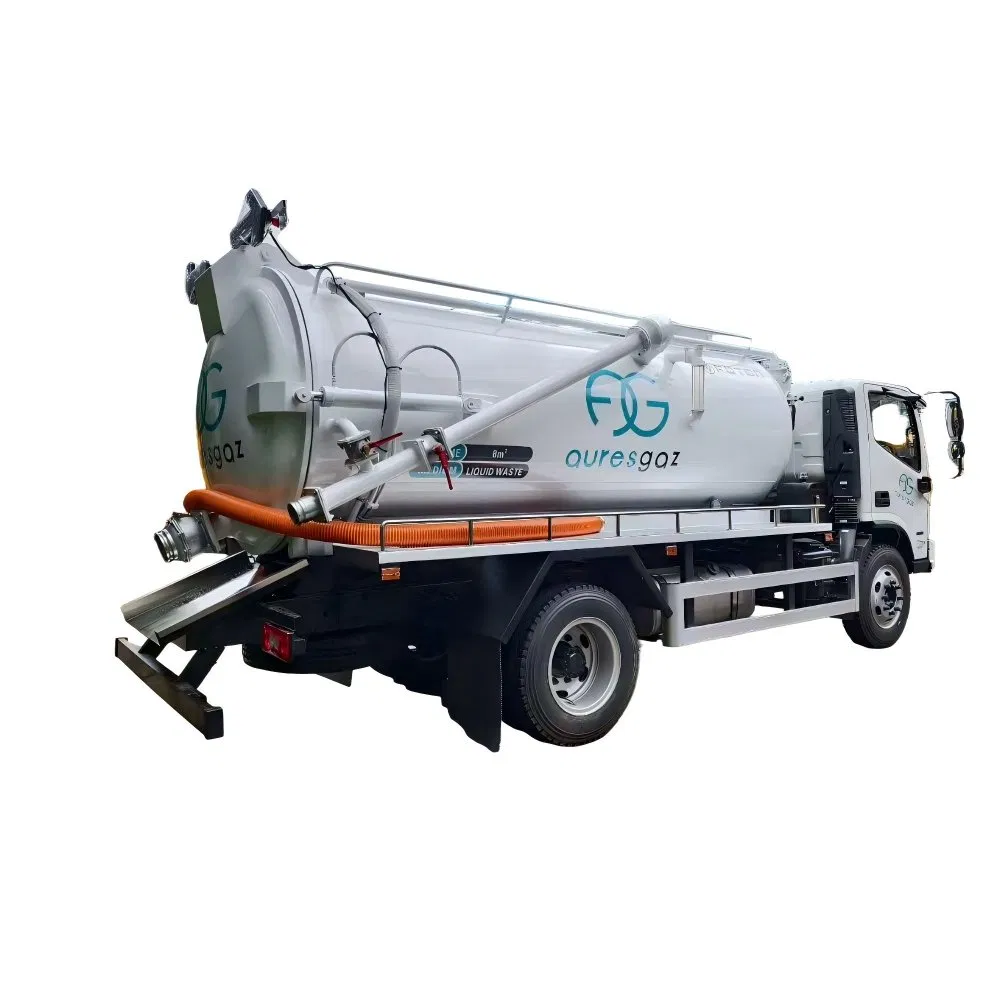

4X2 Neighborhood Sewage Suction Truck for Household Pipeline Cleaning
4X2 Neighborhood Sewage Suction Truck for Household Pipeline Cleaning
4X2 Neighborhood Sewage Suction Truck for Household Pipeline Cleaning
4X2 Neighborhood Sewage Suction Truck for Household Pipeline Cleaning
4X2 Neighborhood Sewage Suction Truck for Household Pipeline Cleaning
1 / 5
4X2 Neighborhood Sewage Suction Truck for Household Pipeline Cleaning
4X2 Neighborhood Sewage Suction Truck for Household Pipeline Cleaning
4X2 Neighborhood Sewage Suction Truck for Household Pipeline Cleaning
4X2 Neighborhood Sewage Suction Truck for Household Pipeline Cleaning
4X2 Neighborhood Sewage Suction Truck for Household Pipeline Cleaning

4X2 Neighborhood Sewage Suction Truck for Household Pipeline Cleaning

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Sewage Suction Truck Banner
ℹ

Basic Information

Model NO.
SS008
Certification
ISO9000, CCC, TS16949, EPA, EEC, RoHS, CE
Emission Standard
Euro 3
Payload
12t
Transmission
Manual
Fuel Type
Diesel
Tank Volume
8000 Liters
Drive Wheel
4x2
Horsepower
Less Than 150HP
Condition
New
⚙

Product Description

The sewage suction truck is suitable for the suction, discharge, and transportation of sludge, excrement, or chemical sewage tank sludge in sewers, rain wells, septic tanks, and various ditches. It is designed for operations in small streets, communities, and industrial sites such as oil refining, steelmaking, and chemical industries.

Our sewage suction tank capacities range from 3,000 liters to 33,000 liters to meet various requirements.

★

Key Features

  • High-Performance Suction: Equipped with well-known vacuum pump brands offering large flow rates and long suction ranges.
  • Powerful Cleaning: Effectively sucks particles smaller than the diameter of the suction pipe.
  • Efficiency: Integrates suction, rotating filtering, and self-draining functions to reduce vehicle trips.
  • Hydraulic Operation: Cylinder vacuum tank can be lifted hydraulically to 40-45 degrees; rear door opens/closes hydraulically.
  • Safety System: Overfill system with music horn prevents pump damage when the tank is full.
  • Durable Materials: Options include Carbon steel (Q235A), stainless steel (Q304/Q316L), or PE lined steel.

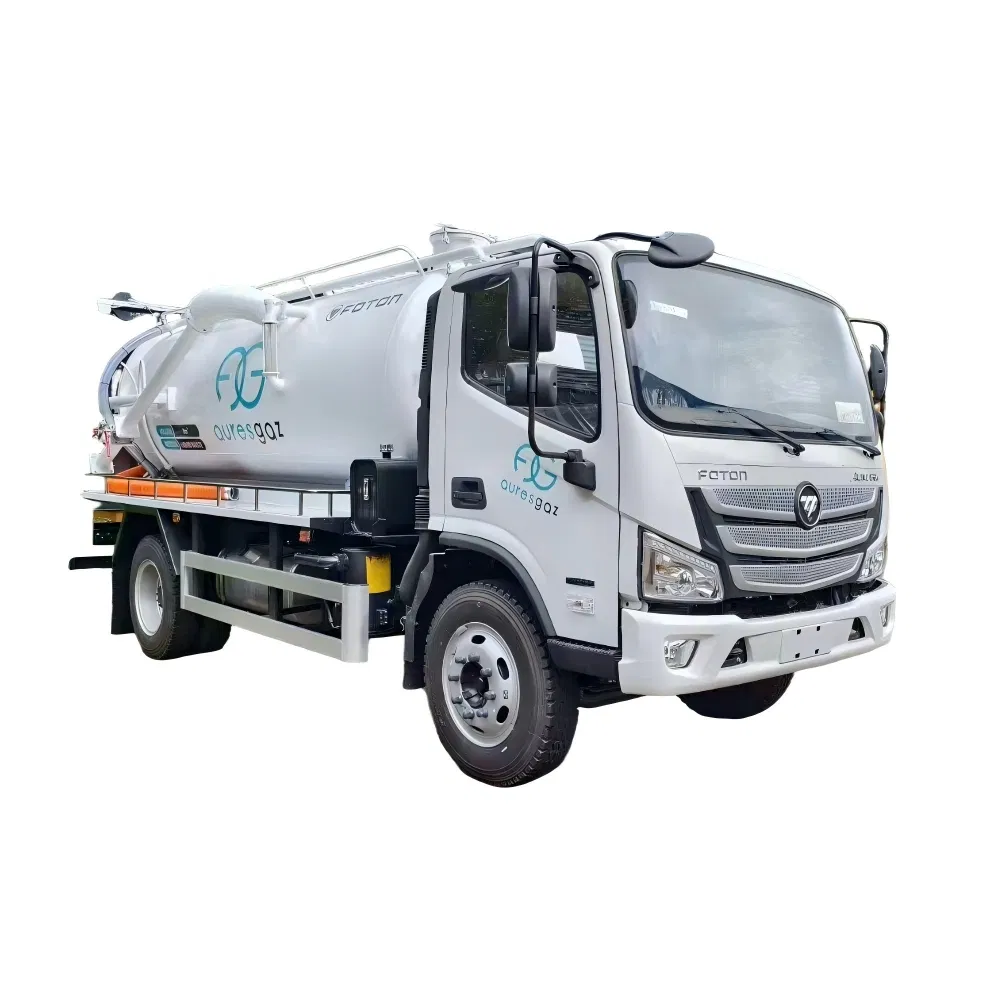

Truck View 1

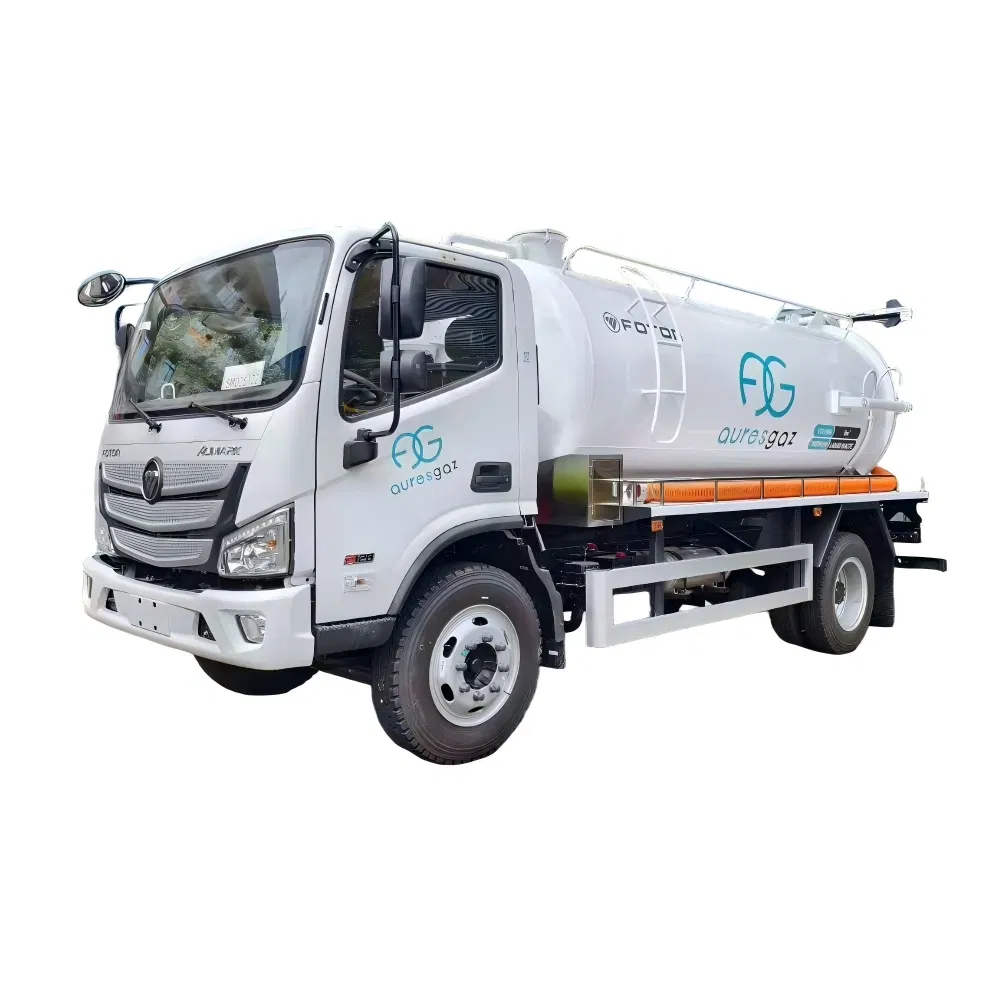

Truck View 2
Truck View 3
📋

Technical Specifications

Chassis Parameters
Drive Mode4X2
Vehicle BrandFoton
Gearbox6 Speed Manual Transmission
Tyre10.00R20
Wheelbase3800 mm
Max Speed100 Km/h
Gross Weight11995 kg
Up-body Parameters
Tank Volume8 m³
Tank Material6mm Carbon Steel Q235
Vacuum PumpChinese or Italy Brand Options
Suction Pipe8 Meters
Main PerformanceSuction time ≤ 5min, effective range ≥ 8m

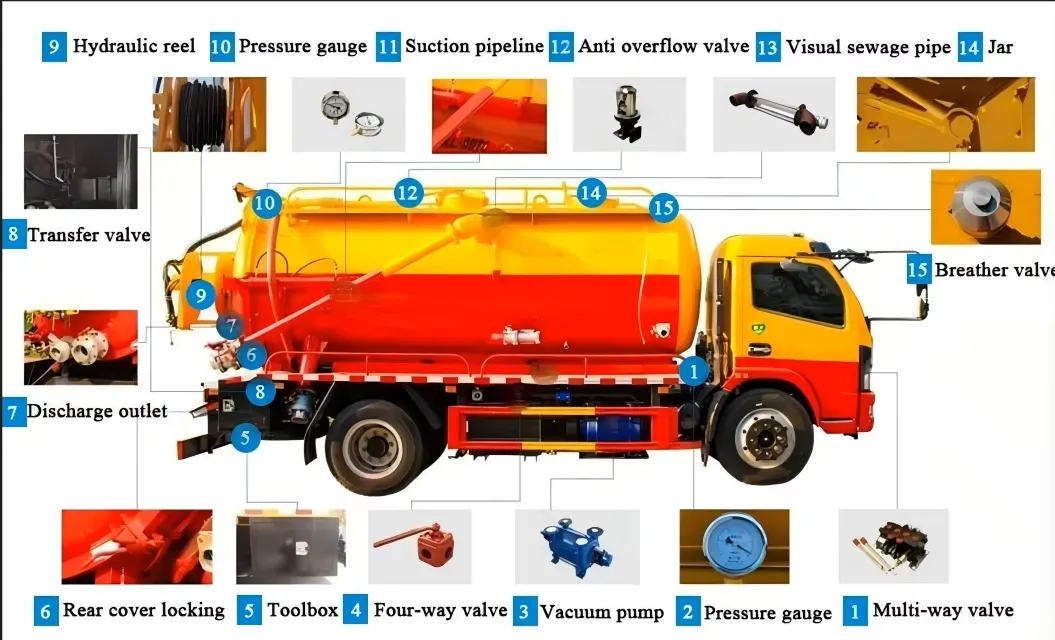

Truck Detail 1

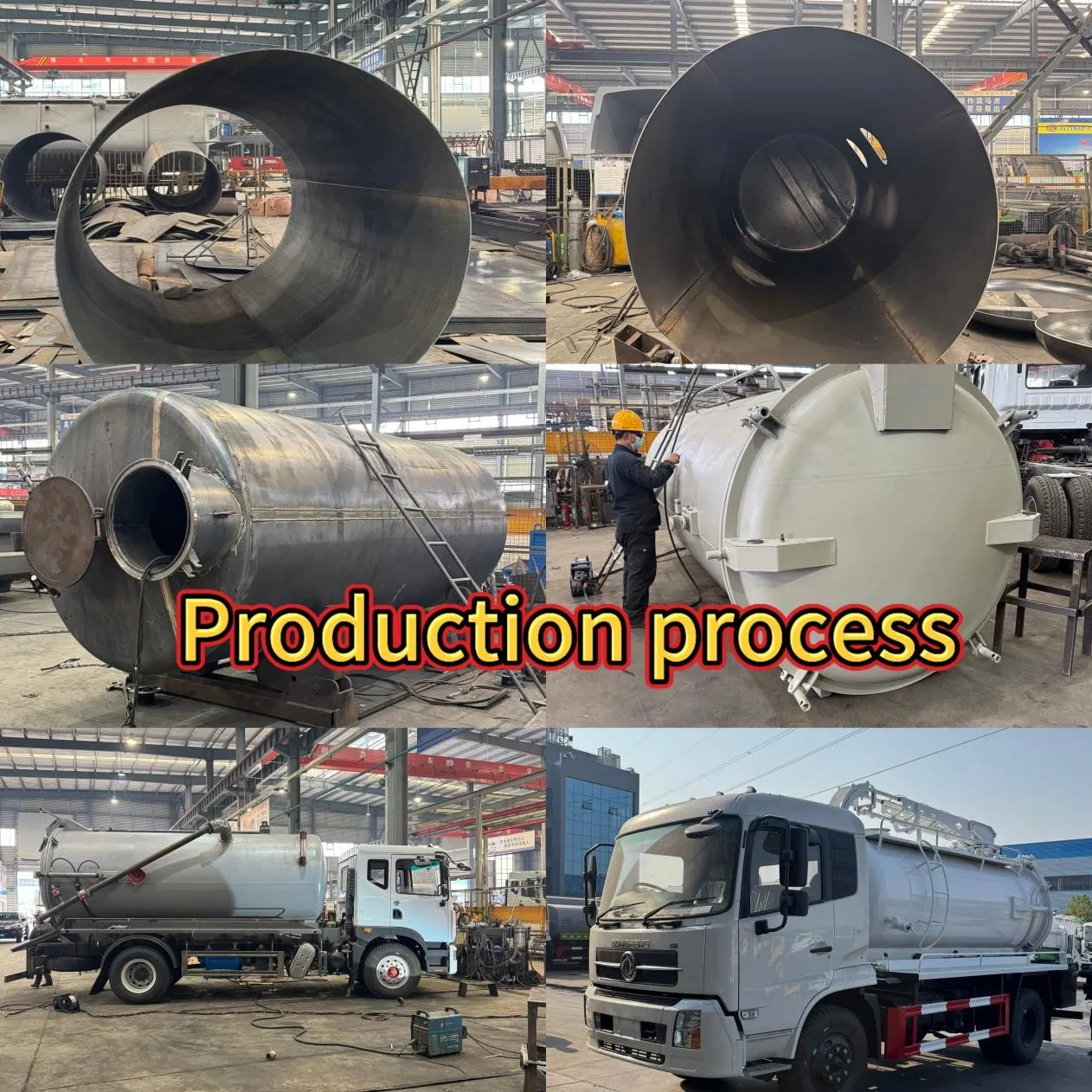

Truck Detail 2
🚛

Product Display

Main Products Line

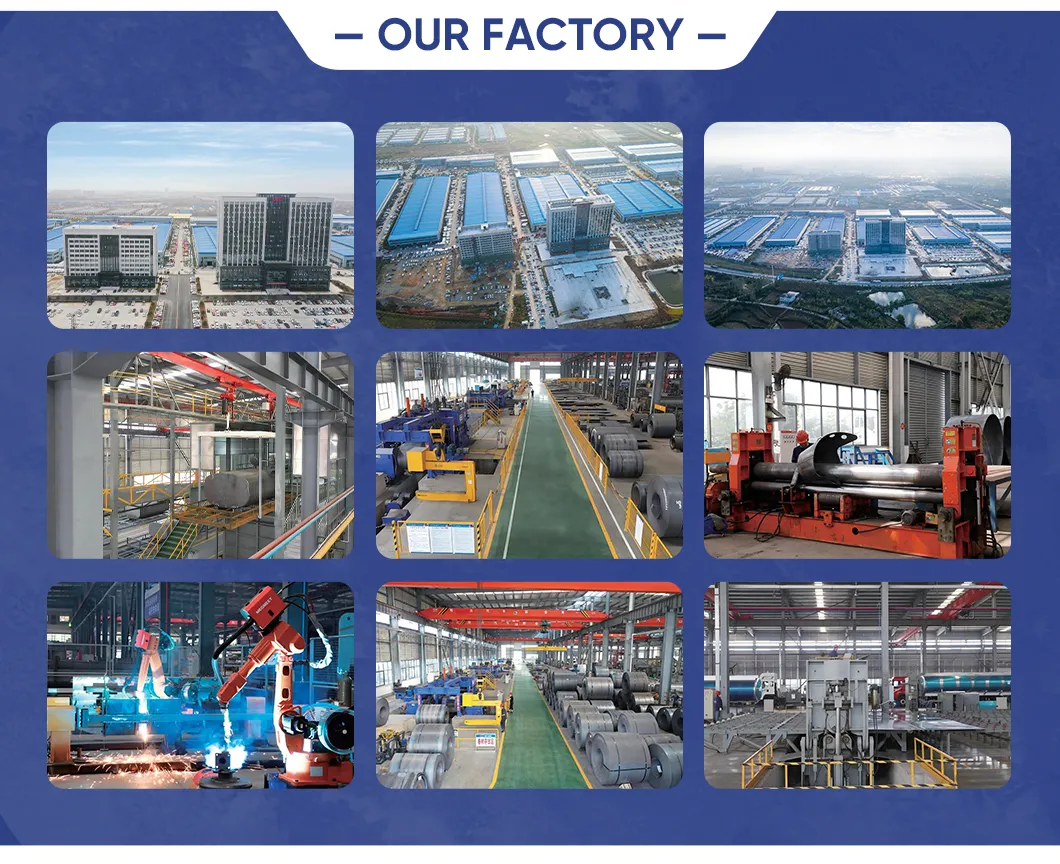

Production Facility
🛠

Our Services & Certifications

Service Process
Certificates
🚢

Packaging & Shipping

Shipping Methods
❓

Frequently Asked Questions

1. What is the primary function of a sewage suction truck?
It is designed for the suction, transportation, and discharge of sludge, waste, and chemical sediments from sewers, septic tanks, and industrial ditches.
2. What tank capacities are available for these trucks?
We offer a wide range of effective volumes, typically ranging from 3,000 liters up to 33,000 liters, depending on the chassis and requirements.
3. What materials are used for the vacuum tanks?
Tanks are commonly made from high-quality Carbon Steel (Q235), but Stainless Steel (304/316L) or PE-lined steel options are available for corrosive materials.
4. How long does it take to suction a full tank?
For standard models like the 8m³ truck, the suction time is generally less than or equal to 5 minutes with an effective range of over 8 meters.
5. Can the tank be tilted for easier unloading?
Yes, the vacuum tanks are equipped with a hydraulic lifting system that can tilt the tank to 40-45 degrees for efficient discharge.
6. What safety features are included to protect the vacuum pump?
Our trucks include an overfill protection system with a music horn and separators to prevent sewage from entering and damaging the vacuum pump.
